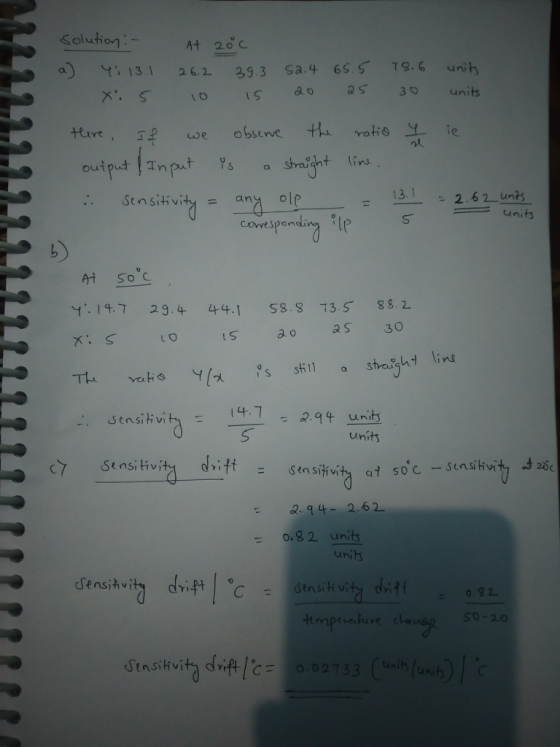

(a) An instrument is calibrated in an environment at a temperature of 20 °C and the following output readings y are obtained for various input values x:
Determine the measurement sensitivity at 20 °C. (
Y: 13.1 26.2 39.3 52.4 65.5 78.6
X: 5 10 15 20 25 30
b) When the instrument is subsequently used in an environment at a temperature of 50 °C, the input/output characteristics changes to the following:
Y: 14.7 29.4 44.1 58.8 73.5 88.2
X: 5 10 15 20 25 30
c.) Determine the sensitivity drift per degree Celsius due to the change in ambient temperature of 30 C.
