A simple dynamic system is modeled by a single degree of freedom with m = 10...

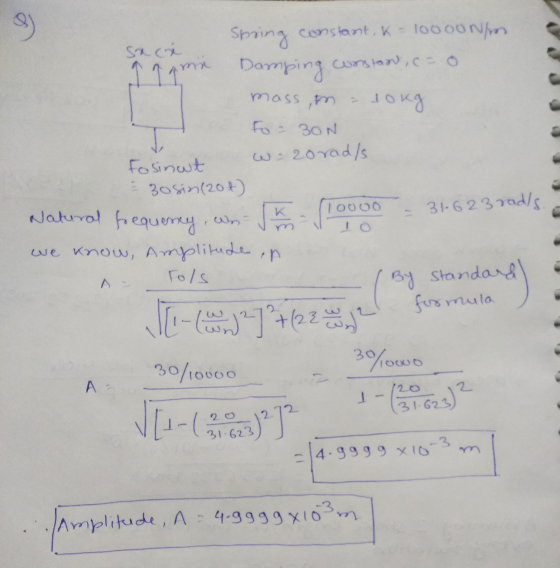

A simple dynamic system is modeled by a single degree of freedom with m = 10 kg and Kequivalent = 100 N/cm is subjected to a sinusoidal forcing function F(t)=30sin(20t) in Newtons. Calculate the amplitude in SI units.
Homework Answers
Add Answer to:
A simple dynamic system is modeled by a single degree of freedom
with m = 10...
Consider a single degree of freedom (SDOF) with mass-spring-damper system
Consider a single degree of freedom (SDOF) with mass-spring-damper system subjected to harmonic excitation having the following characteristics: Mass, m = 850 kg; stiffness, k = 80 kN/m; damping constant, c = 2000 N.s/m, forcing function amplitude, f0 = 5 N; forcing frequency, ωt = 30 rad/s. (a) Calculate the steady-state response of the system and state whether the system is underdamped, critically damped, or overdamped. (b) What happen to the steady-state response when the damping is increased to 18000 N.s/m? (Hint: Determine...
3. Consider the equation of motion of a single-degree-of-freedom system: mi + ci + kx =...
3. Consider the equation of motion of a single-degree-of-freedom system: mi + ci + kx = F(1) Derive the condition that leads to divergent oscillations in each of the following cases: (a) when the forcing function is proportional to the displacement, F(t) = F,x(t); when the forcing function is proportional to the velocity, F(t) = Fox(t); and (c) when the forcing function is proportional to the acceleration, F(t) = F,x(t).
Problem 2 (25 points): Consider an undamped single-degree-of-freedom system with k = 10 N/m, 41 =...
Problem 2 (25 points): Consider an undamped single-degree-of-freedom system with k = 10 N/m, 41 = 10 N 92 = 8N, and m = 10 kg subjected to the harmonic force f(t) = qı sin(vt) + 92 cos(vt), v = 1 rad/ sec. Assume zero initial conditions (0) = 0 and c(0) = 0. Derive and plot the analytical solution of the displacement of the system. mm m = f(t) WWWWWWWW No friction Problem 2 Problem 3 (30 points): Using...
Given an underdamped single-degree-of-freedom system with m 10 kg. c = 20 Ns/m. k = 4000...
Given an underdamped single-degree-of-freedom system with m 10 kg. c = 20 Ns/m. k = 4000 N/m. Assuming zero initial conditions Xo-Xo-0. response of the system to a unit step function f(t) - 1. itcx +Kx) steady-state value of the unit step response.
Q.1 (35 pts) Find the response of a single degree of freedom system with m=10kg, c=20N-5/m,...
Q.1 (35 pts) Find the response of a single degree of freedom system with m=10kg, c=20N-5/m, K-4000N/m, when subjected to an external force F(t)=100Cos(ot) a. Amplitude of vibrations when o=10 rad's b. Phase difference when 0-10 rad/s C. The frequency of disturbing force corresponding to resonance d. The amplitude of vibrations at resonance frequency.
By referring to Figure Q2, a vehicle is modeled as a single-degree-of-freedom system vibrating in the...
By referring to Figure Q2, a vehicle is modeled as a single-degree-of-freedom system vibrating in the vertical direction. It is driven along a road whose profile varies sinusoidally. The distance from peak to trough is 0.20 m and distance along the road between the peaks in 37 m. If the natural frequency of the vehicle is 2.10 Hz and damping ratio of shock absorbed is 0.18 (a) Determine the amplitude of vibration of the vehicle at a speed of 55 km/hr. (b)...
2) A single degree of freedom system is excited by sinusoidal force. Determine the damping ratio...
2) A single degree of freedom system is excited by sinusoidal force. Determine the damping ratio of the system if the amplitude of displacement at resonance is 2 in, the exciting frequency is one- tenth of the natural frequency and the amplitude of displacement at resonance is 0.2 in a) 0.25 Hz b) 0.5 Hz c) 0.0025 Hz d) 005 Hz
2) A single degree of freedom system is excited by sinusoidal force. Determine the damping ratio of the system...
Can I get help with this 2. (20 points) The damped single degree-of-freedom mass-spring system shown...
Can
I get help with this
2. (20 points) The damped single degree-of-freedom mass-spring system shown below has a mass m- 20 kg and a spring stiffness coefficient k 2400 N/m. a) Determine the damping coefficient of the system, if it is given that the mass exhibits a response with an amplitude of 0.02 m when the support is harmonically excited at the natural frequency of the system with an amplitude Yo-0.007 m b) Determine the amplitude of the dynamic...
13. Briefly describe how a two degree of freedom system can be made to vibrate in one of its pure...
13. Briefly describe how a two degree of freedom system can be made to vibrate in one of its pure modes. sャ 2. (a) Sketch the amplitude ratio and phase angle for damping of 0.01 and 0.3, and indicate the peak amplitude values. Name the axes with correct numerica (b) Compare this amplitude diagram with a similar one that corresponds to base excitation, emphasizing t a single degree of freedom system subjected to harmonic force with phasizing the differences (15)...
path Wordsso QUESTION 7 A single degree of freedom system is excited by a harmonic force...
path Wordsso QUESTION 7 A single degree of freedom system is excited by a harmonic force with amplitude 167 N at the frequency ratio 0.9. The amplitude of response is measured as 0.05 m. If the equivalent stiffness of the system is 12 kN/m, calculate the damping ratio of this system. Give your answer with 3 digits after the decimal point. Click Save and submit to save and submit. Click Save answers to save all answers e 9 0 *...
3. Consider the equation of motion of a single-degree-of-freedom system: mi + ci + kx = F(1) Derive the condition that leads to divergent oscillations in each of the following cases: (a) when the forcing function is proportional to the displacement, F(t) = F,x(t); when the forcing function is proportional to the velocity, F(t) = Fox(t); and (c) when the forcing function is proportional to the acceleration, F(t) = F,x(t).
Problem 2 (25 points): Consider an undamped single-degree-of-freedom system with k = 10 N/m, 41 = 10 N 92 = 8N, and m = 10 kg subjected to the harmonic force f(t) = qı sin(vt) + 92 cos(vt), v = 1 rad/ sec. Assume zero initial conditions (0) = 0 and c(0) = 0. Derive and plot the analytical solution of the displacement of the system. mm m = f(t) WWWWWWWW No friction Problem 2 Problem 3 (30 points): Using...
Given an underdamped single-degree-of-freedom system with m 10 kg. c = 20 Ns/m. k = 4000 N/m. Assuming zero initial conditions Xo-Xo-0. response of the system to a unit step function f(t) - 1. itcx +Kx) steady-state value of the unit step response.
Q.1 (35 pts) Find the response of a single degree of freedom system with m=10kg, c=20N-5/m, K-4000N/m, when subjected to an external force F(t)=100Cos(ot) a. Amplitude of vibrations when o=10 rad's b. Phase difference when 0-10 rad/s C. The frequency of disturbing force corresponding to resonance d. The amplitude of vibrations at resonance frequency.
2) A single degree of freedom system is excited by sinusoidal force. Determine the damping ratio of the system if the amplitude of displacement at resonance is 2 in, the exciting frequency is one- tenth of the natural frequency and the amplitude of displacement at resonance is 0.2 in a) 0.25 Hz b) 0.5 Hz c) 0.0025 Hz d) 005 Hz
2) A single degree of freedom system is excited by sinusoidal force. Determine the damping ratio of the system...
Can
I get help with this
2. (20 points) The damped single degree-of-freedom mass-spring system shown below has a mass m- 20 kg and a spring stiffness coefficient k 2400 N/m. a) Determine the damping coefficient of the system, if it is given that the mass exhibits a response with an amplitude of 0.02 m when the support is harmonically excited at the natural frequency of the system with an amplitude Yo-0.007 m b) Determine the amplitude of the dynamic...
13. Briefly describe how a two degree of freedom system can be made to vibrate in one of its pure modes. sャ 2. (a) Sketch the amplitude ratio and phase angle for damping of 0.01 and 0.3, and indicate the peak amplitude values. Name the axes with correct numerica (b) Compare this amplitude diagram with a similar one that corresponds to base excitation, emphasizing t a single degree of freedom system subjected to harmonic force with phasizing the differences (15)...
path Wordsso QUESTION 7 A single degree of freedom system is excited by a harmonic force with amplitude 167 N at the frequency ratio 0.9. The amplitude of response is measured as 0.05 m. If the equivalent stiffness of the system is 12 kN/m, calculate the damping ratio of this system. Give your answer with 3 digits after the decimal point. Click Save and submit to save and submit. Click Save answers to save all answers e 9 0 *...
