A rectangular beam is bent during static loading. What is the shape of the stress distribution along the length of the beam?

A. Linear

B. Quadratic

C. Exponential

D. Hyperbolic

engineering Civil-Engineering

Answer 1

Answer #1

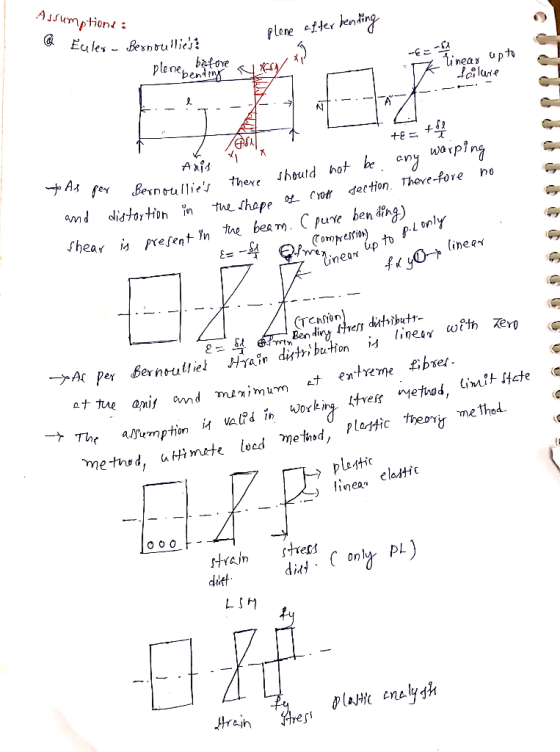

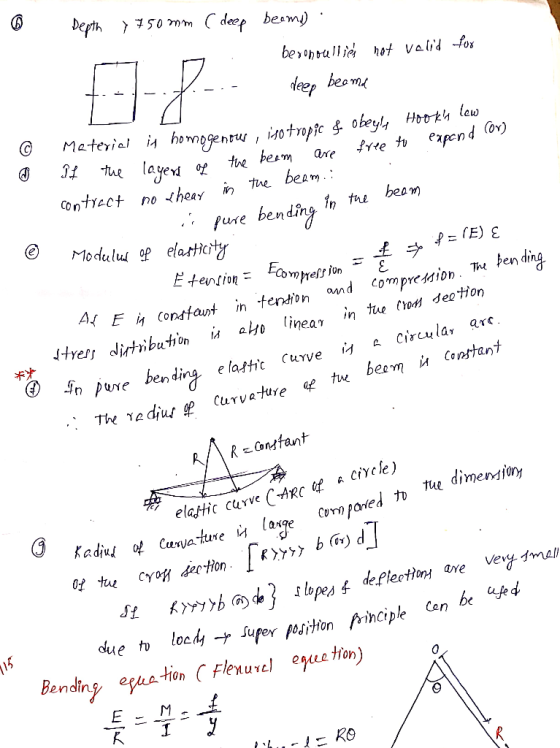

Note: All assumptions are related to Theory of Simple Bending. Read all assumptions carefully.

The answer is Linear stress distribution . Strain is linear variation and stress also linear variation.

Answer: A
