4. Given a current of 1.2 A; a coil radius of 0.17 m; and N=130, then...

4. Given a current of 1.2 A; a coil radius of 0.17 m; and N=130, then what is the strength of the magnetic field in milliTeslas?
(Use three sig figs. or write N/A if there is not enough information.)

5. Let's say that you are given a magnetic field
B = 0.0026 Teslas.

You also have an average V / d 2 = 28,255 V/m 2;
what is the value for e / m ?
units are suppressed
(Report your answer with three sig. figs. and use scientific notation "E". ie. 1.98E11)

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

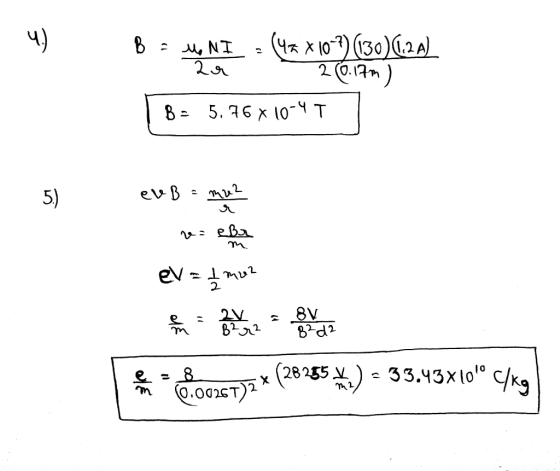

Answer #1

0 0
