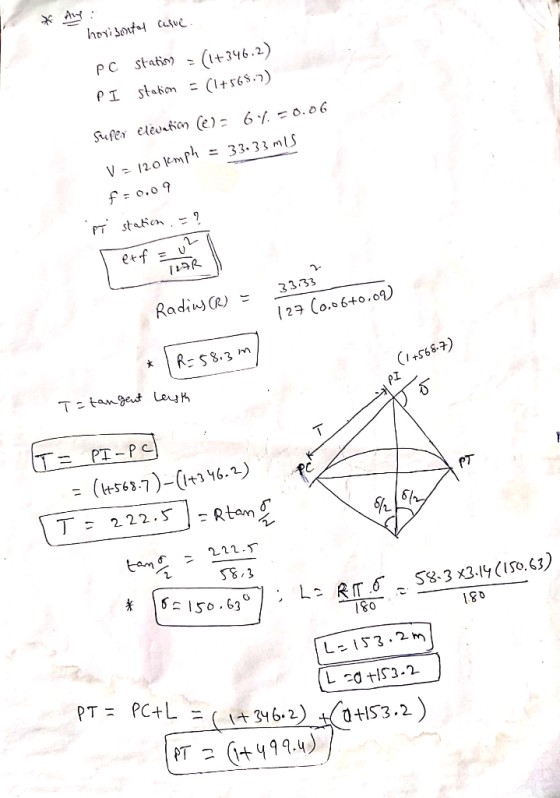

A horizontal curve on a single-lane highway has its PC at station 1+346.200 and its PI...
A horizontal curve on a single-lane highway has its PC at station 1+346.200 and its PI at station 1+568.70. The curve has a super elevation of 6.0% and is designed for 120 km/h. The limiting value for coefficient of side friction at 120 km/h is 0.09. What is the station of the PT?
Homework Answers
Add Answer to:
A horizontal curve on a single-lane highway has its PC at
station 1+346.200 and its PI...
2. A horizontal curve on a 4 lane highway has a super elevation of 6% and...
2. A horizontal curve on a 4 lane highway has a super elevation of 6% and a central angle of 40 degrees. The PT of the curve is at station 322+50 and PI is at 320+08. The road has 10 feet lanes, 2 lanes in each direction, no median, and 8 feet shoulders on both sides. What is the highest safe speed (round to 5mi/hr increments) and what is the station for PC?
Can you please do this questions? A horizontal curve on a two-lane highway (12 ft lanes)...
Can
you please do this questions?
A horizontal curve on a two-lane highway (12 ft lanes) has a PC at station 123+80 and PT as station 129+60. The central angle is 30 degree, the super-elevationis 0.06 and 22 ft is cleared (for sight distance) from the inside edge of the innermost lane. Determine a maximum sate speed (assuming current design standards) to the nearest 5 mi/h.
A developer is having a single-lane raceway constructed with a 120 mph design speed. A curve on the raceway has a radius of 1200 ft, a central angle of 30 degrees, and PI stationing at 1125+10. I...
A developer is having a single-lane raceway constructed with a 120 mph design speed. A curve on the raceway has a radius of 1200 ft, a central angle of 30 degrees, and PI stationing at 1125+10. If the design coefficient of side friction is 0.20, determine the superelevation required at design speed (do not ignore the normal component of the centripetal force). Also, compute the degree of curve, length of curve, and stationing of the PC and PT. 4.
A...
Part A. The following information is for a proposed horizontal curve in a new subdivision: PI...
Part A. The following information is for a proposed horizontal curve in a new subdivision: PI Station: 12+40.00 R-572.96 feet Deflection angle A-12.30 What is the Station of PT? PI PC PT Part B. An existing highway has a historic site located at the PT of an existing curve with a PI located at Station 80+00, an extemal angle of 65°, and a radius of 1,200 ft. The curve must be relocated, moving the PI to Station 78+00. The external...
(2 points) A horizontal curve on a two-lane highway (12-ft lanes) is designed for 55 mi/h...
(2 points) A horizontal curve on a two-lane highway (12-ft lanes) is designed for 55 mi/h with a 6% superelevation. The central angle of the curve is 50 degrees and the PI is at station 212+67. What is the station of the PT? Determine the length of superelevation runoff and tangent runout for the associated curve transition section (assume a normal, 2% crown). Assume perception-reaction time of 2.5 sec and the deceleration rate for braking (a) is 11.2 ft/sec2
A horizontal curve is designed for a two-lane road in mountainous terrain. The following data is...
A horizontal curve is designed for a two-lane road in mountainous terrain. The following data is known: Deflection angle: 40 degrees Tangent length: 436.76 feet Station of PI: 2700 10.65 fs = 0.12 e 0.08 Determine the following (a) Design speed= 60 mph (b) Station of the PC 2695+73.89 (c) Station of the PT = 2704+11.64 (d) draw the superelevation attainment detail drawing, show all important stations and lengths. wwwwnO Just Solve part (d)
A horizontal curve is designed for...
A curved highway has only one lane with a centerline radius of 800 ft. A building...
A curved highway has only one lane with a centerline radius of 800 ft. A building is located 25 ft. from the centerline. The road is level. Take the coefficient of braking friction as 0.36 and perception-reaction time as 2.5 seconds. A.Determine the appropriate speed limit on the curve to ensure stopping sight distance B.Determine the rate of super-elevation (assume that the coefficient of side frictionis0.15)
•An engineer is looking to determine the PI of a horizontal curve along a highway segment...
•An engineer is looking to determine the PI of a horizontal curve along a highway segment comprised of an equal-tangent sag curve and the horizontal curve with the same design speed. The horizontal curve has a superelevation of 8%, central angle of 30 degrees and a PT at Station 302 + 20. The road has two 11-ft lanes (one in each direction). As for the sag vertical curve, it is known that its initial grade is –1.8% and a positive...
Determine the SSD for this curve. Calculate the radius of the curve, the length, and stations for PC and PT 3.39 On a r...
Determine the SSD for this curve. Calculate the radius of the
curve, the length, and stations for PC and PT
3.39 On a roadway with two 12-ft lanes, a horizontal curve is designed for 35 mi/h with a 4% superelevation. It is known that Δ-20, The PI of the curve is at station 30 + 00. What is the station of the PT of the curve?
3.39 On a roadway with two 12-ft lanes, a horizontal curve is designed for...
A horizontal curve for a new highway has the following information: • • • Central angle...
A horizontal curve for a new highway has the following information: • • • Central angle (or A) = 60° Radius until the highway centerline (or R) = 600 ft PI station =(12+00) Calculate the station of the PT.
2. A horizontal curve on a 4 lane highway has a super elevation of 6% and a central angle of 40 degrees. The PT of the curve is at station 322+50 and PI is at 320+08. The road has 10 feet lanes, 2 lanes in each direction, no median, and 8 feet shoulders on both sides. What is the highest safe speed (round to 5mi/hr increments) and what is the station for PC?
Can
you please do this questions?
A horizontal curve on a two-lane highway (12 ft lanes) has a PC at station 123+80 and PT as station 129+60. The central angle is 30 degree, the super-elevationis 0.06 and 22 ft is cleared (for sight distance) from the inside edge of the innermost lane. Determine a maximum sate speed (assuming current design standards) to the nearest 5 mi/h.
A developer is having a single-lane raceway constructed with a 120 mph design speed. A curve on the raceway has a radius of 1200 ft, a central angle of 30 degrees, and PI stationing at 1125+10. If the design coefficient of side friction is 0.20, determine the superelevation required at design speed (do not ignore the normal component of the centripetal force). Also, compute the degree of curve, length of curve, and stationing of the PC and PT. 4.
A...
Part A. The following information is for a proposed horizontal curve in a new subdivision: PI Station: 12+40.00 R-572.96 feet Deflection angle A-12.30 What is the Station of PT? PI PC PT Part B. An existing highway has a historic site located at the PT of an existing curve with a PI located at Station 80+00, an extemal angle of 65°, and a radius of 1,200 ft. The curve must be relocated, moving the PI to Station 78+00. The external...
(2 points) A horizontal curve on a two-lane highway (12-ft lanes) is designed for 55 mi/h with a 6% superelevation. The central angle of the curve is 50 degrees and the PI is at station 212+67. What is the station of the PT? Determine the length of superelevation runoff and tangent runout for the associated curve transition section (assume a normal, 2% crown). Assume perception-reaction time of 2.5 sec and the deceleration rate for braking (a) is 11.2 ft/sec2
A horizontal curve is designed for a two-lane road in mountainous terrain. The following data is known: Deflection angle: 40 degrees Tangent length: 436.76 feet Station of PI: 2700 10.65 fs = 0.12 e 0.08 Determine the following (a) Design speed= 60 mph (b) Station of the PC 2695+73.89 (c) Station of the PT = 2704+11.64 (d) draw the superelevation attainment detail drawing, show all important stations and lengths. wwwwnO Just Solve part (d)
A horizontal curve is designed for...
Determine the SSD for this curve. Calculate the radius of the
curve, the length, and stations for PC and PT
3.39 On a roadway with two 12-ft lanes, a horizontal curve is designed for 35 mi/h with a 4% superelevation. It is known that Δ-20, The PI of the curve is at station 30 + 00. What is the station of the PT of the curve?
3.39 On a roadway with two 12-ft lanes, a horizontal curve is designed for...
A horizontal curve for a new highway has the following information: • • • Central angle (or A) = 60° Radius until the highway centerline (or R) = 600 ft PI station =(12+00) Calculate the station of the PT.
