Consider a pressurized turbine transport category aircraft with a cabin pressurized at 0.9 atm and a...

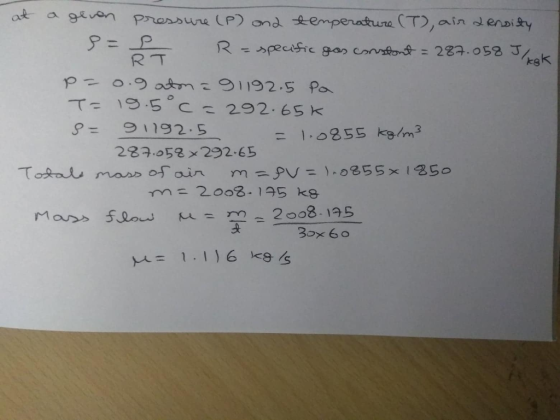

- Consider a pressurized turbine transport category aircraft with a cabin pressurized at 0.9 atm and a temperature of 19.5°C. The cabin has a volume of 1850 m3. If the air in the cabin is completely recirculated every 30 minutes, what is the mass flow of air, in kg/s, through the air conditioning system?
Homework Answers
