A source having an output impedance of 600 Ω is to be connected to a load...

A source having an output impedance of 600 Ω is to be connected to a load so that the terminal voltage drops by no more than 5 percent of its open-circuit value. The minimum value of the load is

(a) 11.4Ω

(b) 32Ω

(c) 570Ω

(d) 70Ω

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

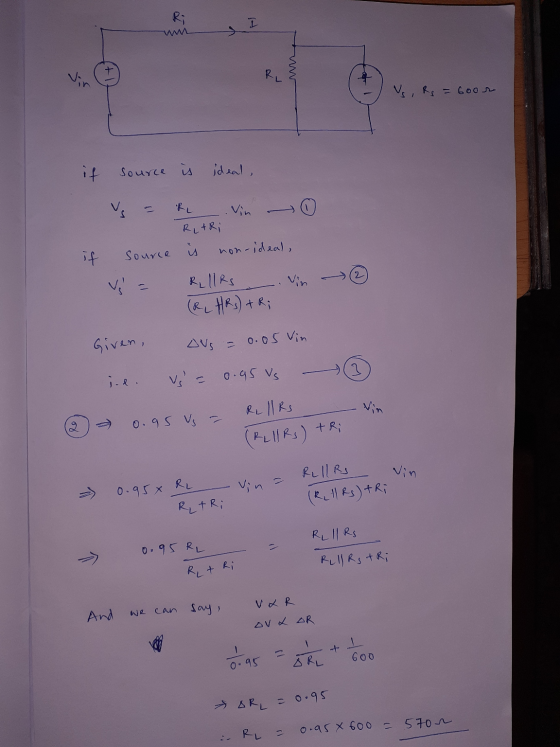

Ans : C) 570 ohms

0 0
Add a comment
