1. Why are state-transition diagrams important? 2. List conditions that cause transitions between states. 3. Name...

Question

Question

1. Why are state-transition diagrams important? 2. List conditions that cause transitions between states. 3. Name...

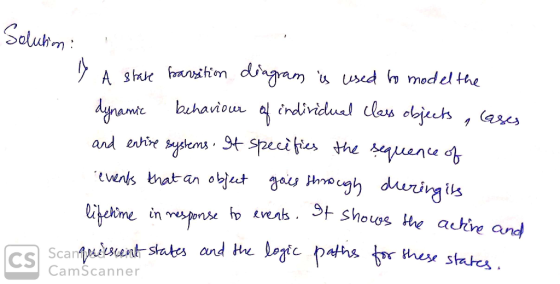

1. Why are state-transition diagrams important?

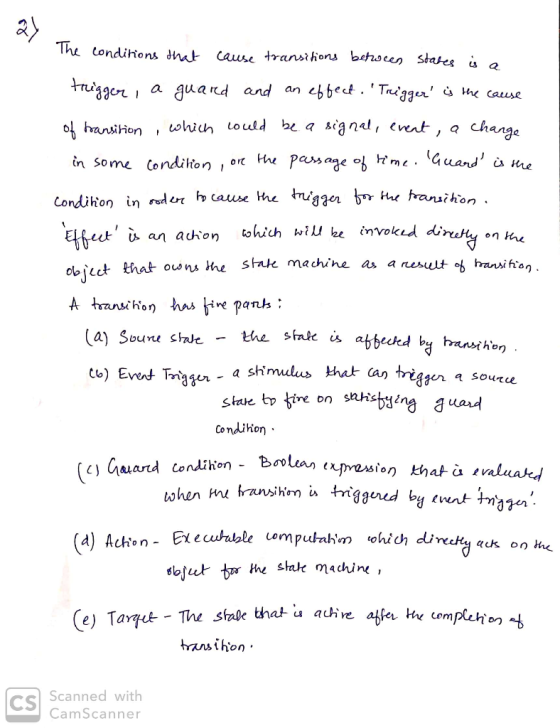

2. List conditions that cause transitions between states.

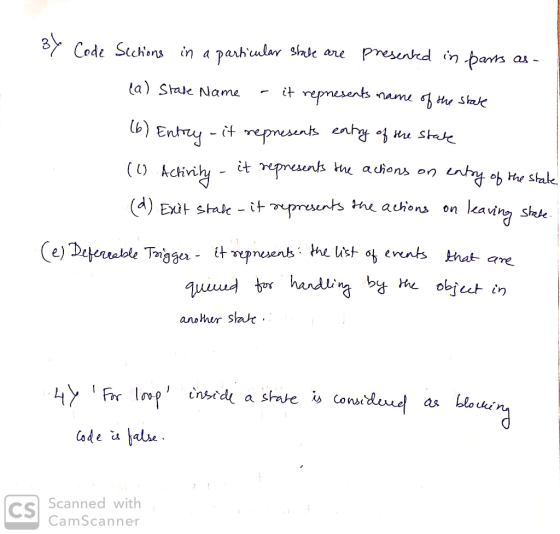

3. Name the code sections in a particular state.

4. Is performing a ‘For-Loop’ inside a state considered a blocking code?

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment

Answer 2
