A charge of 0.200 C moves vertically in a field of 0.600 T that is oriented...

A charge of 0.200 C moves vertically in a field of 0.600 T that is oriented some angle from the vertical.

If the charge's speed is 2.0×102 m/s, what field angle(s) will ensure that the force acting on the charge is 6.0 N ?

If there is more than one answer, enter them in ascending order separated by a comma.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

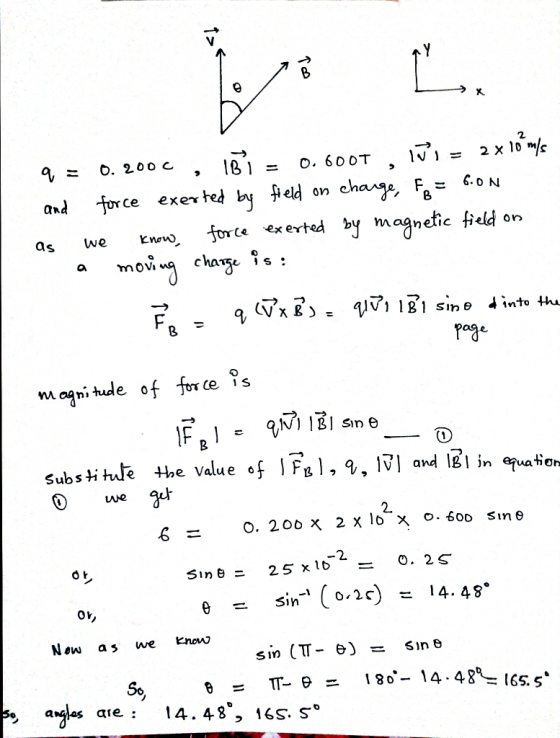

Answer #1

0 0
Add a comment
