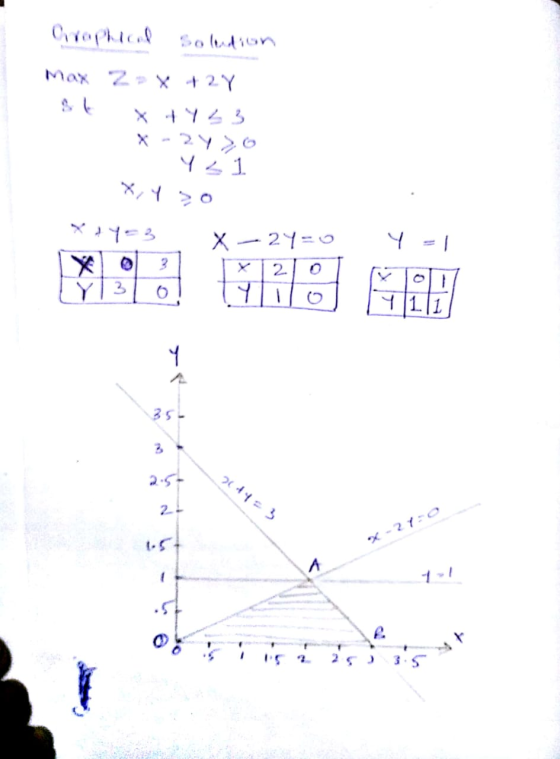

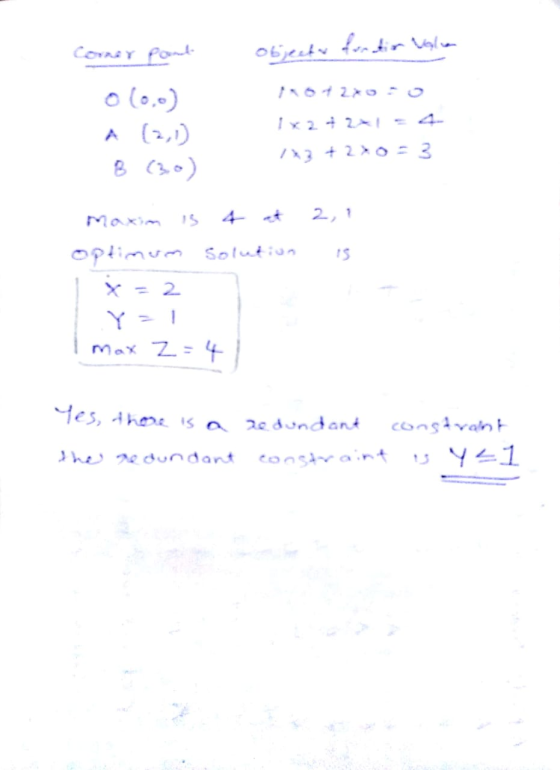

For the following linear programming problem, determine the optimal solution using the graphical solution method. Are...
For the following linear programming problem, determine the
optimal solution using the graphical solution method. Are any of
the constraints redundant? If yes, identify the constraint that is
redundant.
| Max | X + 2Y |
| s.t. | X + Y ≤ 3 |
| X − 2Y ≥ 0 | |
| Y ≤ 1 | |
| X, Y ≥ 0 |
