3] A multimode graded index fiber has a refractive index at the core axis of 1.46...

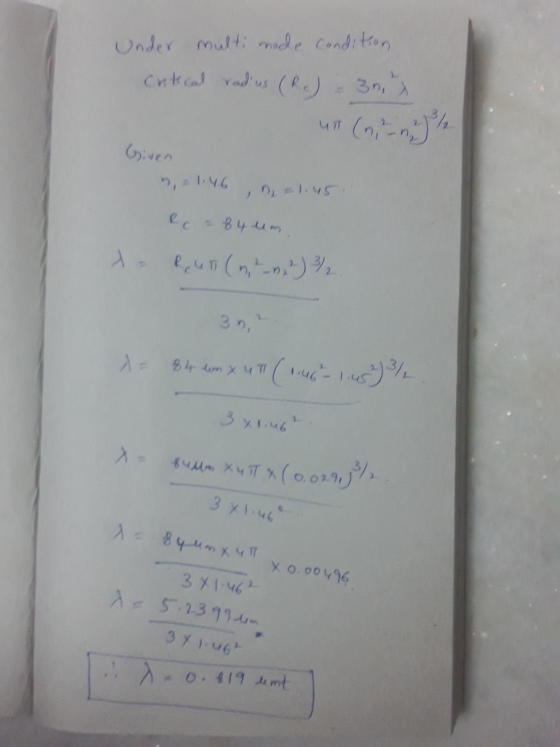

3] A multimode graded index fiber has a refractive index at the core axis of 1.46 with a cladding refractive index of 1.45. The critical radius of curvature which allows large bending losses to occur is 84 μm when the fiber is transmitting light of a particular wavelength. Determine the wavelength of the transmitted light.
Homework Answers
Add Answer to:
3] A multimode graded index fiber has a refractive index at the
core axis of 1.46...
Agraded index multimode fiber with the core radius 8 um, cladding index 1.46, core- cladding index...
Agraded index multimode fiber with the core radius 8 um, cladding index 1.46, core- cladding index difference 0.02, graded index profile parameter a = 2 can nominally support 20 modes. What is the smallest radius of curvature that the fiber can take to still support 10 modes at 1310 nm? O 0.3 mm 12 um 2.7 cm 1.6 m
relative refractive index difference between the core axis and the cladding of a graded index fiber
The relative refractive index difference between the core axis and the cladding ofa graded index fiber is 0.7% when the refractive index at the core axis is 1.45.Estimate values for the numerical aperture of the fiber when:(a) the index profile is not taken into account; and(b) the index profile is assumed to be triangular.Comment on the results.
Optical fiber has a core with refractive index 1.5, a cladding with refractive index 1.46 and...
Optical fiber has a core with refractive index 1.5, a cladding with refractive index 1.46 and a buffer coating with refractive index 1.4. What is the angle of total internal reflection in this fiber, if light is propagating in the core?
In the optical fiber below, the core has a refractive index equal to 1.5
In the optical fiber below, the core has a refractive index equal to 1.5 and a cladding of refractive index of 1.4. a) What is the speed of light inside the core? b) What is the critical angle at the core-cladding interface? c) What is the maximum angle "t" that the rays leaving the source of light should make with the axis of the fiber so that total internal reflections takes place at the core-cladding interface?
a step index fiber with large core diameter compared with the wavelength of the transmitted light...
a step index fiber with large core diameter compared with the wavelength of the transmitted light has an acceptance angle in air of 22 and a relative refractive index difference of 3%.Estimate the numerical aperture and the critical angle at the core-cladding interface for the fiber
A step-index multimode glass fibre, with a core diameter of 50 um and cladding refractive index of 1.45, is designed to...
A step-index multimode glass fibre, with a core diameter of 50 um and cladding refractive index of 1.45, is designed to limit the intermodal dispersion to 10ns/km 9. Find its acceptance angle а. Calculate the maximum bit rate for transmission over a distance of 20 km b.
A step-index multimode glass fibre, with a core diameter of 50 um and cladding refractive index of 1.45, is designed to limit the intermodal dispersion to 10ns/km 9. Find its acceptance angle а....
1. A fiber has a core with a refractive index of 1.53 and a cladding with...
1. A fiber has a core with a refractive index of 1.53 and a cladding with an index of 1.459. What is the numerical aperture? 2. A fiber has a core with refractive index of 1.5 and a cladding with an index of 1.465. Determine what the confinement angle is? 3. A laser source has 4.5 mW coupled into a fiber. Calculate the loss in dB if the power output is only 2.3 mW. 4. Schott brand BaK4 glass has...
Consider a step index single mode fiber with a length of 100km. The core index being 1.46, and th...
Consider a step index single mode fiber with a length of 100km. The core index being 1.46, and the cladding index 1.45 and a loss of .20dB/km at a wavelength of 1550nm. The dispersion coeffcient of this fiber at 1550nm is D = 1.5. For a high speed data with .8nm spectral width what is the group velocity delay?
1. An optical fiber has a core diameter of 4 micro-meters and the cladding refractive index...
1. An optical fiber has a core diameter of 4 micro-meters and the cladding refractive index n-= 1.46. In order to have a single mode propagation wavelengths at 850nm and above what is the maximum core refractive index we should use?
12 = n* (1 – 21 )] 4. Consider a multimode fiber with core refractive index...
12 = n* (1 – 21 )] 4. Consider a multimode fiber with core refractive index given by na = n; Let n = 1.5, 4= 0.01, a = 50mm. Calculate: - rnaxla (a) the maximum value of the launch angle & to maintain ... <a: (b) the axial distance at which the ray again crosses the axis. Next, consider a ray crossing the fiber axis at 5 deg with respect to that axis. Find (c) the maximum radial distance...
Agraded index multimode fiber with the core radius 8 um, cladding index 1.46, core- cladding index difference 0.02, graded index profile parameter a = 2 can nominally support 20 modes. What is the smallest radius of curvature that the fiber can take to still support 10 modes at 1310 nm? O 0.3 mm 12 um 2.7 cm 1.6 m
A step-index multimode glass fibre, with a core diameter of 50 um and cladding refractive index of 1.45, is designed to limit the intermodal dispersion to 10ns/km 9. Find its acceptance angle а. Calculate the maximum bit rate for transmission over a distance of 20 km b.
A step-index multimode glass fibre, with a core diameter of 50 um and cladding refractive index of 1.45, is designed to limit the intermodal dispersion to 10ns/km 9. Find its acceptance angle а....
1. An optical fiber has a core diameter of 4 micro-meters and the cladding refractive index n-= 1.46. In order to have a single mode propagation wavelengths at 850nm and above what is the maximum core refractive index we should use?
12 = n* (1 – 21 )] 4. Consider a multimode fiber with core refractive index given by na = n; Let n = 1.5, 4= 0.01, a = 50mm. Calculate: - rnaxla (a) the maximum value of the launch angle & to maintain ... <a: (b) the axial distance at which the ray again crosses the axis. Next, consider a ray crossing the fiber axis at 5 deg with respect to that axis. Find (c) the maximum radial distance...
