A simply supported bridge with a single span of L feet has a deck of uniform...

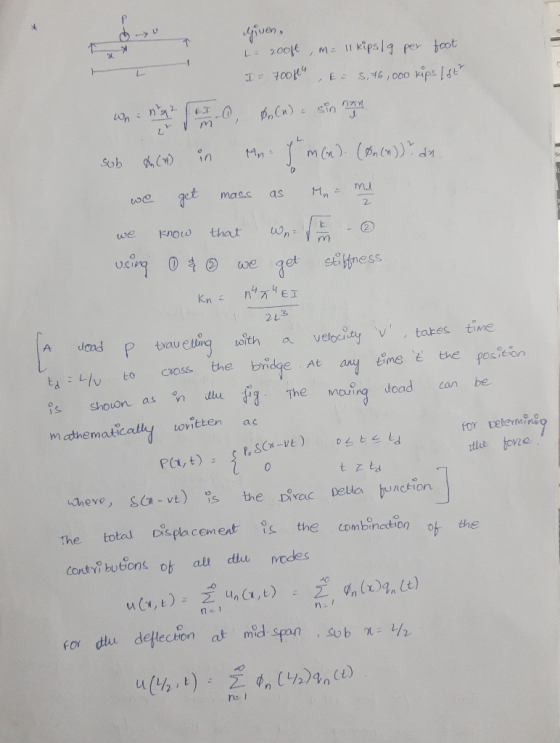

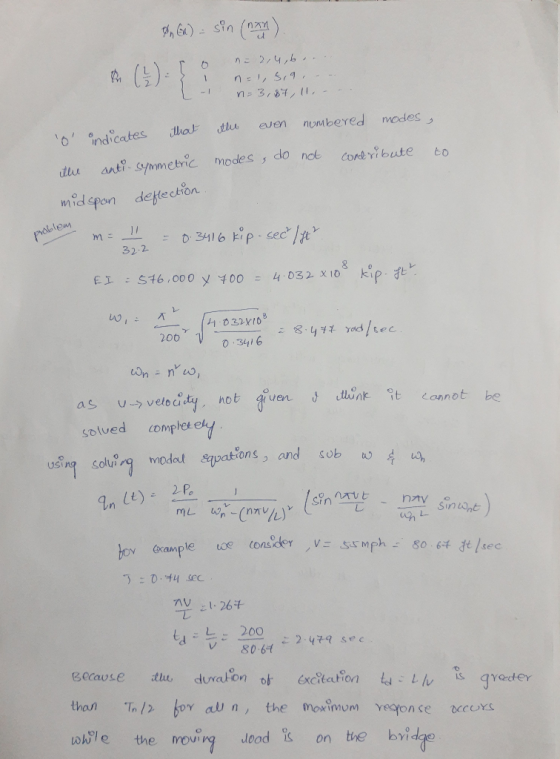

A simply supported bridge with a single span of L feet has a deck of uniform cross section with mass m per foot length and flexural rigidity EI. A single wheel load p0 travels across the bridge at a uniform velocity of v. Negelecting damping and assuming the shape function of the form ψ(x) = L2x−x3 , determine an equation for the deflection at midspan as a function of time. L = 200 ft, m = 11 kips/g per foot, I = 700 ft4 , and E = 576,000 kips/ft2 .
Homework Answers
Add Answer to:
A simply supported bridge with a single span of L feet has a
deck of uniform...
QUESTION 4 (25 marks) A simply supported beam is loaded by an uniform distributed load, wkN/m, over the span of the beam, L, as shown in Figure Q4. (a) Determine the end reactions at point A and...
QUESTION 4 (25 marks) A simply supported beam is loaded by an uniform distributed load, wkN/m, over the span of the beam, L, as shown in Figure Q4. (a) Determine the end reactions at point A and B in terms of w and L. (4 marks) (b) At an arbitrary point, x, express the internal mom (c) Show that the deflection curve of the beam under the loading situation is ent, M(x), in x, w, and L. (5 marks) 24EI...
A simply supported uniform beam (with length L and flexural rigidity El) carries a moment Mo...
A simply supported uniform beam (with length L and flexural rigidity El) carries a moment Mo (clockwise) at a distance -21B away from the left end (x-0). Calculate the deflection () and slope (dv/de) at 21/3 by using the Rayleigh-Ritz Method. Assume a deflection curve of the form v-asin(rx/L), where a is to be determined
SS two BMs midspan deflection The simply supported beam shown below has a span length L...
SS two BMs midspan deflection The simply supported beam shown below has a span length L = 4.1. Two applied bending moments Mo = 4.6 are applied at either support. Determine the midspan deflection of the beam. Assume El is constant. Show your results to two decimal point and no units. (Hibbeler) M M 2 Answer:
Please refer AISC 15th edition 3. A simply supported beam (W18x97) is 50-ft long and is...
Please refer AISC 15th edition
3. A simply supported beam (W18x97) is 50-ft long and is restrained at the supports and at midspan. It carries a uniform dead load of 0.4 kips/ft plus beam weight, and a live load of 1.0 kips/ft. The steel is A992 and the method of analysis is LRFD. Determine if this shape and length is adequate to support this load. Also determine which controls: flexural strength or deflection. The limiting maximum live load deflection is...
A simply supported pretensioned beam has a span of 60 ft. Compute the initial deflection at...
A simply supported pretensioned beam has a span of 60 ft. Compute the initial deflection at midspan due to prestress and the beam's own weight. – cgc F ee = 12.62" e = 22.02% I---------- = 12.62" cgs (with two points depressed) 20'-0" - 20'-0" – 20'-0" Given: A = 978 in. f'= 3,750 psi I = 86,075 in. P = 462,672 lb Beam weight = 0.15 kips/ft?
Problem 7.5 of your textbook (Haldar & Mahadevan): A simply supported beam of span L 360 inches is loaded by a uniformly distributed load w kip/in. and a concentrated kip applied at the midspan....
Problem 7.5 of your textbook (Haldar & Mahadevan): A simply supported beam of span L 360 inches is loaded by a uniformly distributed load w kip/in. and a concentrated kip applied at the midspan. The maximum deflection of the beam at the midspan can be calculated as: mar- 384 EI 48 E A beam with El 63.51 x 106 kip-in.2 Is selected to carry the load. Both w and P are statistically independent RVs with mean values estimated to be...
QUESTION 4 (25 marks) A simply supported beam is loaded by an uniform distributed load, wkN/m, over the span of the beam, L, as shown in Figure Q4. (a) Determine the end reactions at point A and B in terms of w and L. (4 marks) (b) At an arbitrary point, x, express the internal mom (c) Show that the deflection curve of the beam under the loading situation is ent, M(x), in x, w, and L. (5 marks) 24EI...
A simply supported uniform beam (with length L and flexural rigidity El) carries a moment Mo (clockwise) at a distance -21B away from the left end (x-0). Calculate the deflection () and slope (dv/de) at 21/3 by using the Rayleigh-Ritz Method. Assume a deflection curve of the form v-asin(rx/L), where a is to be determined
SS two BMs midspan deflection The simply supported beam shown below has a span length L = 4.1. Two applied bending moments Mo = 4.6 are applied at either support. Determine the midspan deflection of the beam. Assume El is constant. Show your results to two decimal point and no units. (Hibbeler) M M 2 Answer:
Please refer AISC 15th edition
3. A simply supported beam (W18x97) is 50-ft long and is restrained at the supports and at midspan. It carries a uniform dead load of 0.4 kips/ft plus beam weight, and a live load of 1.0 kips/ft. The steel is A992 and the method of analysis is LRFD. Determine if this shape and length is adequate to support this load. Also determine which controls: flexural strength or deflection. The limiting maximum live load deflection is...
A simply supported pretensioned beam has a span of 60 ft. Compute the initial deflection at midspan due to prestress and the beam's own weight. – cgc F ee = 12.62" e = 22.02% I---------- = 12.62" cgs (with two points depressed) 20'-0" - 20'-0" – 20'-0" Given: A = 978 in. f'= 3,750 psi I = 86,075 in. P = 462,672 lb Beam weight = 0.15 kips/ft?
Problem 7.5 of your textbook (Haldar & Mahadevan): A simply supported beam of span L 360 inches is loaded by a uniformly distributed load w kip/in. and a concentrated kip applied at the midspan. The maximum deflection of the beam at the midspan can be calculated as: mar- 384 EI 48 E A beam with El 63.51 x 106 kip-in.2 Is selected to carry the load. Both w and P are statistically independent RVs with mean values estimated to be...
