An LTIC system is described by the equation: (D2 + 4D + 3) y(t) = (D...

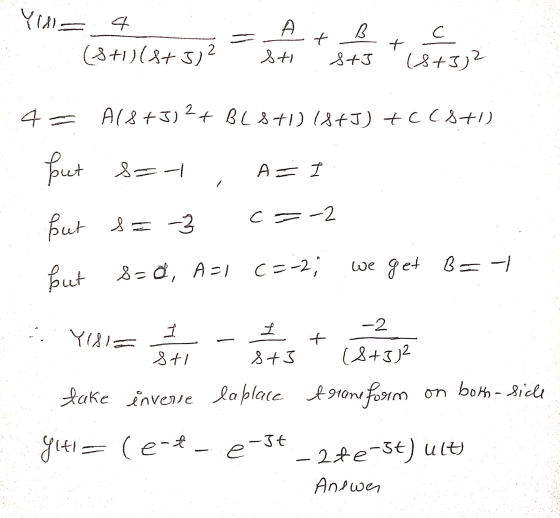

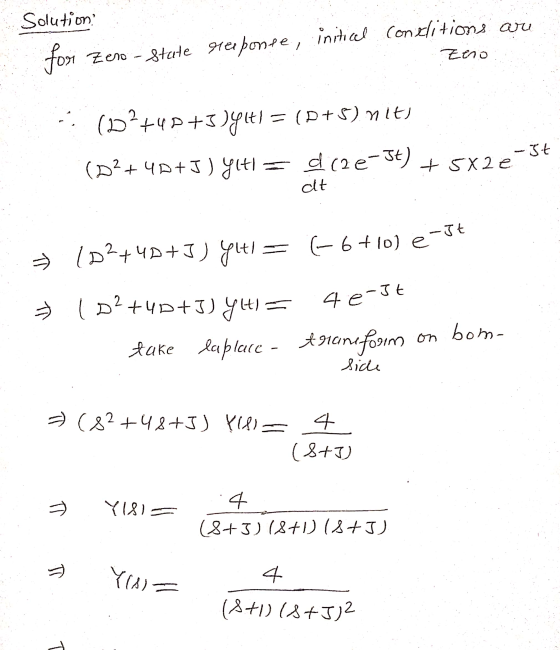

An LTIC system is described by the equation: (D2 + 4D + 3) y(t) = (D + 5) x(t).
For x(t) = 2 e-3t u(t), find the zero-state response y(t) for this
system.
Homework Answers
Add Answer to:
An LTIC system is described by the equation: (D2 + 4D + 3) y(t)
= (D...
(b) Given a LTIC system described by (D2 + 3D + 2)y(t) = Dx(t) with initial...
(b) Given a LTIC system described by (D2 + 3D + 2)y(t) = Dx(t) with initial conditions y(0) = 0, y(0) = 5. X(t) = e . Find the zero input response. [10 points)
3. An LTIC system is specified by the equation (D2 9)y(t) (3D 2)x(t) Assume y(0)3,y(0) 6 d) What is the characteristic...
3. An LTIC system is specified by the equation (D2 9)y(t) (3D 2)x(t) Assume y(0)3,y(0) 6 d) What is the characteristic equation of this system? e) What are the characteristic roots of this system? f Determine the zero-input response yo(t). Simplify your answer
3. An LTIC system is specified by the equation (D2 9)y(t) (3D 2)x(t) Assume y(0)3,y(0) 6 d) What is the characteristic equation of this system? e) What are the characteristic roots of this system? f Determine the...
Please show all the steps, Thank you! Find yol(t), the zero-input component of the response for an LTIC system described by the following differential equation: (D2 + 6D +9)y(t) (3D+5)r(t) where the i...
Please show all the steps, Thank you!
Find yol(t), the zero-input component of the response for an LTIC system described by the following differential equation: (D2 + 6D +9)y(t) (3D+5)r(t) where the initial conditions are yo(0)-3)0(0) -7
Find yol(t), the zero-input component of the response for an LTIC system described by the following differential equation: (D2 + 6D +9)y(t) (3D+5)r(t) where the initial conditions are yo(0)-3)0(0) -7
Questions 4-5: An LTIC system can be described by an equation: dy(t) dr 2 + 2x(t)...
Questions 4-5: An LTIC system can be described by an equation: dy(t) dr 2 + 2x(t) dt? 4. What will be the zero-input response y(i), if the initial conditions are yo (0) = 0, and Y. (O) = 12 A). y.(t) = e" + B). y(t)=en-ex C). y.(t)=e-2 -2% D). y(t) = -2-2 +e-3 The transfer function of the LTIC system can be calcu . If the input signal of the system is x(t) = 8(6), what will as H(m)...
An LTIC system is specified by the equation
An LTIC system is specified by the equation(D2+9)y(t)=(3D+2)x(t)y0(0^-)=6a. Find the characteristic polynomial, characteristic equation, characteristic roots, and characteristic modes of this system.b. Find y0(t) the zero-input component of the response y(t) for t ≥ 0, if the initial conditions are y0(0−) = 2 and y0(0^-)=-1
2. (Chapter 2). A linear, time-invariant, continuous-time (LTIC) system with input f(t) and output y(t) is specified by the differential equation D2(D +1)y(t) (D - 3)f(t) Find the characteristic poly...
2. (Chapter 2). A linear, time-invariant, continuous-time (LTIC) system with input f(t) and output y(t) is specified by the differential equation D2(D +1)y(t) (D - 3)f(t) Find the characteristic polynomial, characteristic equation, characteristic root(s), and characteristic mode(s) of this system. a. b. Is this system asymptotically stable, marginally stable, or unstable? Justify your answer.
2. (Chapter 2). A linear, time-invariant, continuous-time (LTIC) system with input f(t) and output y(t) is specified by the differential equation D2(D +1)y(t) (D - 3)f(t)...
An LT-I system with the following differential equation y’(t) + 3 y(t) = x(t) has a...
An LT-I system with the following differential equation y’(t) + 3 y(t) = x(t) has a Zero State Response of yzsr(t) = -2 exp(-5t) u(t) + 2 exp(-3t) u(t) when an input signal: x(t) = 4 exp(-5t) u(t) is applied to the system. What is the Zero State Response of the following system beginning at time t = 0 seconds, y’(t) + 3 y(t) = x’(t) -2 x(t) if the same input signal is applied to the system, and it...
4.8.2 For an LTIC system described by the transfer function H(s) = + 2) find the...
4.8.2 For an LTIC system described by the transfer function H(s) = + 2) find the steady-state system response to a. 10u(t) b. cos (2+ + 60°) (1) c. sin (3 - 45")u(t) d. e3 u(t)
2. For an LTIC system with transfer function: jw+1)jw+2) Find the (zero-state) response y(t), if the...
2. For an LTIC system with transfer function: jw+1)jw+2) Find the (zero-state) response y(t), if the input f0) are: (a). 2e u(t
2.6.1 Consider a causal continuous-time LTI system described by the differential equation u"(t) +...
2.6.1-2.6.62.6.1 Consider a causal contimuous-time LTI system described by the differential equation$$ y^{\prime \prime}(t)+y(t)=x(t) $$(a) Find the transfer function \(H(s)\), its \(R O C\), and its poles.(b) Find the impulse response \(h(t)\).(c) Classify the system as stable/unstable.(d) Find the step response of the system.2.6.2 Given the impulse response of a continuous-time LTI system, find the transfer function \(H(s),\) the \(\mathrm{ROC}\) of \(H(s)\), and the poles of the system. Also find the differential equation describing each system.(a) \(h(t)=\sin (3 t) u(t)\)(b)...
(b) Given a LTIC system described by (D2 + 3D + 2)y(t) = Dx(t) with initial conditions y(0) = 0, y(0) = 5. X(t) = e . Find the zero input response. [10 points)
3. An LTIC system is specified by the equation (D2 9)y(t) (3D 2)x(t) Assume y(0)3,y(0) 6 d) What is the characteristic equation of this system? e) What are the characteristic roots of this system? f Determine the zero-input response yo(t). Simplify your answer
3. An LTIC system is specified by the equation (D2 9)y(t) (3D 2)x(t) Assume y(0)3,y(0) 6 d) What is the characteristic equation of this system? e) What are the characteristic roots of this system? f Determine the...
Please show all the steps, Thank you!
Find yol(t), the zero-input component of the response for an LTIC system described by the following differential equation: (D2 + 6D +9)y(t) (3D+5)r(t) where the initial conditions are yo(0)-3)0(0) -7
Find yol(t), the zero-input component of the response for an LTIC system described by the following differential equation: (D2 + 6D +9)y(t) (3D+5)r(t) where the initial conditions are yo(0)-3)0(0) -7
Questions 4-5: An LTIC system can be described by an equation: dy(t) dr 2 + 2x(t) dt? 4. What will be the zero-input response y(i), if the initial conditions are yo (0) = 0, and Y. (O) = 12 A). y.(t) = e" + B). y(t)=en-ex C). y.(t)=e-2 -2% D). y(t) = -2-2 +e-3 The transfer function of the LTIC system can be calcu . If the input signal of the system is x(t) = 8(6), what will as H(m)...
2. (Chapter 2). A linear, time-invariant, continuous-time (LTIC) system with input f(t) and output y(t) is specified by the differential equation D2(D +1)y(t) (D - 3)f(t) Find the characteristic polynomial, characteristic equation, characteristic root(s), and characteristic mode(s) of this system. a. b. Is this system asymptotically stable, marginally stable, or unstable? Justify your answer.
2. (Chapter 2). A linear, time-invariant, continuous-time (LTIC) system with input f(t) and output y(t) is specified by the differential equation D2(D +1)y(t) (D - 3)f(t)...
4.8.2 For an LTIC system described by the transfer function H(s) = + 2) find the steady-state system response to a. 10u(t) b. cos (2+ + 60°) (1) c. sin (3 - 45")u(t) d. e3 u(t)
2. For an LTIC system with transfer function: jw+1)jw+2) Find the (zero-state) response y(t), if the input f0) are: (a). 2e u(t
2.6.1-2.6.62.6.1 Consider a causal contimuous-time LTI system described by the differential equation$$ y^{\prime \prime}(t)+y(t)=x(t) $$(a) Find the transfer function \(H(s)\), its \(R O C\), and its poles.(b) Find the impulse response \(h(t)\).(c) Classify the system as stable/unstable.(d) Find the step response of the system.2.6.2 Given the impulse response of a continuous-time LTI system, find the transfer function \(H(s),\) the \(\mathrm{ROC}\) of \(H(s)\), and the poles of the system. Also find the differential equation describing each system.(a) \(h(t)=\sin (3 t) u(t)\)(b)...
