Why does a Class C amplifier have good efficiency but has a poor linearity?
Why does a Class C amplifier have good efficiency but has a poor linearity?
Homework Answers
1. Cause for poorest linearity is, since they only take less than 180° oscillations. They are suitable for amplifying constant envelope signals.
2. The reduced conduction angle progresses the efficiency to a great expand, but roots a lot of distortion, which leads to poor linearity. Hence the maximum theoretical efficiency of a Class-C amplifier which is around 90%.This is why Class C Amplifier has good efficiency factor,which is a major advantage of this amplifier.

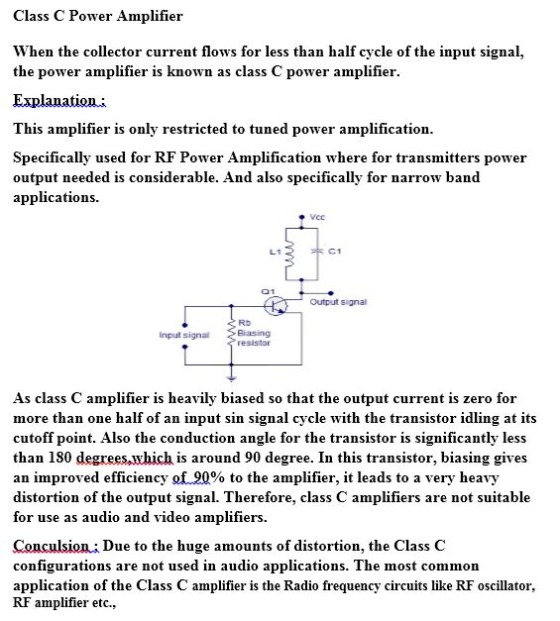

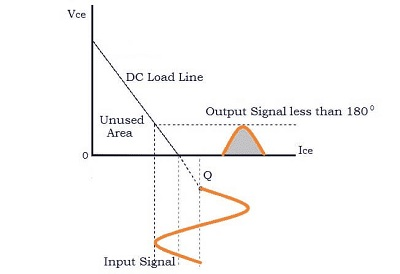

Waveforms for the Class- C Amplifier :
Thankyou.
Add Answer to:
Why does a Class C amplifier have good efficiency but has a poor
linearity?
