A person grips the end of a 3.0m long pole horizontally with hands .5 meters apart....

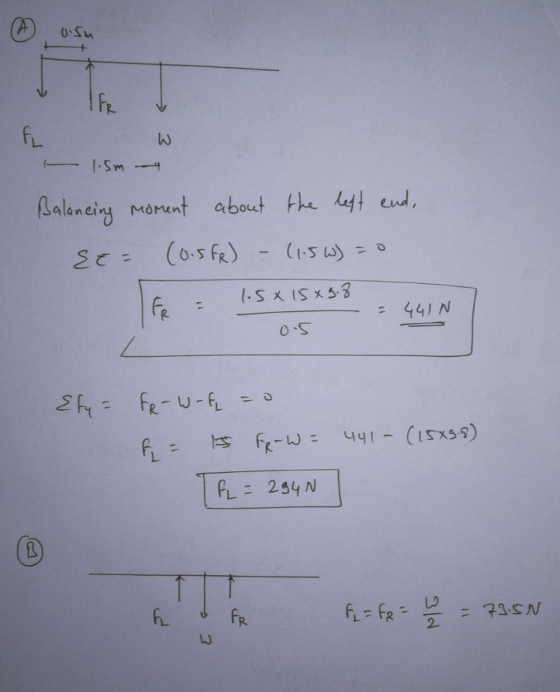

A person grips the end of a 3.0m long pole horizontally with hands .5 meters apart. A) if the pole is uniform with a mass of 15.0 kg, find the forces(magnitude and direction) on her left arm(L) and her right arm(R), to hold the pole in place. B) where should she place her hands to minimize both forces.
Homework Answers
