A boiler is at a pressure of 80 psia. Use steam tables for sea level. (i)...
A boiler is at a pressure of 80 psia. Use steam tables for sea level.

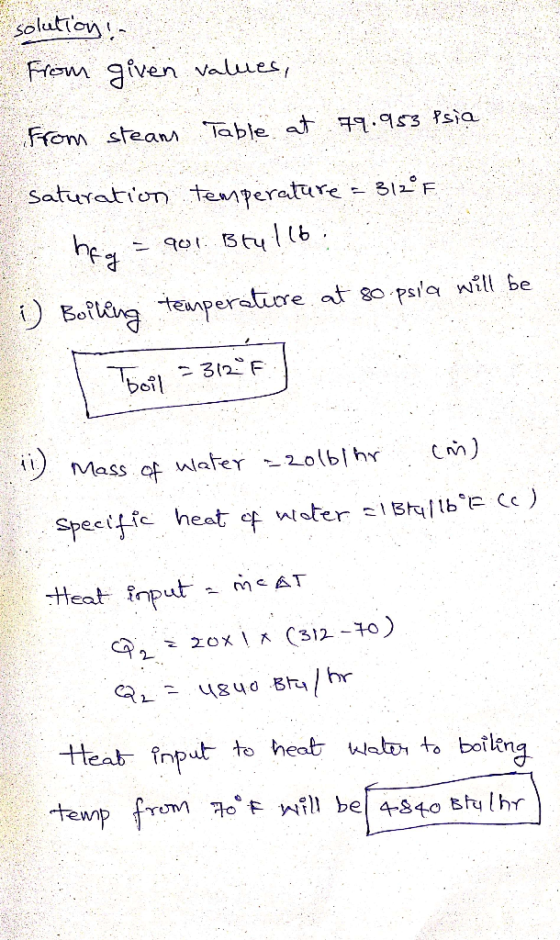

(i) At what temperature does the water boil?(ii) How much heat input (
in Btu/hr) is required to heat 20 pounds per hour of water from 70 F to this boiling point?

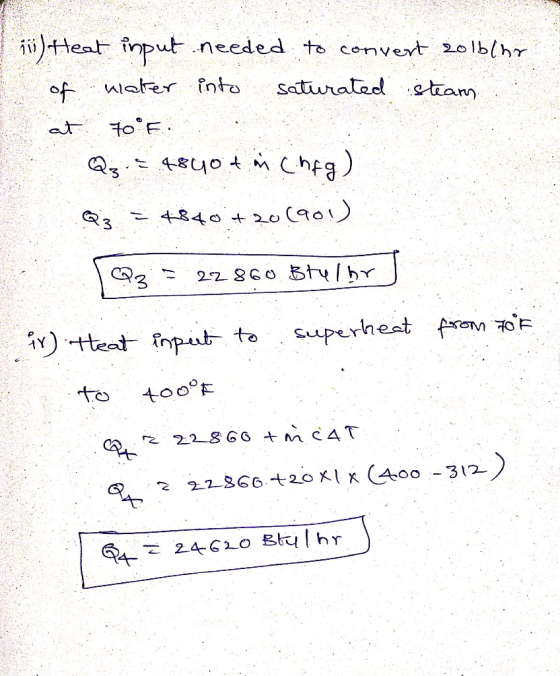

(iii) How much heat input (in Btu/hr) is needed to convert 20 pounds per hour of water from 70 F into saturated steam at 80 psi pressure?(
iv) How much heat input (in Btu/hr) is needed to superheat 20 pounds of water from 70 F to 400 F at 80 psia pressure
Homework Answers
