Using the code below, list all of the dependence types (RAW, WAR, WAW). List the dependencies...

Using the code below, list all of the dependence types (RAW, WAR, WAW). List the dependencies in the respective table by writing in the instruction numbers involved with the dependence. Note: some fields in the table may be empty.

I1: A = B + C; I2: B = B - C; I3: C = C - B; I4: A = B - A;

engineering Computer-Science

Add a comment Improve this question Transcribed image text

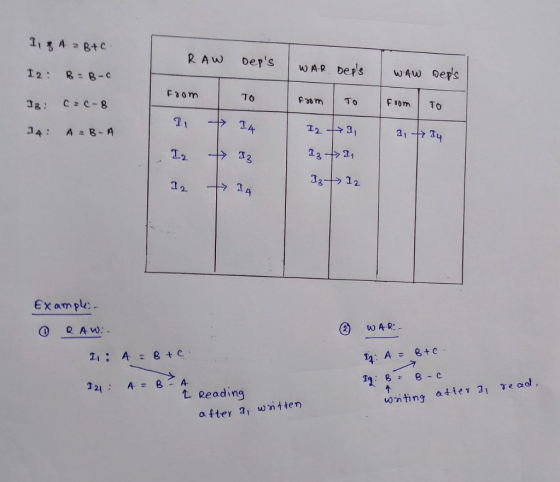

Answer 1

Answer #1

Add a comment

Answer 2
