Air enters a diffuser operating at steady state at 540°R, 15 lbf/in.2, with a velocity of...
Air enters a diffuser operating at steady state at 540°R, 15
lbf/in.2, with a velocity of 600 ft/s, and exits with a
velocity of 60 ft/s. The ratio of the exit area to the inlet area
is 8.

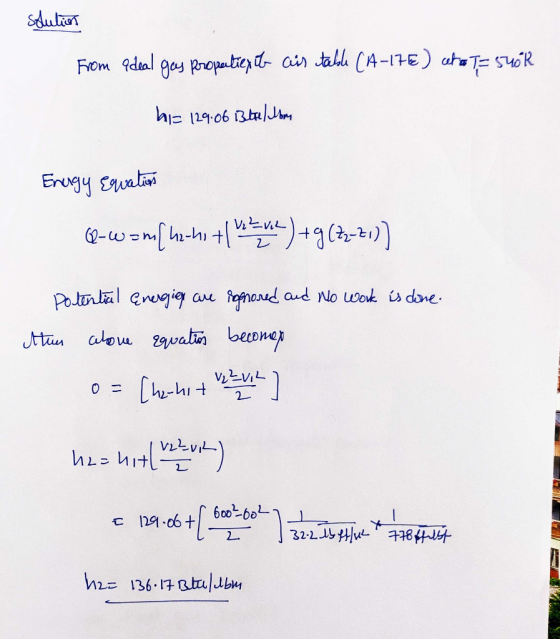

Assuming the ideal gas model for the air and ignoring heat

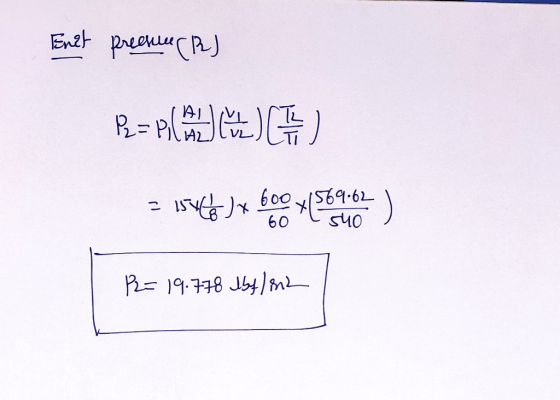

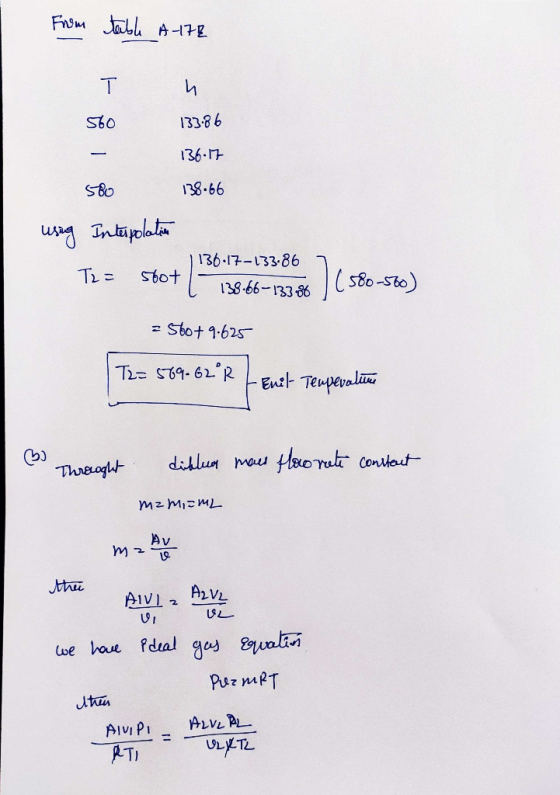

transfer, determine the temperature, in °R, and pressure, in
lbf/in.2, at the exit.
Homework Answers
Add Answer to:
Air enters a diffuser operating at steady state at 540°R, 15
lbf/in.2, with a velocity of...
Part B: Determine the pressure at the exit in lbf/in^2 (Ignoring heat transfer) Problem 4.026 Air...
Part B: Determine the pressure at the exit
in lbf/in^2 (Ignoring heat transfer)
Problem 4.026 Air enters a diffuser operating at steady state at 750°R, 15 lbf/in.2, with a velocity of 600 ft/s, and exits with a velocity of 60 ft/s. The ratio of the exit area to the inlet area is 6 Assuming the ideal gas model for the air and ignoring heat transfer, determine the temperature, in °R, and pressure, in lbf/in., at the exit. Part A Assuming...
Problem 4.033 Air enters an uninsulated nozzle operating at steady state at 760°R with negligible velocity...
Problem 4.033 Air enters an uninsulated nozzle operating at steady state at 760°R with negligible velocity and exits the nozzle at 520°R with a velocity of 1010 ft/s. Assuming ideal gas behavior and neglecting potential energy effects, determine the heat transfer per unit mass of air flowing, in Btu/lb. Btu/lb the tolerance is +/-2%
Problem 4.018 SI Air enters a horizontal, constant-diameter heating duct operating at steady state at 300...
Problem 4.018 SI Air enters a horizontal, constant-diameter heating duct operating at steady state at 300 K, 1 bar, with a volumetric flow rate of 0.25 m3/s, and exits at 325 K, 0.95 bar. The flow area is 0.05 m2 Assuming the ideal gas model with k-1.4 for the air, determine: (a) the mass flow rate, in kg/s, (b) the velocity at the inlet and exit, each in m/s, and (c) the rate of heat transfer to the air, in...
Air at 12.7psia and 72oF enters an adiabatic diffuser steadily with a velocity of 775 ft/s...
Air at 12.7psia and 72oF enters an adiabatic diffuser steadily with a velocity of 775 ft/s and leaves with a low velocity at a pressure of 14.2 psia. The exit area of the diffuser is 3 times in the inlet area. Determine (a) the exit temperature and (b) the exit velocity of the air. Please show work for interpolation.
Problem 4.018 SI Air enters a horizontal, constant-diameter heating duct operating at steady state at 290...
Problem 4.018 SI Air enters a horizontal, constant-diameter heating duct operating at steady state at 290 K, 1 bar, with a volumetric flow rate of 0.25 m3/s, and exits at 325 K, 0.95 bar. The flow area is 0.06 m2 Assuming the ideal gas model with k 1.4 for the air, determine: (a) the mass flow rate, in kg/s, (b) the velocity at the inlet and exit, each in m/s, and (c) the rate of heat transfer to the air,...
Air flows through a converging-diverging nozzle/diffuser. Assuming isentropic flow, air as an ideal gas, and constant...
Air flows through a converging-diverging nozzle/diffuser. Assuming isentropic flow, air as an ideal gas, and constant specific heats determine the state at several locations in the system. Solve using equations rather than with the tables. Note: The specific heat ratio and gas constant for air are given as k=1.4 and R-0287 kJ/kg-K respectively --Given Values-- Inlet Temperature: TI (K) 349 Inlet pressure: Pl (kPa) 460 Inlet Velocity: V1 (m/s) 73 Area at nozzle inlet: Al (cmA2) 8.19 Throat area: A...
2_9: Air enters a compressor operating at steady state at 14.7 lbf/in2, 70 oF, 23 ft/s...
2_9: Air enters a compressor operating at steady state at 14.7 lbf/in2, 70 oF, 23 ft/s through a 155 in2 opening. Air exits the compressor at 90 lbf/in2, 480 oF, 6.5 ft/s. Heat transfer from the compressor to its surroundings occurs at a rate of 2.8 Btu/s. Determine the power input required for the compressor, hp
thermodynamics 2) Superheated water vapor flows into a diffuser operating at steady state conditions. At the...
thermodynamics
2) Superheated water vapor flows into a diffuser operating at steady state conditions. At the inlet the steam temperature is 300F, its pressure is 14.7 psi and its velocity is 500 ft/sec. The steam exits the diffuser at 60 psi, saturated vapor with negligible velocity. There is no significant change in potential energy. Determine the Heat Transfer from the surroundings to the Diffuser, Btu/lbm Include in your answer: a) Schematic b) Given-data table c) Engineering Model d) T-v Diagram...
Air modeled as an ideal gas enters a turbine operating at steady state at 1040 K,...
Air modeled as an ideal gas enters a turbine operating at steady state at 1040 K, 278 kPa and exits at 120 kPa. The mass flow rate is 5.5 kg/s, and the power developed is 1200 kW. Stray heat transfer and kinetic and potential energy effects are negligible. Assuming k = 1.4, determine: (a) the temperature of the air at the turbine exit, in K. (b) the percent isentropic turbine efficiency.
A) Steam enters a horizontal pipe operating at steady state with a specific enthalpy of 2,663 kJ/...
A) Steam enters a horizontal pipe operating at steady state with a specific enthalpy of 2,663 kJ/kg and a mass flow rate of 0.1 kg/s. At the exit, the specific enthalpy is 1,531 kJ/kg. If there is no significant change in kinetic energy from inlet to exit, determine the rate of heat transfer between the pipe and its surroundings, in kW. B) Refrigerant 134a enters a horizontal pipe operating at steady state at 40°C, 3.1 bar and a velocity of...
Part B: Determine the pressure at the exit
in lbf/in^2 (Ignoring heat transfer)
Problem 4.026 Air enters a diffuser operating at steady state at 750°R, 15 lbf/in.2, with a velocity of 600 ft/s, and exits with a velocity of 60 ft/s. The ratio of the exit area to the inlet area is 6 Assuming the ideal gas model for the air and ignoring heat transfer, determine the temperature, in °R, and pressure, in lbf/in., at the exit. Part A Assuming...
Problem 4.018 SI Air enters a horizontal, constant-diameter heating duct operating at steady state at 300 K, 1 bar, with a volumetric flow rate of 0.25 m3/s, and exits at 325 K, 0.95 bar. The flow area is 0.05 m2 Assuming the ideal gas model with k-1.4 for the air, determine: (a) the mass flow rate, in kg/s, (b) the velocity at the inlet and exit, each in m/s, and (c) the rate of heat transfer to the air, in...
Problem 4.018 SI Air enters a horizontal, constant-diameter heating duct operating at steady state at 290 K, 1 bar, with a volumetric flow rate of 0.25 m3/s, and exits at 325 K, 0.95 bar. The flow area is 0.06 m2 Assuming the ideal gas model with k 1.4 for the air, determine: (a) the mass flow rate, in kg/s, (b) the velocity at the inlet and exit, each in m/s, and (c) the rate of heat transfer to the air,...
Air flows through a converging-diverging nozzle/diffuser. Assuming isentropic flow, air as an ideal gas, and constant specific heats determine the state at several locations in the system. Solve using equations rather than with the tables. Note: The specific heat ratio and gas constant for air are given as k=1.4 and R-0287 kJ/kg-K respectively --Given Values-- Inlet Temperature: TI (K) 349 Inlet pressure: Pl (kPa) 460 Inlet Velocity: V1 (m/s) 73 Area at nozzle inlet: Al (cmA2) 8.19 Throat area: A...
thermodynamics
2) Superheated water vapor flows into a diffuser operating at steady state conditions. At the inlet the steam temperature is 300F, its pressure is 14.7 psi and its velocity is 500 ft/sec. The steam exits the diffuser at 60 psi, saturated vapor with negligible velocity. There is no significant change in potential energy. Determine the Heat Transfer from the surroundings to the Diffuser, Btu/lbm Include in your answer: a) Schematic b) Given-data table c) Engineering Model d) T-v Diagram...
