2_9: Air enters a compressor operating at steady state at 14.7 lbf/in2, 70 oF, 23 ft/s...

2_9: Air enters a compressor operating at steady state at 14.7 lbf/in2, 70 oF, 23 ft/s through a 155 in2 opening. Air exits the compressor at 90 lbf/in2, 480 oF, 6.5 ft/s. Heat transfer from the compressor to its surroundings occurs at a rate of 2.8 Btu/s. Determine the power input required for the compressor, hp

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

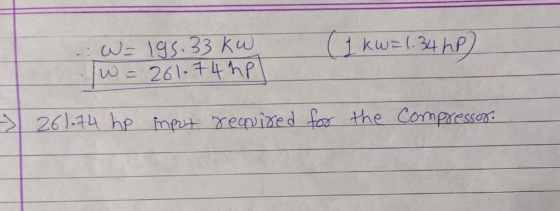

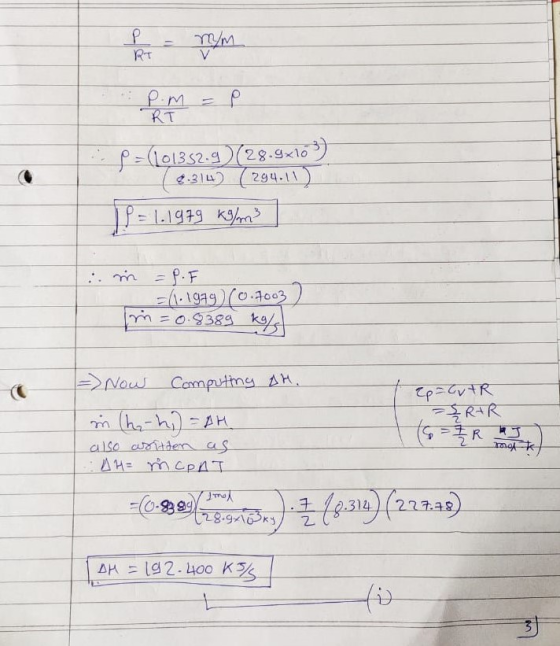

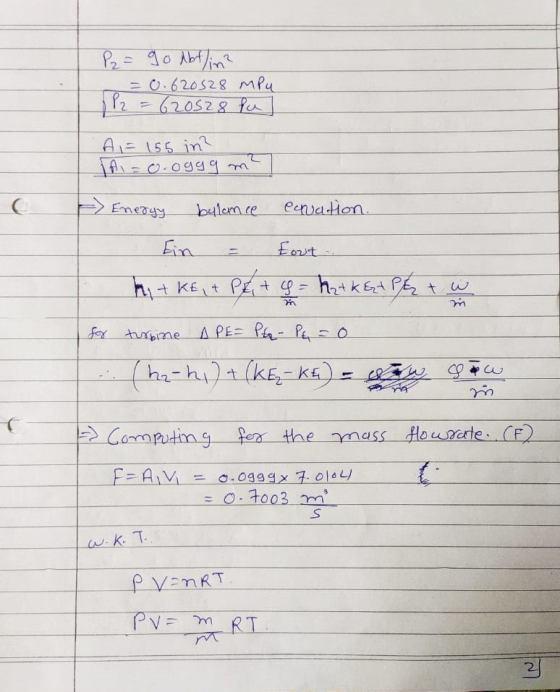

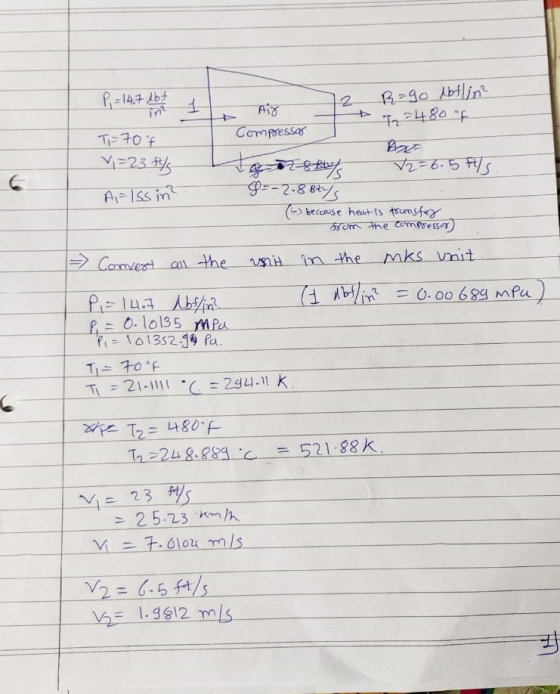

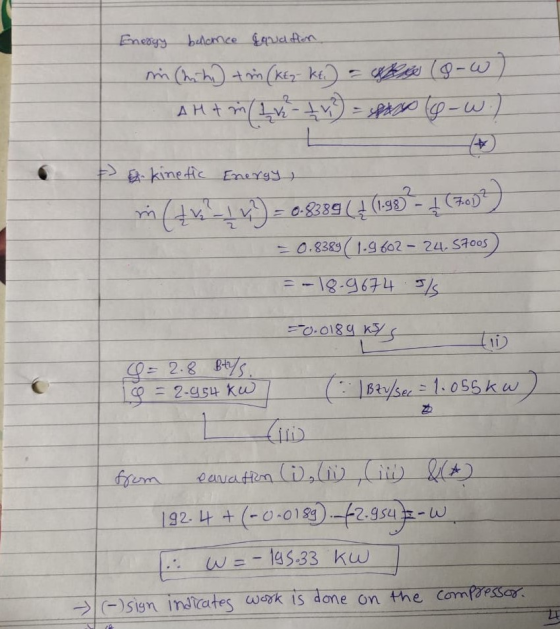

Answer #1

0 0
Add a comment
