Steam at 500 lbf/in2 , 500°F enters a well-insulated valve operating at steady state with a...

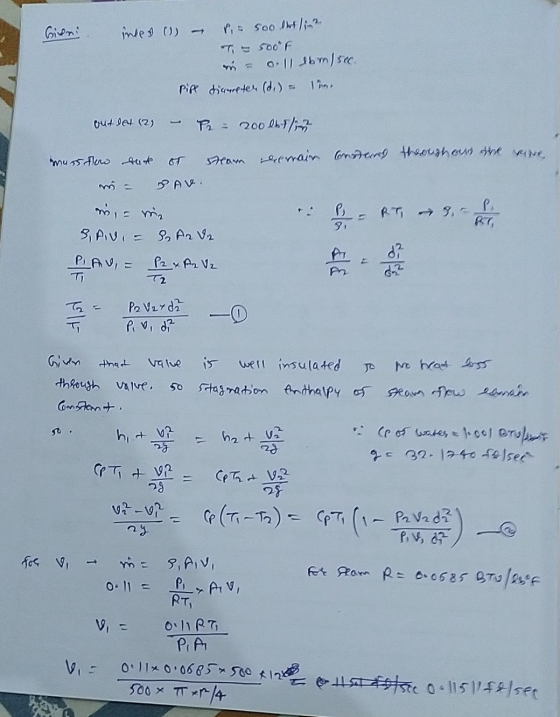

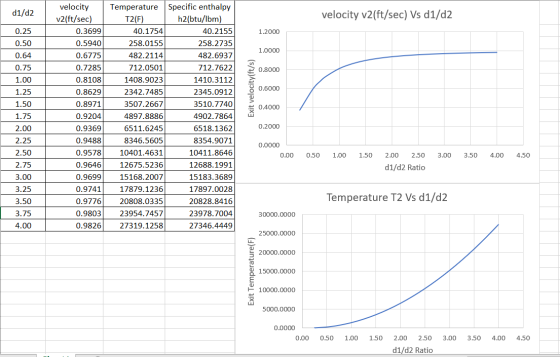

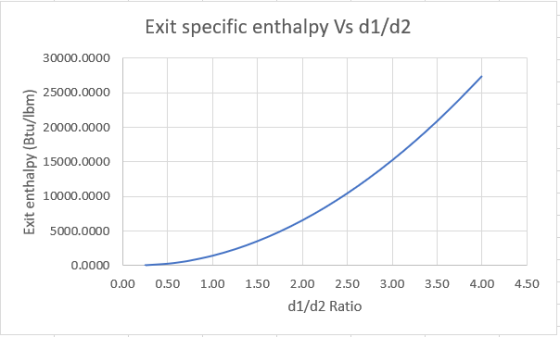

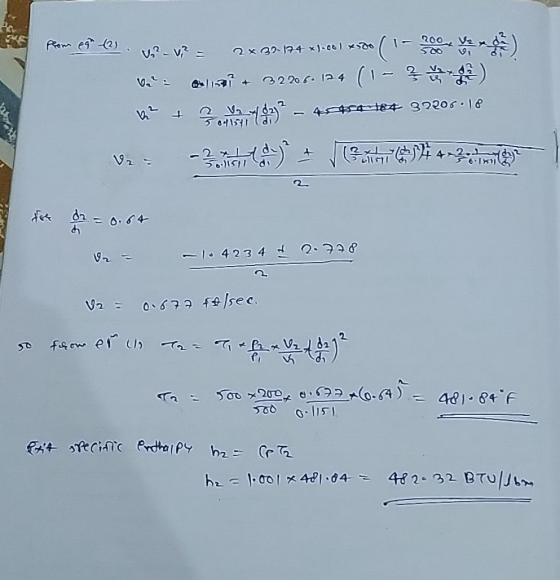

Steam at 500 lbf/in2 , 500°F enters a well-insulated valve operating at steady state with a mass flow rate of 0.11 lbm/s through a 1-in-diameter pipe. The steam expands to 200 lbf/in2 with no significant change in elevation. (a) Derive the equation by which the exit state may be fixed. Simplify. (b) Determine the exit velocity, in ft/s, and the exit temperature, in °F, if the ratio of inlet to exit pipe diameters, d1/d2, is 0.64. (c) Plot the exit velocity, in ft/s, the exit temperature, in °F, and the exit specific enthalpy, in Btu/lbm, for d1/d2 ranging from 0.25 to 4.
Homework Answers
Add Answer to:
Steam at 500 lbf/in2 , 500°F enters a well-insulated valve
operating at steady state with a...
Steam enters a turbine operating at steady state at 700oF and 450 lbf/in2 and leaves as...
Steam enters a turbine operating at steady state at 700oF and 450 lbf/in2 and leaves as a saturated vapor at 0.8 lbf/in2. The turbine develops 12,000 hp, and heat transfer from the turbine to the surroundings occurs at a rate of 2 x 106 Btu/h. Neglect kinetic and potential energy changes from inlet to exit. Determine the exit temperature, in oF, and the volumetric flow rate of the steam at the inlet, in ft3/s.
THE CORRECT ANSWER IS 670,565 1a) The velocity of steam at the inlet of an insulated...
THE CORRECT ANSWER IS 670,565 1a) The velocity of steam at the inlet of an insulated steam turbine is 110 ft/sec. The enthalpy of the steam at the inlet of the turbine is 1,800 BTU/lbm. The steam exits the turbine with a velocity of 275 ft/sec. The enthalpy of the steam as it exits the turbine is of 937 BTU/lbm. Determine the work done by the turbine in ft-lbf/lbm. THE CORRECT ANSWER IS 6,726 1b) Steam expands in a nozzle...
Steam flows steadily through a turbine at a rate of 45,000 lbm/hr, entering at 1,000 lbf/in2...
Steam flows steadily through a turbine at a rate of 45,000 lbm/hr, entering at 1,000 lbf/in2 and 900oF and leaving at a pressure of 5 lbf/in2. If the power generated by the turbine is 1.37x107 Btu/hr and the turbine is cooled at a rate of 7x106 Btu/hr, determine the temperature of the steam at the exit [oF]. Show the inlet and exit states on a P-v diagram.
1 Steam enters a well-insulated nozzle at 300 lbf/in.2, 600°F, with a velocity of 100 ft/s...
1
Steam enters a well-insulated nozzle at 300 lbf/in.2, 600°F, with a velocity of 100 ft/s and exits at 60 Ibf/in.2 with a velocity of 1800 ft/s. For steady-state operation, and neglecting potential energy effects, determine the exit temperature, in °F OF
Consider 4.8 pounds per minute of water vapor at 100 lbf/in2, 500oF, and a velocity of 100 ft/s entering a nozzle operating at steady state and expanding adiabatically to the exit, where the pressure...
Consider 4.8 pounds per minute of water vapor at 100 lbf/in2, 500oF, and a velocity of 100 ft/s entering a nozzle operating at steady state and expanding adiabatically to the exit, where the pressure is 40 lbf/in2. The isentropic nozzle efficiency is 80.0%. Determine the velocity of the steam at the exit, in ft/s, and the rate of entropy production, in Btu/min·oR.
A) Steam enters a horizontal pipe operating at steady state with a specific enthalpy of 2,663 kJ/...
A) Steam enters a horizontal pipe operating at steady state with a specific enthalpy of 2,663 kJ/kg and a mass flow rate of 0.1 kg/s. At the exit, the specific enthalpy is 1,531 kJ/kg. If there is no significant change in kinetic energy from inlet to exit, determine the rate of heat transfer between the pipe and its surroundings, in kW. B) Refrigerant 134a enters a horizontal pipe operating at steady state at 40°C, 3.1 bar and a velocity of...
2_9: Air enters a compressor operating at steady state at 14.7 lbf/in2, 70 oF, 23 ft/s...
2_9: Air enters a compressor operating at steady state at 14.7 lbf/in2, 70 oF, 23 ft/s through a 155 in2 opening. Air exits the compressor at 90 lbf/in2, 480 oF, 6.5 ft/s. Heat transfer from the compressor to its surroundings occurs at a rate of 2.8 Btu/s. Determine the power input required for the compressor, hp
Problem 6.066 Steam at 550 lbf/in.2, 700°F enters a turbine operating at steady state and exits...
Problem 6.066 Steam at 550 lbf/in.2, 700°F enters a turbine operating at steady state and exits at 1 lbf/in. 2 The turbine produces 600 hp. For the turbine, heat transfer is negligible as are kinetic and potential energy effects. (a) Determine the quality of the steam at the turbine exit, the mass flow rate, in lb/s, and the entropy production rate, in Btu/s OR, if the turbine operates without internal irreversibilities. (b) Determine the mass flow rate, in lb/s, and...
10. (25 Points) Steam enters an insulated nozzle at 140 psia, 600 F with a velocity...
10. (25 Points) Steam enters an insulated nozzle at 140 psia, 600 F with a velocity of 100 ft/s. It leaves the nozzle at 20 psia, 360°F. The mass flow rate is 10 lbm/s. Find: Ans a) b) Ans. The actual kinetic energy of the steam at the exit, in Btu The exit velocity in ft/s for part a) The exit cross sectional area of the nozzle, in in The nozzle isentropic efficiency (%) Show the actual and the ideal...
Refrigerant 134a enters a well-insulated nozzle at 200 lbf/in.2, 140°F, with a velocity of 120 ft/s...
Refrigerant 134a enters a well-insulated nozzle at 200 lbf/in.2, 140°F, with a velocity of 120 ft/s and exits at 90 lbf/in.2 with a velocity of 1500 ft/s. For steady-state operation, and neglecting potential energy effects, determine the temperature, in °F, and the quality of the refrigerant at the exit.
1
Steam enters a well-insulated nozzle at 300 lbf/in.2, 600°F, with a velocity of 100 ft/s and exits at 60 Ibf/in.2 with a velocity of 1800 ft/s. For steady-state operation, and neglecting potential energy effects, determine the exit temperature, in °F OF
Problem 6.066 Steam at 550 lbf/in.2, 700°F enters a turbine operating at steady state and exits at 1 lbf/in. 2 The turbine produces 600 hp. For the turbine, heat transfer is negligible as are kinetic and potential energy effects. (a) Determine the quality of the steam at the turbine exit, the mass flow rate, in lb/s, and the entropy production rate, in Btu/s OR, if the turbine operates without internal irreversibilities. (b) Determine the mass flow rate, in lb/s, and...
10. (25 Points) Steam enters an insulated nozzle at 140 psia, 600 F with a velocity of 100 ft/s. It leaves the nozzle at 20 psia, 360°F. The mass flow rate is 10 lbm/s. Find: Ans a) b) Ans. The actual kinetic energy of the steam at the exit, in Btu The exit velocity in ft/s for part a) The exit cross sectional area of the nozzle, in in The nozzle isentropic efficiency (%) Show the actual and the ideal...
