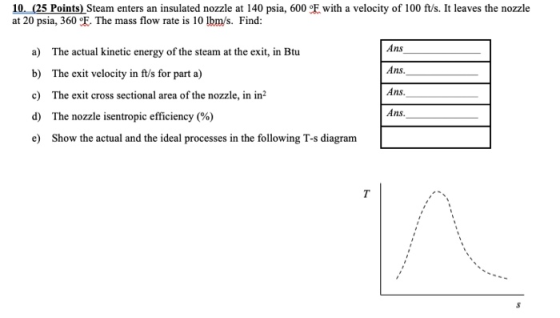

10. (25 Points) Steam enters an insulated nozzle at 140 psia, 600 F with a velocity of 100 ft/s. It leaves the nozzle at 20 p
engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

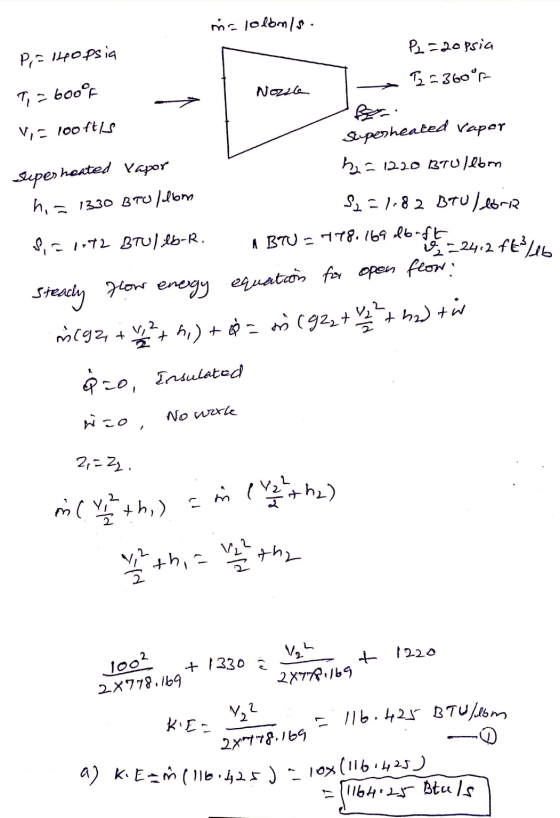

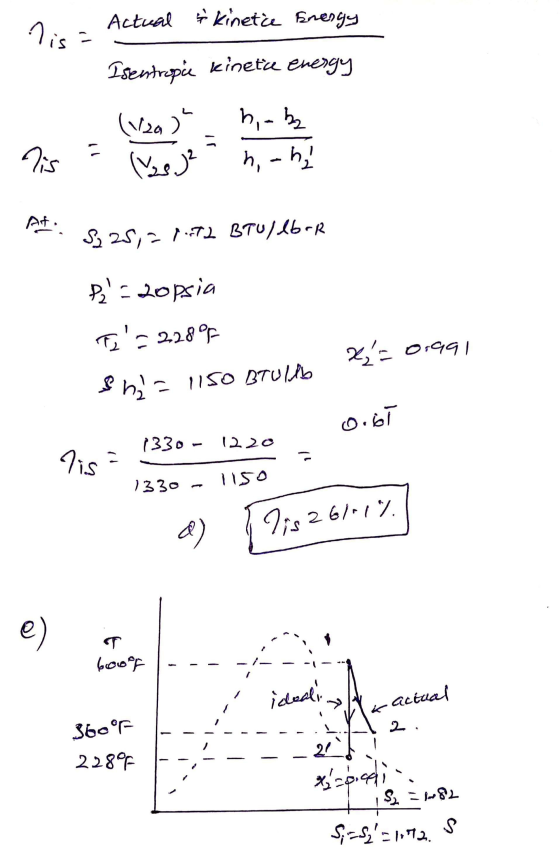

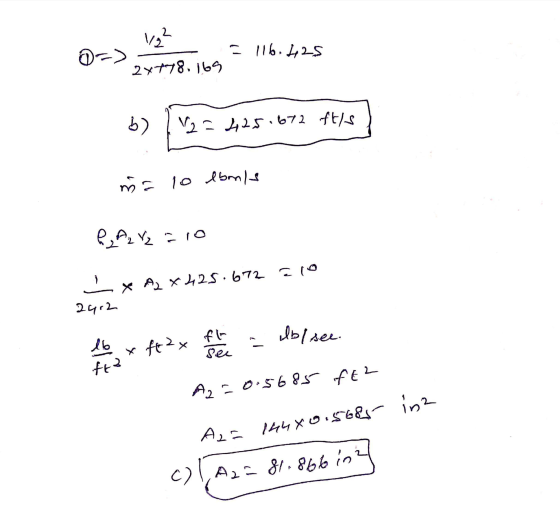

mr lodomis. P2=2opsia PREHopsia Nozzle T = 6ooor -> 12360°F V, - 100 ft/s Stuperheated raper Super heated Vapor h = 1220 BTU/Vz? =116.6425 @=> 27778.169 b) 112 = 1125.672 ft/s na lo ebols PA2 YZ 210 x A2 x4,25.672 & 10 2412 fts hox ft2x e 2 db see A2- Actual & kinetce Energy Isentrepce kinetic energy (voor habe At: 3328,7 1.672 BTU/LboR Pl=gopsia Tel22807 2, = 0;991 ² Sh=

0 0
Add a comment
Know the answer?
Add Answer to:
10. (25 Points) Steam enters an insulated nozzle at 140 psia, 600 F with a velocity...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • HWK16: Problem 2 Previous Problem Next Problem Problem List (6 points) Helium gas enters an adiabatic...

    HWK16: Problem 2 Previous Problem Next Problem Problem List (6 points) Helium gas enters an adiabatic nozzle at 37 psia and 810 R with an initial velocity of 10 ft/s The helium leaves the nozzle at 759 R and 30 psia. What is the velocity of the helium at the nozzle's exit? ft What is the isentropic efficiency of the nozzle? What is the rate of entropy generation for this process? Btu lbm R 26

  • ANSWER PLEASE PROBLEM #2 (68 pts.) Steam at 200 psia, 600°F (State 1) enters an adiabatic...

    ANSWER PLEASE PROBLEM #2 (68 pts.) Steam at 200 psia, 600°F (State 1) enters an adiabatic turbine cperating at steady state with a mass flow rate of 16.5 lbm/min and exits at 15 psia, 240°F (State 2), Neglecting the changes in kinetic and potential energies and assuming the surroundings to be at T.- 537 R. Determine: a) the actual power output, in Btu/min. b) the reversible (or maximum) power output, in Btu/min. c) the rate of exergy destruction, in Btu/min....

  • 1 Steam enters a well-insulated nozzle at 300 lbf/in.2, 600°F, with a velocity of 100 ft/s...

    1 Steam enters a well-insulated nozzle at 300 lbf/in.2, 600°F, with a velocity of 100 ft/s and exits at 60 Ibf/in.2 with a velocity of 1800 ft/s. For steady-state operation, and neglecting potential energy effects, determine the exit temperature, in °F OF

  • Steam enters a nozzle at 850 kPa and 270°C at negligible velocity and discharges at a...

    Steam enters a nozzle at 850 kPa and 270°C at negligible velocity and discharges at a pressure of 500 kPa. Assuming isentropic expansion of the steam in the nozzle, what is the exit velocity and what is the cross-sectional area at the nozzle exit for a flow rate of 0.75 kg/s ?

  • Steam enters a well-insulated nozzle at 10 bar and 200ºC. It exits as saturated vapor at...

    Steam enters a well-insulated nozzle at 10 bar and 200ºC. It exits as saturated vapor at 100 kPa. The mass flow rate is 1 kg/s. What is the steady-state exit velocity? What is the outlet cross-sectional area?

  • 1. Water enters the constant 130-mm inside-diameter tubes of a boiler at 7 MPa and 65°C...

    1. Water enters the constant 130-mm inside-diameter tubes of a boiler at 7 MPa and 65°C and leaves the tubes at 6 MPa and 450°C with a velocity of 80 m/s. Calculate the velocity of the water at the tube inlet and the inlet volume flow rate. [5-14] 2. Air enters a nozzle steadily at 50 psia, 140°F, and 150 ft/s and leaves at 14.7 psia and 900 ft/s. The heat loss from the nozzle is estimated to be 6.5...

  • Refrigerant 134a enters a well-insulated nozzle at 200 lbf/in.2, 140°F, with a velocity of 120 ft/s...

    Refrigerant 134a enters a well-insulated nozzle at 200 lbf/in.2, 140°F, with a velocity of 120 ft/s and exits at 90 lbf/in.2 with a velocity of 1500 ft/s. For steady-state operation, and neglecting potential energy effects, determine the temperature, in °F, and the quality of the refrigerant at the exit.

  • 7.10. Steam expands adiabatically in a nozzle from inlet conditions of 130(psia), 420(°F),  and a velocity...

    7.10. Steam expands adiabatically in a nozzle from inlet conditions of 130(psia), 420(°F),  and a velocity of 230(ft)(s)−1 to a discharge pressure of 35(psia) where its velocity is  2000(ft)(s)−1. What is the state of the steam at the nozzle exit, and what is Sg for the  process?

  • Steam at 500 lbf/in2 , 500°F enters a well-insulated valve operating at steady state with a...

    Steam at 500 lbf/in2 , 500°F enters a well-insulated valve operating at steady state with a mass flow rate of 0.11 lbm/s through a 1-in-diameter pipe. The steam expands to 200 lbf/in2 with no significant change in elevation. (a) Derive the equation by which the exit state may be fixed. Simplify. (b) Determine the exit velocity, in ft/s, and the exit temperature, in °F, if the ratio of inlet to exit pipe diameters, d1/d2, is 0.64. (c) Plot the exit...

  • Argon enters an insulated nozzle at 280 kPa, 1300 K, 10 m/s and exits at 645...

    Argon enters an insulated nozzle at 280 kPa, 1300 K, 10 m/s and exits at 645 m/s. Assume argon is an ideal gas and has a constant specific heat. Determine a) The exit temperature of the argon under the actual process (K). b) The ideal exit temperature of the argon (K) under the isentropic process if the isentropic efficiency of the nozzle is 90 percent. c) The exit pressure of the argon (kPa). d) The amount of specific entropy generation...
