Help on a and b please

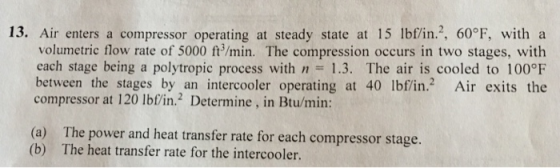

13. Air enters a compressor operating at steady state at 15 lbf/in. 60°F, with a volumetric flow rate of 5000 ft/min. The com
engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

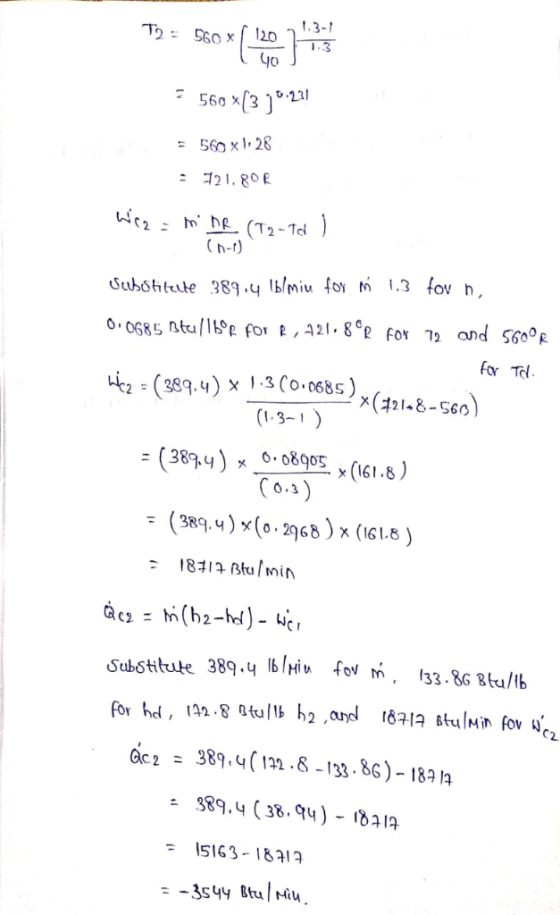

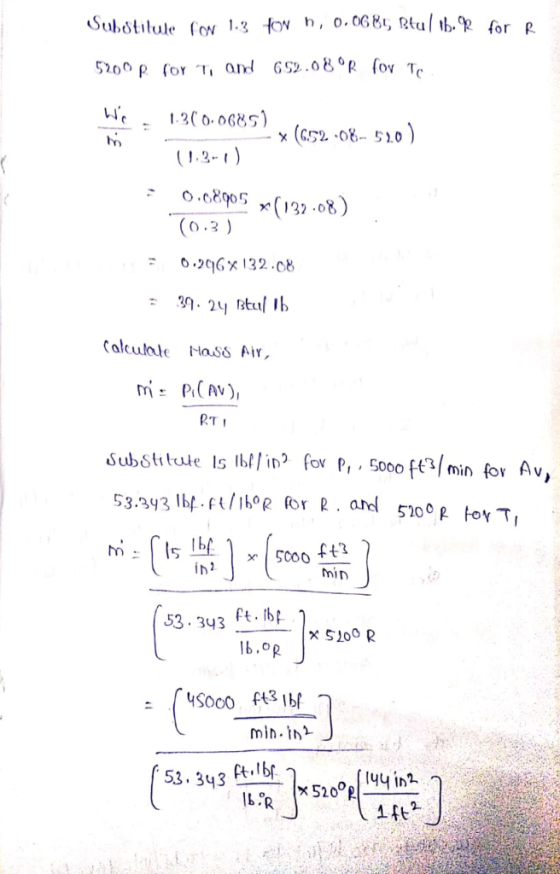

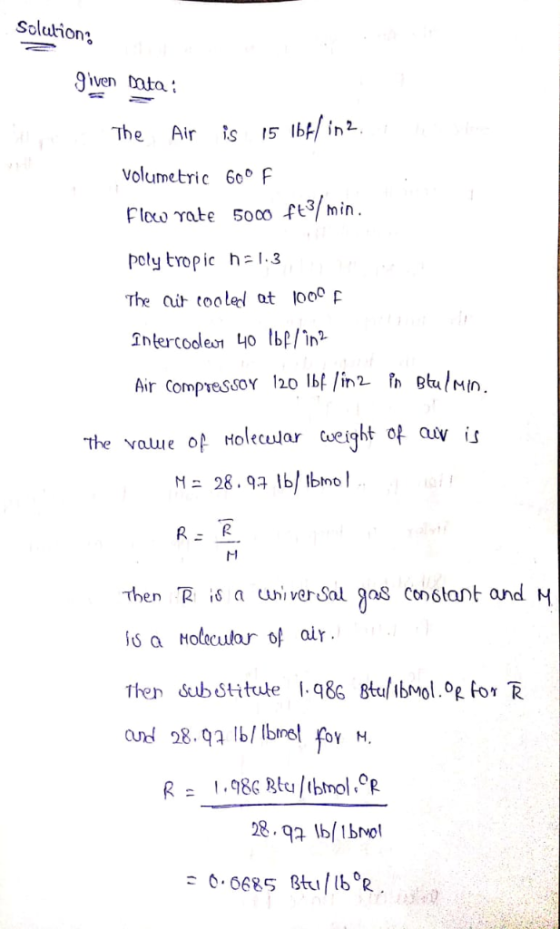

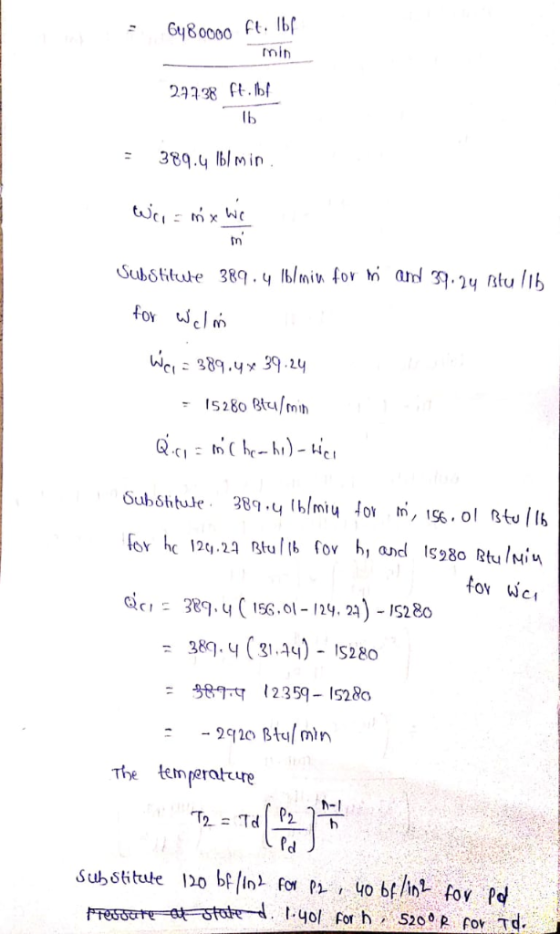

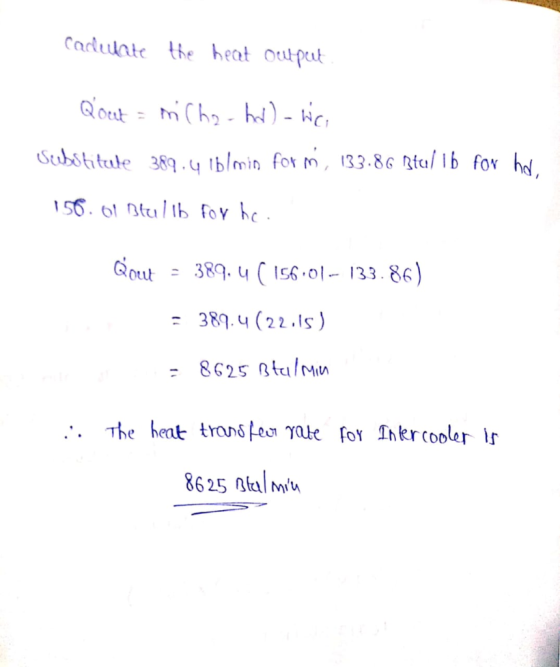

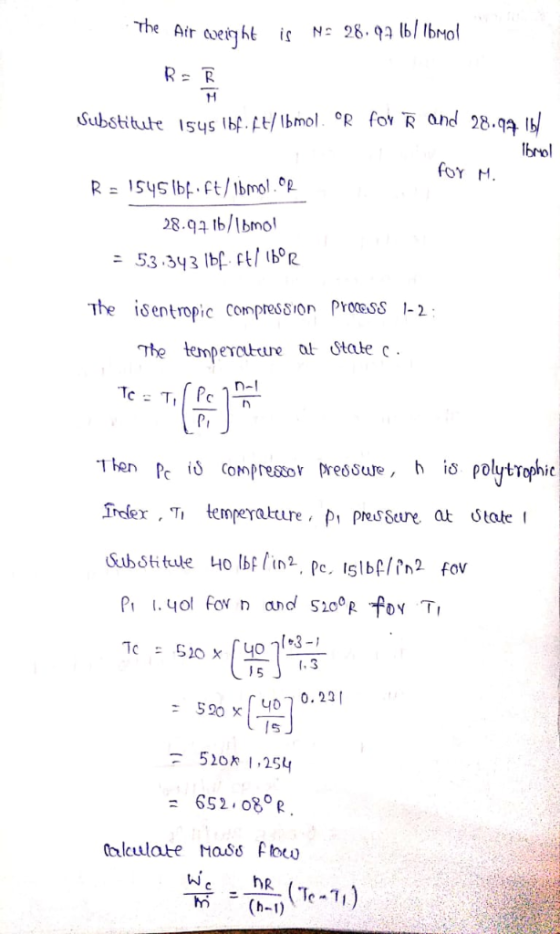

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Help on a and b please 13. Air enters a compressor operating at steady state at...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 2_9: Air enters a compressor operating at steady state at 14.7 lbf/in2, 70 oF, 23 ft/s...

    2_9: Air enters a compressor operating at steady state at 14.7 lbf/in2, 70 oF, 23 ft/s through a 155 in2 opening. Air exits the compressor at 90 lbf/in2, 480 oF, 6.5 ft/s. Heat transfer from the compressor to its surroundings occurs at a rate of 2.8 Btu/s. Determine the power input required for the compressor, hp

  • Problem 2 20) Air enters a compressor operating at steady state at 280 K and exits...

    Problem 2 20) Air enters a compressor operating at steady state at 280 K and exits at a higher pressure and a higher temperature of 1020 K. Specitic heat at constant pressure for air is a constant and equal to 1.003 kJkg K. The mass flow rate is 01 kg's. If the compressor consumes electric power 77 kW Neglect kinetic and potential energy effects and assume air is ideal gas. Find (1) The rate of heat transfer between the compressor...

  • Air enters a diffuser operating at steady state at 540°R, 15 lbf/in.2, with a velocity of...

    Air enters a diffuser operating at steady state at 540°R, 15 lbf/in.2, with a velocity of 600 ft/s, and exits with a velocity of 60 ft/s. The ratio of the exit area to the inlet area is 8. Assuming the ideal gas model for the air and ignoring heat transfer, determine the temperature, in °R, and pressure, in lbf/in.2, at the exit.

  • Air enters a compressor operating at steady state at a pressure of 100 kPa, a temperature...

    Air enters a compressor operating at steady state at a pressure of 100 kPa, a temperature of 290 K, and with a mass flow rate of 0.72 kg/s. At the exit, the pressure is 700 kPa and the temperature is 450 K. Heat transfer from the compressor to its surroundings occurs at a rate of 3 kW. Kinetic and potential energy changes can be ignored. Determine the power input to the compressor, in kW. Assume that the air is an...

  • Steam enters a turbine operating at steady state at 700oF and 450 lbf/in2 and leaves as...

    Steam enters a turbine operating at steady state at 700oF and 450 lbf/in2 and leaves as a saturated vapor at 0.8 lbf/in2. The turbine develops 12,000 hp, and heat transfer from the turbine to the surroundings occurs at a rate of 2 x 106 Btu/h. Neglect kinetic and potential energy changes from inlet to exit. Determine the exit temperature, in oF, and the volumetric flow rate of the steam at the inlet, in ft3/s.

  • Problem 4.033 Air enters an uninsulated nozzle operating at steady state at 760°R with negligible velocity...

    Problem 4.033 Air enters an uninsulated nozzle operating at steady state at 760°R with negligible velocity and exits the nozzle at 520°R with a velocity of 1010 ft/s. Assuming ideal gas behavior and neglecting potential energy effects, determine the heat transfer per unit mass of air flowing, in Btu/lb. Btu/lb the tolerance is +/-2%

  • A compressor works on a pressure of 105 kPa and temperature 300 K in a Brayton...

    A compressor works on a pressure of 105 kPa and temperature 300 K in a Brayton cycle and has an efficiency of 45%. The exhaust temperature is 700 K. Find the pressure ratio and the specific heat addition by the combustion for this cycle. The inlet pressure of an air compressor is 100 kPa, with temperature 290 K, and brings it to 600 kPa, after which the air is cooled in an intercooler to 330K by heat transfer to the...

  • 1. Similar to Problem 8-70 Air enters a compressor at ambient conditions of 15 psia and...

    1. Similar to Problem 8-70 Air enters a compressor at ambient conditions of 15 psia and 50°F with a low velocity and exits at 150 psia, 620°F, and 350 ft/s. The compressor is cooled by the ambient air at 50°F at a rate of 1500 Btu/min. The power input to the compressor is 1000 hp. Determine (a) the mass flow rate of air and (b) the portion of the power input that is used just to overcome the irreversibilities. WRITE...

  • Problem 12.043 SI Air enters a compressor operating at steady state at 50°C, 0.9 bar, 70%...

    Problem 12.043 SI Air enters a compressor operating at steady state at 50°C, 0.9 bar, 70% relative humidity with a volumetric flow rate of 0.8 m3/s. The molst alr exits the compressor at 155°C, 1.5 bar Assuming the compressor is well insulated, determine: (a) the relative humidity at the exit, in percent (b) the magnitude of the power input, in kVW (c) the rate of entropy production, in kW/K

  • Air at 95°F, 1 atm, and 10% relative humidity enters an evaporative cooler operating at steady...

    Air at 95°F, 1 atm, and 10% relative humidity enters an evaporative cooler operating at steady state. The volumetric flow rate of the incoming air is 895 ft3/min. Liquid water at 68°F enters the cooler and fully evaporates. Moist air exits the cooler at 70°F, 1 atm. There is no significant heat transfer between the device and its surroundings and kinetic and potential energy effects can be neglected. a)Determine the mass flow rate of the dry air in lb(dry air)/min....
