Steam enters a turbine at a flow rate of 7.5 kg/s at a temperature of 600°C...

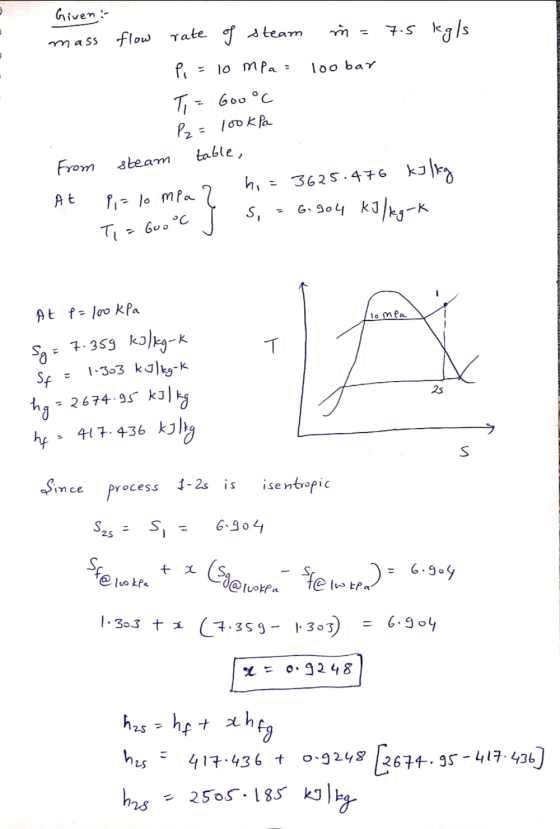

Steam enters a turbine at a flow rate of 7.5 kg/s at a temperature of 600°C and a pressure of 10 MPa. The steam exits at a pressure of 100 kPa. The isoentropic efficiency of the turbine is 0.80. Determine the power output from the turbine, assuming that it is insulated
Homework Answers

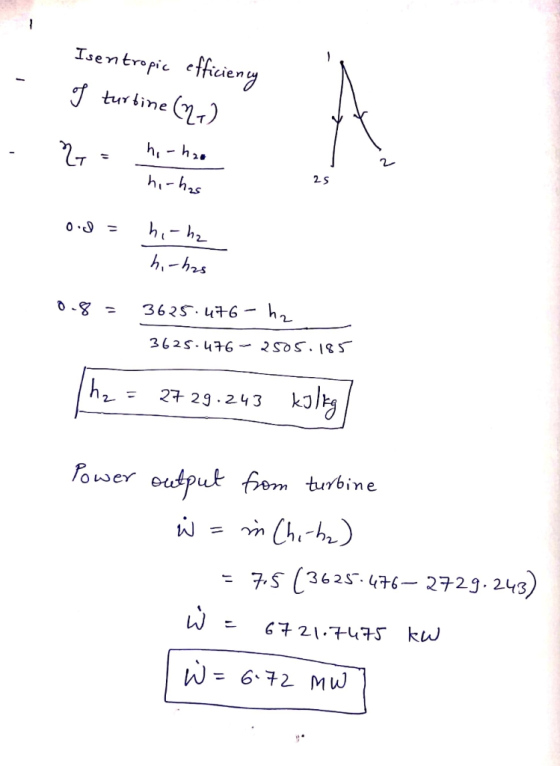

power output from turbine will
be 6.72 MWAdd Answer to:
