Write a structural formula for each of the following: a. hexanoic acid b. 4-bromo-3-methylpentanoic acid c. ...

Question

Question

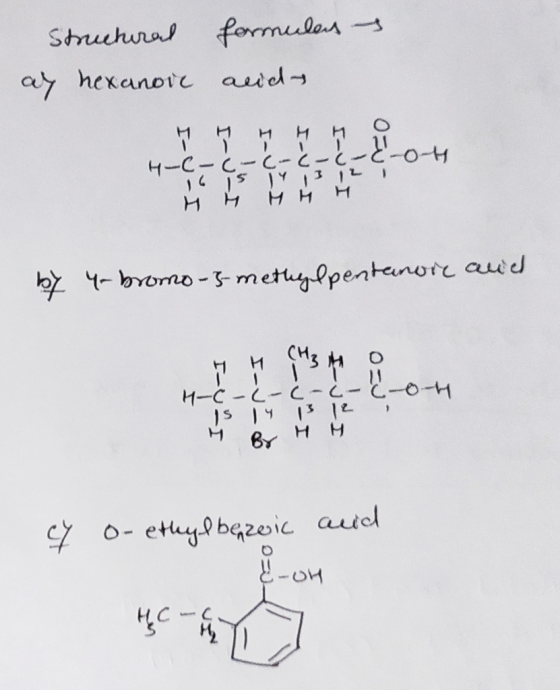

Write a structural formula for each of the following:

a. hexanoic acid

b. 4-bromo-3-methylpentanoic acid

c. o-ethylbenzoic acid

science chemistry

Answer 1

Answer #1

Answer 2
