Consider the following logic: F = ΣW,X,Y,Z (0x1, 0x5, 0x8, 0xA, 0xB, 0xC, 0xE, 0xF). And 0x2, 0x4 and 0x6 are “don't care” cases.

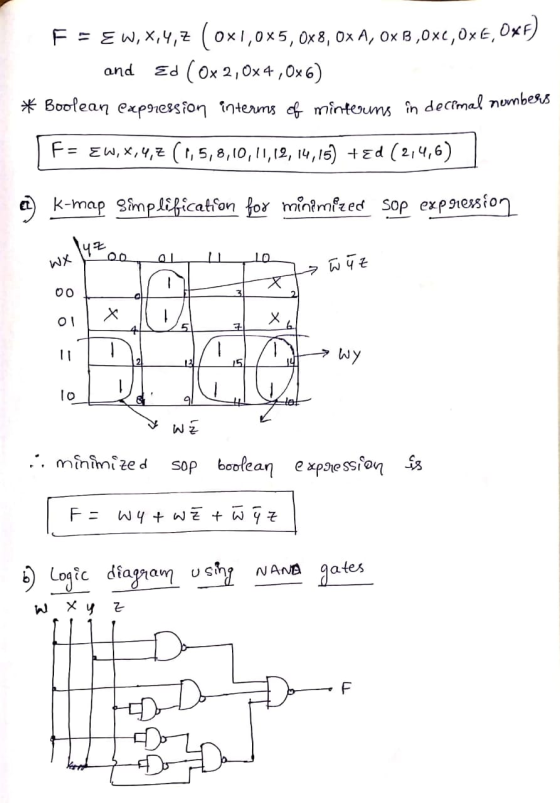

a) Draw a K-map and write a minimized SOP expression for this circuit. Include grouping circles for a minimized SOP expression.
b) Draw the minimized SOP circuit using only NAND gates.

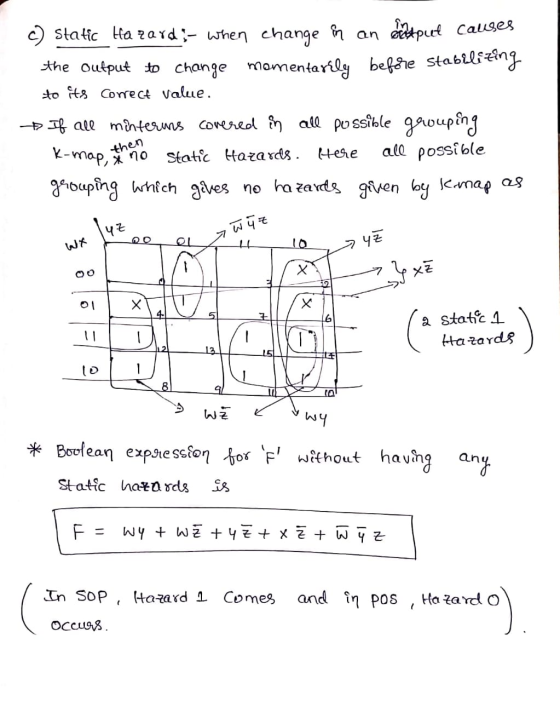

c) Are there any static hazards? If so, write the Boolean expression to resolve any static hazards?
Consider the following logic: F = ΣW,X,Y,Z (0x1, 0x5, 0x8, 0xA, 0xB, 0xC, 0xE, 0xF). And...
X 1. Determine the truth table for the above circuit. A B C 0 0 0 0 0 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 111 2. Determine the Karnaugh Map for the above circuit and do both an SOP minimization (the left KAI) and a POS minimization (the right KM). Write the minimized Boolean expressions below the corresponding Karnaugh Map BC ВС 00 01 11 10 00 01 11 10 0...
Name Use SOP, to find Boolean equation for the outputs X, Y, z Construct a logic circuit using AND, OR, and Inverter (NOT) gates which implements the Boolean equations Substitute your logic circuits with NAND gates only, simplify the circuit. 1. 2. 3. Input Outputs A B C 0 0 0 0 0 0 0 0 011 0 0 0
Implement the Boolean function F(w,x,y,z) = Σm(3, 4, 5, 1 1, 12, 13, 14, 15) using a minimum number of NAND gates only. Write the minimal logic expression (no need to draw the circuit).
Q2: 1. Proof this Boolean expression. Use Boolean Algebra (X+Y). (Z+W).(X'+Y+W) = Y.Z+X.W+Y.W 2. For this BF F(X,,Z)=((XYZ)(X +Z))(X+Y) • Design the digital circuit Derive the Boolean Function of X, Y, Z. Simplify the Function Derive the truth table before and after simplification. Derive the BF F(X,Y,Z) as Maxterms (POS) and miterms (SOP). Implement the F(X,Y,Z) after simplification using NAND gates only. Implement the F(X,Y,Z) after simplification using OR NOR gates only.
Write the Boolean expression that implements the function, F(W,X,Y,Z) = ∑m(1,7,8,10,13) as a 4. NAND-NAND circuit 5. OR-NAND circuit 6. NOR-OR 7. Construct the truth table, K-map minimization, boolean expressions and circuit diagrams for all output bits of a circuit that performs 1’s complement of a 4-bit binary number. Assume overflow bits are lost:
The following logic function is given as a sum of minterms F(W,X,Y,Z) = ∑W,X,Y,Z(2,7,10,13,14) + d(5,6,15) a) Draw the K-map for the given function F. b) What is the minimized SOP equation? c) Give all input pairs in the form of WXYZ where a transition between them would create a timing hazard. d) Draw the timing diagram showing the hazard for one of the cases. Assume ALL gate delays are equal. e) Provide the expression of an equivalent logic function...
Computer Science: Computer Architecture 3. Do the following problems: Consider a circuit with 4 binary inputs. It counts the number of 1’s on its input and expresses (encodes or represents) the count as binary values on 2 output lines. a. Draw a truth table to represent the functions of the circuit. b. Provide SOP expressions for the output lines. c. Simplify the SOP expressions. d. Implement the circuit using 2-input NAND gates. 4. do the fowolling problems: a. Verify: xyz...
Please help with computer science Consider the following truth table, where X, Y, and Z are Boolean variable inputs and W is a Boolean-valued result: X Y Z W 0 0 0 1 0 0 1 0 0 1 0 1 0 1 1 1 1 0 0 1 1 0 1 0 1 1 0 0 1 1 1 0 Write an expression for the above table using ~&|. Consider the following truth table, where X, Y, and Z...
1. (15 pts) Simplify the following Boolean functions using K-maps: a. F(x,y,z) = (1,4,5,6,7) b. F(x, y, z) = (xy + xyz + xyz c. F(A,B,C,D) = 20,2,4,5,6,7,8,10,13,15) d. F(A,B,C,D) = A'B'C'D' + AB'C + B'CD' + ABCD' + BC'D e. F(A,B,C,D,E) = (0,1,4,5,16,17,21,25,29) 2. (12 pts) Consider the combinational logic circuit below and answer the following: a. Derive the Boolean expressions for Fi and F2 as functions of A, B, C, and D. b. List the complete truth table...
