A concave mirror has a radius of curvature of 1.54 m. Calculate the position of the...

Question

Question

A concave mirror has a radius of curvature of 1.54 m.

Calculate the position of the image produced when an object is placed 3 m from the mirror.

Answer in units of m.

Calculate the position of the image when an object is placed 0.416 m from the mirror.

Answer in units of m.

science physics

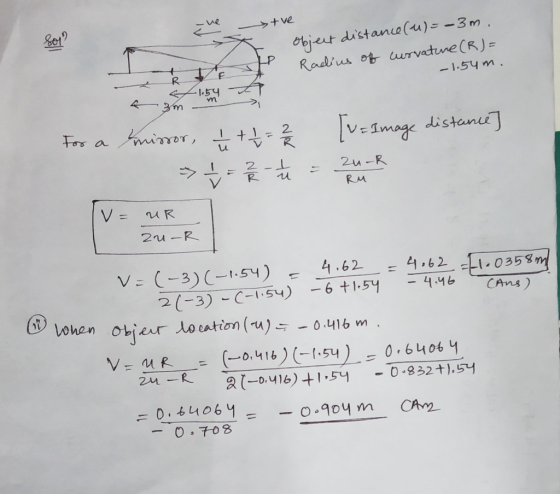

Answer 1

Answer #1

Answer 2
