Question

1. Using C#, create a form-based program that will accept the following data and then store the data (in a pipe delimited file).
   1. full name
   2. street address
   3. apartment number
   4. City
   5. state
   6. zip

Add ten records and store the data one line per record in one text file. Create a button that will read the file, parse the data and print each record on a separate line in a datagridview box. Since the pipes indicate the begin and end of each value, do not print them. Include appropriate exception-handling techniques in your solution.

Answer 1

Main code

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.IO;

namespace Write_into_file_and_read_from_file
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}

private void btnAdd_Click(object sender, EventArgs e)
{
if (txtAddress.Text == "" && txtAptNumber.Text == "" || txtCity.Text == "" || txtName.Text == "" || txtState.Text == "" || txtZip.Text == "")
{
MessageBox.Show("Please enter all the recodrds.");
}
else
{
using (StreamWriter w = File.AppendText("myFile.txt"))
{
w.WriteLine(txtName.Text+"|"+txtAddress.Text+"|"+txtAptNumber.Text+"|"+txtCity.Text+"|"+txtState.Text+"|"+txtZip.Text);
}
MessageBox.Show("Record added to file.");
}
}

private void btnRead_Click(object sender, EventArgs e)
{
try
{
string line;
System.IO.StreamReader file = new System.IO.StreamReader(Application.StartupPath + "\\myFile.txt");


while ((line = file.ReadLine()) != null)
{
string[] strArray = line.Split('|');
dataGridNameList.Rows.Add(strArray[0], strArray[1], strArray[2], strArray[3], strArray[4], strArray[5]);
}
}
catch (Exception )
{
MessageBox.Show("File not found");
}
}

private void Form1_Load(object sender, EventArgs e)
{

}
}
}

Form1.Designer.cs

namespace Write_into_file_and_read_from_file
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;

/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}

#region Windows Form Designer generated code

/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.txtName = new System.Windows.Forms.TextBox();
this.txtAddress = new System.Windows.Forms.TextBox();
this.txtAptNumber = new System.Windows.Forms.TextBox();
this.txtCity = new System.Windows.Forms.TextBox();
this.txtState = new System.Windows.Forms.TextBox();
this.txtZip = new System.Windows.Forms.TextBox();
this.label1 = new System.Windows.Forms.Label();
this.label2 = new System.Windows.Forms.Label();
this.label3 = new System.Windows.Forms.Label();
this.label4 = new System.Windows.Forms.Label();
this.label5 = new System.Windows.Forms.Label();
this.label6 = new System.Windows.Forms.Label();
this.btnAdd = new System.Windows.Forms.Button();
this.btnRead = new System.Windows.Forms.Button();
this.dataGridNameList = new System.Windows.Forms.DataGridView();
this.Column1 = new System.Windows.Forms.DataGridViewTextBoxColumn();
this.Column2 = new System.Windows.Forms.DataGridViewTextBoxColumn();
this.Column3 = new System.Windows.Forms.DataGridViewTextBoxColumn();
this.Column4 = new System.Windows.Forms.DataGridViewTextBoxColumn();
this.Column5 = new System.Windows.Forms.DataGridViewTextBoxColumn();
this.Column6 = new System.Windows.Forms.DataGridViewTextBoxColumn();
((System.ComponentModel.ISupportInitialize)(this.dataGridNameList)).BeginInit();
this.SuspendLayout();
//
// txtName
//
this.txtName.Location = new System.Drawing.Point(262, 47);
this.txtName.Name = "txtName";
this.txtName.Size = new System.Drawing.Size(143, 20);
this.txtName.TabIndex = 0;
//
// txtAddress
//
this.txtAddress.Location = new System.Drawing.Point(262, 87);
this.txtAddress.Name = "txtAddress";
this.txtAddress.Size = new System.Drawing.Size(143, 20);
this.txtAddress.TabIndex = 1;
//
// txtAptNumber
//
this.txtAptNumber.Location = new System.Drawing.Point(262, 126);
this.txtAptNumber.Name = "txtAptNumber";
this.txtAptNumber.Size = new System.Drawing.Size(143, 20);
this.txtAptNumber.TabIndex = 2;
//
// txtCity
//
this.txtCity.Location = new System.Drawing.Point(262, 163);
this.txtCity.Name = "txtCity";
this.txtCity.Size = new System.Drawing.Size(143, 20);
this.txtCity.TabIndex = 3;
//
// txtState
//
this.txtState.Location = new System.Drawing.Point(262, 201);
this.txtState.Name = "txtState";
this.txtState.Size = new System.Drawing.Size(143, 20);
this.txtState.TabIndex = 4;
//
// txtZip
//
this.txtZip.Location = new System.Drawing.Point(262, 242);
this.txtZip.Name = "txtZip";
this.txtZip.Size = new System.Drawing.Size(143, 20);
this.txtZip.TabIndex = 5;
//
// label1
//
this.label1.AutoSize = true;
this.label1.Location = new System.Drawing.Point(181, 50);
this.label1.Name = "label1";
this.label1.Size = new System.Drawing.Size(54, 13);
this.label1.TabIndex = 6;
this.label1.Text = "Full Name";
//
// label2
//
this.label2.AutoSize = true;
this.label2.Location = new System.Drawing.Point(159, 94);
this.label2.Name = "label2";
this.label2.Size = new System.Drawing.Size(76, 13);
this.label2.TabIndex = 7;
this.label2.Text = "Street Address";
//
// label3
//
this.label3.AutoSize = true;
this.label3.Location = new System.Drawing.Point(142, 129);
this.label3.Name = "label3";
this.label3.Size = new System.Drawing.Size(93, 13);
this.label3.TabIndex = 8;
this.label3.Text = "Apartment number";
//
// label4
//
this.label4.AutoSize = true;
this.label4.Location = new System.Drawing.Point(211, 170);
this.label4.Name = "label4";
this.label4.Size = new System.Drawing.Size(24, 13);
this.label4.TabIndex = 9;
this.label4.Text = "City";
//
// label5
//
this.label5.AutoSize = true;
this.label5.Location = new System.Drawing.Point(203, 204);
this.label5.Name = "label5";
this.label5.Size = new System.Drawing.Size(32, 13);
this.label5.TabIndex = 10;
this.label5.Text = "State";
//
// label6
//
this.label6.AutoSize = true;
this.label6.Location = new System.Drawing.Point(211, 249);
this.label6.Name = "label6";
this.label6.Size = new System.Drawing.Size(22, 13);
this.label6.TabIndex = 11;
this.label6.Text = "Zip";
//
// btnAdd
//
this.btnAdd.Location = new System.Drawing.Point(93, 304);
this.btnAdd.Name = "btnAdd";
this.btnAdd.Size = new System.Drawing.Size(75, 23);
this.btnAdd.TabIndex = 12;
this.btnAdd.Text = "Add";
this.btnAdd.UseVisualStyleBackColor = true;
this.btnAdd.Click += new System.EventHandler(this.btnAdd_Click);
//
// btnRead
//
this.btnRead.Location = new System.Drawing.Point(411, 304);
this.btnRead.Name = "btnRead";
this.btnRead.Size = new System.Drawing.Size(75, 23);
this.btnRead.TabIndex = 13;
this.btnRead.Text = "Read";
this.btnRead.UseVisualStyleBackColor = true;
this.btnRead.Click += new System.EventHandler(this.btnRead_Click);
//
// dataGridNameList
//
this.dataGridNameList.ColumnHeadersHeightSizeMode = System.Windows.Forms.DataGridViewColumnHeadersHeightSizeMode.AutoSize;
this.dataGridNameList.Columns.AddRange(new System.Windows.Forms.DataGridViewColumn[] {
this.Column1,
this.Column2,
this.Column3,
this.Column4,
this.Column5,
this.Column6});
this.dataGridNameList.Location = new System.Drawing.Point(47, 352);
this.dataGridNameList.Name = "dataGridNameList";
this.dataGridNameList.Size = new System.Drawing.Size(536, 150);
this.dataGridNameList.TabIndex = 14;
//
// Column1
//
this.Column1.HeaderText = "Name";
this.Column1.Name = "Column1";
//
// Column2
//
this.Column2.HeaderText = "Sreet Address";
this.Column2.Name = "Column2";
//
// Column3
//
this.Column3.HeaderText = "Apartment Number";
this.Column3.Name = "Column3";
//
// Column4
//
this.Column4.HeaderText = "City";
this.Column4.Name = "Column4";
//
// Column5
//
this.Column5.HeaderText = "State";
this.Column5.Name = "Column5";
//
// Column6
//
this.Column6.HeaderText = "Zip";
this.Column6.Name = "Column6";
//
// Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(617, 514);
this.Controls.Add(this.dataGridNameList);
this.Controls.Add(this.btnRead);
this.Controls.Add(this.btnAdd);
this.Controls.Add(this.label6);
this.Controls.Add(this.label5);
this.Controls.Add(this.label4);
this.Controls.Add(this.label3);
this.Controls.Add(this.label2);
this.Controls.Add(this.label1);
this.Controls.Add(this.txtZip);
this.Controls.Add(this.txtState);
this.Controls.Add(this.txtCity);
this.Controls.Add(this.txtAptNumber);
this.Controls.Add(this.txtAddress);
this.Controls.Add(this.txtName);
this.Name = "Form1";
this.Text = "Form1";
this.Load += new System.EventHandler(this.Form1_Load);
((System.ComponentModel.ISupportInitialize)(this.dataGridNameList)).EndInit();
this.ResumeLayout(false);
this.PerformLayout();

}

#endregion

private System.Windows.Forms.TextBox txtName;
private System.Windows.Forms.TextBox txtAddress;
private System.Windows.Forms.TextBox txtAptNumber;
private System.Windows.Forms.TextBox txtCity;
private System.Windows.Forms.TextBox txtState;
private System.Windows.Forms.TextBox txtZip;
private System.Windows.Forms.Label label1;
private System.Windows.Forms.Label label2;
private System.Windows.Forms.Label label3;
private System.Windows.Forms.Label label4;
private System.Windows.Forms.Label label5;
private System.Windows.Forms.Label label6;
private System.Windows.Forms.Button btnAdd;
private System.Windows.Forms.Button btnRead;
private System.Windows.Forms.DataGridView dataGridNameList;
private System.Windows.Forms.DataGridViewTextBoxColumn Column1;
private System.Windows.Forms.DataGridViewTextBoxColumn Column2;
private System.Windows.Forms.DataGridViewTextBoxColumn Column3;
private System.Windows.Forms.DataGridViewTextBoxColumn Column4;
private System.Windows.Forms.DataGridViewTextBoxColumn Column5;
private System.Windows.Forms.DataGridViewTextBoxColumn Column6;
}
}

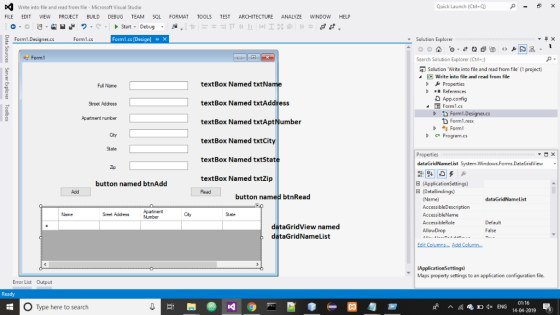

Design

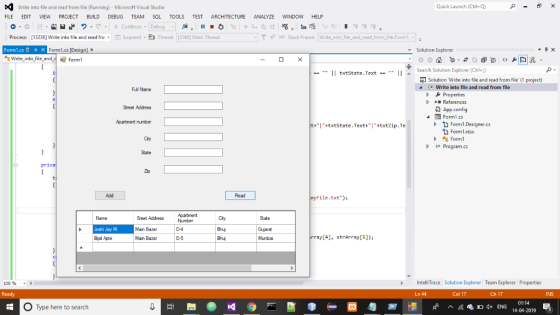

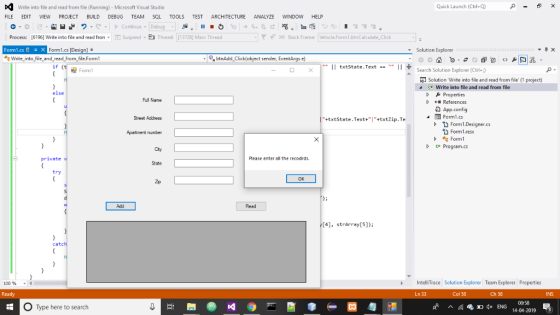

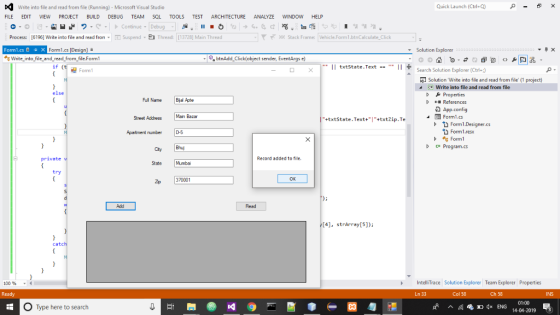

output
