Determine the equilibrium electron and hole concentrations for a given doping concentration. Consider an n-type silicon...

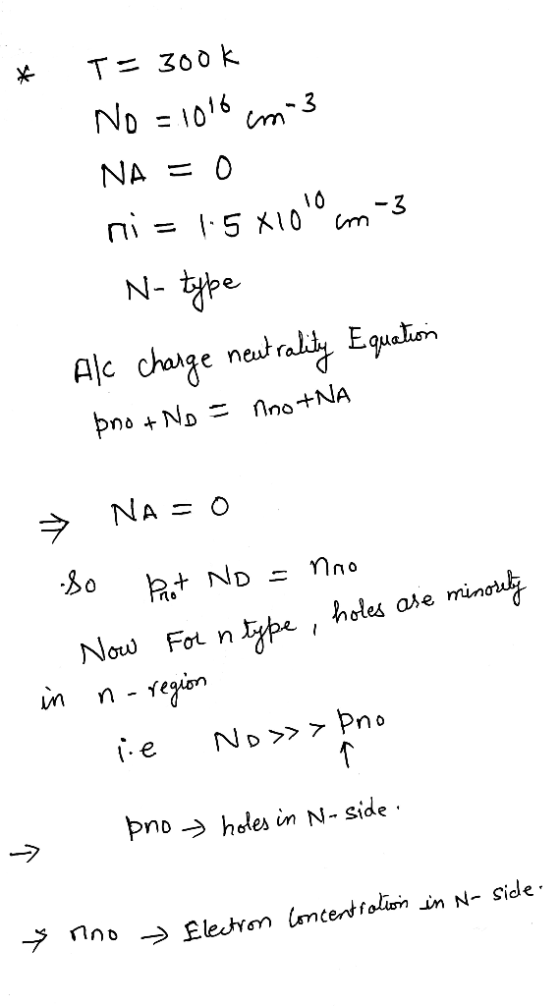

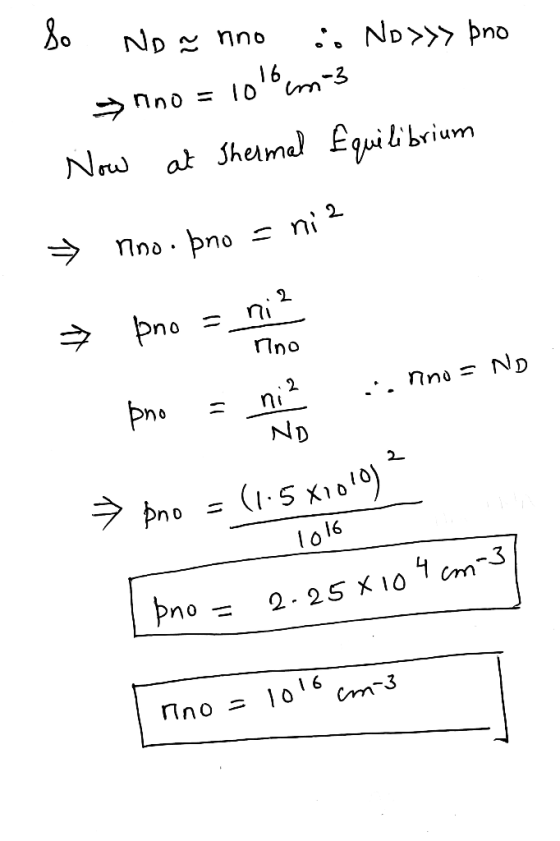

Determine the equilibrium electron and hole concentrations for a given doping concentration. Consider an n-type silicon semiconductor at T=300K in which Nd=1016cm-3 and Na=0. The intrinsic carrier concentration is assumed to be ni=1.5x1010cm-3. (15)
Homework Answers
Add Answer to:
Determine the equilibrium electron and hole concentrations for a
given doping concentration. Consider an n-type silicon...
P4. a. Consider Si doped with P at 2x10^16 cm^-3. determine the carrier concentrations ni, p,...
P4. a. Consider Si doped with P at 2x10^16 cm^-3. determine the carrier concentrations ni, p, and n at T = 300 K. b. Consider a semiconductor with ni = 2.4x10^13cm-3 that is doped such that ND=5x10^13cm^-3. Determine the carrier concentrations n and p. c. Consider a compensation Ge semiconductor with ni = 2.4x10^13 cm^-3 doped at concentration NA=5x10^13 cm^-3. Determine the thermal equilibrium carrier concentration n and p.
A n-type silicon crystal has 10^16 cm-3 of doping impurities. At equilibrium and at room temperature...
A n-type silicon crystal has 10^16 cm-3 of doping impurities. At equilibrium and at room temperature (T = 300 K) what the electron and hole concentrations. Indicate which constitutes the majority carriers
For n-type silicon at room temperature, with a donor doping concentration of 10^(17) cm^(-3), approximately how...
For n-type silicon at room temperature, with a donor doping concentration of 10^(17) cm^(-3), approximately how much larger will be the electron concentration, compared to the hole concentration? Assuming ni=10^(10) cm^(-3).
1. Consider a p*n silicon diode at T-300 K with doping concentrations of N 10 cin...
1. Consider a p*n silicon diode at T-300 K with doping concentrations of N 10 cin and N-101 cm-3. The minority carier hole diffusion coefficient is D 12 cm2/s and the minority carrier hole lifetime is po 10-7 s. The cross sectional area is A 10- cm2. Calculate the reverse saturation current and the diode current at a forward-bias voltage of 0.50v A germanium p* n diode at T-300 K has the following parameters: Na 108 cm-3 N,--1016 cm", ,...
3. A silicon step junction has uniform impurity doping concentrations of N. 5 x 1015 cm-3 and Nd ...
3. A silicon step junction has uniform impurity doping concentrations of N. 5 x 1015 cm-3 and Nd = 1 x 1015 cm-, and a cross-sectional area of A-|0-4 cm2. Let tao -0.4 s and tpo 0.1 us. Consider the geometry in Figure.Calculate (a) the ideal reverse saturation current due to holes, (b) the ideal reverse saturation current due to electrons, (c) the hole concentration at a, if V V and (d) the electron current at x = x" +...
Applied quantum mechanics 1. Calculate the carrier concentrations (p and n) for Si at 300k for...
Applied quantum mechanics
1. Calculate the carrier concentrations (p and n) for Si at
300k for the following doping concentrations:
2.
(a) ND = 1015/cm3
(b) NA = 1018/cm3
(c) ND = 5 x 1017/cm3
Calculate the majority and minority carriers for each side of
an N+P junction if ND = 2 x 1017/cm3 for the n-side, and NA =
1014/cm3 for the p-side.
Assume the semiconductor is Si and the temperature is
300K.
3. Determine the energy of:
(a)...
P3. For an ideal abrupt silicon (Si) P*N diode with doping concentrations Na = 1 x...
P3. For an ideal abrupt silicon (Si) P*N diode with doping concentrations Na = 1 x 107 cm3 and N 1 x 105 cm. (a) Find the stored minority carriers density in the N-side neutral region (infinitely long comparing with Lp and Ln) when a forward bias of 1 V is applied. (b) Calculate the hole current density in the region of (a) at x, 0. (Assume the average diffusion length of hole is 5 um the average carrier life...
P3. For an ideal abrupt silicon (Si) P*N diode with doping concentrations Na = 1 x...
P3. For an ideal abrupt silicon (Si) P*N diode with doping concentrations Na = 1 x 107 cm3 and N 1 x 105 cm. (a) Find the stored minority carriers density in the N-side neutral region (infinitely long comparing with Lp and Ln) when a forward bias of 1 V is applied. (b) Calculate the hole current density in the region of (a) at x, 0. (Assume the average diffusion length of hole is 5 um the average carrier life...
Problem 1 Using what we have leamed in chapter 1, derive, for a semiconductor, the expressions of...
Problem 1 Using what we have leamed in chapter 1, derive, for a semiconductor, the expressions of The total current density Conductivity - Problem 2 Consider Germanium sample with the following characteristics the electron and hole mobility for Ge is 0.39 and 0.19 m2N.s The electron and hole effectives masses are 0.56me and 0.4 me The energy gap is 0.67 eV at T-27°C 1) 2) Find the intrinsic carrier concentration for Ge What is the resistivity of the Ge sample...
Module 6: Temperature Dependence of n andp Worksheet Concept Map: Equilibrium carrier densities and Temperature. To...
Module 6: Temperature Dependence of n andp Worksheet Concept Map: Equilibrium carrier densities and Temperature. To Do: 1) Assume ND-NA-E+15cm-3, in two different slabs of semiconductor (1 each doping type). Plot n/ND, p/Na at 100K, 300K, 500K for each wafer. These should be equivalent to freeze out-intrinsic plot discussed in Lecture.
1. Consider a p*n silicon diode at T-300 K with doping concentrations of N 10 cin and N-101 cm-3. The minority carier hole diffusion coefficient is D 12 cm2/s and the minority carrier hole lifetime is po 10-7 s. The cross sectional area is A 10- cm2. Calculate the reverse saturation current and the diode current at a forward-bias voltage of 0.50v A germanium p* n diode at T-300 K has the following parameters: Na 108 cm-3 N,--1016 cm", ,...
3. A silicon step junction has uniform impurity doping concentrations of N. 5 x 1015 cm-3 and Nd = 1 x 1015 cm-, and a cross-sectional area of A-|0-4 cm2. Let tao -0.4 s and tpo 0.1 us. Consider the geometry in Figure.Calculate (a) the ideal reverse saturation current due to holes, (b) the ideal reverse saturation current due to electrons, (c) the hole concentration at a, if V V and (d) the electron current at x = x" +...
Applied quantum mechanics
1. Calculate the carrier concentrations (p and n) for Si at
300k for the following doping concentrations:
2.
(a) ND = 1015/cm3
(b) NA = 1018/cm3
(c) ND = 5 x 1017/cm3
Calculate the majority and minority carriers for each side of
an N+P junction if ND = 2 x 1017/cm3 for the n-side, and NA =
1014/cm3 for the p-side.
Assume the semiconductor is Si and the temperature is
300K.
3. Determine the energy of:
(a)...
P3. For an ideal abrupt silicon (Si) P*N diode with doping concentrations Na = 1 x 107 cm3 and N 1 x 105 cm. (a) Find the stored minority carriers density in the N-side neutral region (infinitely long comparing with Lp and Ln) when a forward bias of 1 V is applied. (b) Calculate the hole current density in the region of (a) at x, 0. (Assume the average diffusion length of hole is 5 um the average carrier life...
P3. For an ideal abrupt silicon (Si) P*N diode with doping concentrations Na = 1 x 107 cm3 and N 1 x 105 cm. (a) Find the stored minority carriers density in the N-side neutral region (infinitely long comparing with Lp and Ln) when a forward bias of 1 V is applied. (b) Calculate the hole current density in the region of (a) at x, 0. (Assume the average diffusion length of hole is 5 um the average carrier life...
Problem 1 Using what we have leamed in chapter 1, derive, for a semiconductor, the expressions of The total current density Conductivity - Problem 2 Consider Germanium sample with the following characteristics the electron and hole mobility for Ge is 0.39 and 0.19 m2N.s The electron and hole effectives masses are 0.56me and 0.4 me The energy gap is 0.67 eV at T-27°C 1) 2) Find the intrinsic carrier concentration for Ge What is the resistivity of the Ge sample...
Module 6: Temperature Dependence of n andp Worksheet Concept Map: Equilibrium carrier densities and Temperature. To Do: 1) Assume ND-NA-E+15cm-3, in two different slabs of semiconductor (1 each doping type). Plot n/ND, p/Na at 100K, 300K, 500K for each wafer. These should be equivalent to freeze out-intrinsic plot discussed in Lecture.
