A 1 km steel railroad rail is fastened securely at both ends when the temperature is...

A 1 km steel railroad rail is fastened securely at both ends when the temperature is 20 C. As the temperature increases, the rail begins to buckle. When the temperature is 25 C how high is the buckle assuming it is triangular in shape?

(The linear coefficient of expansion for steel is 11 X 10-6 K-1 )

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

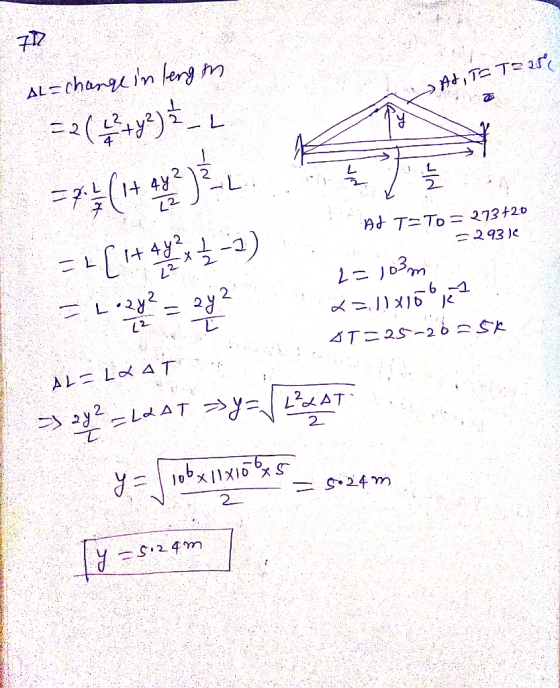

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A 1 km steel railroad rail is fastened securely at both ends when the temperature is...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A steel railroad track has a length of 24 m when the temperature is 8◦C. What...

    A steel railroad track has a length of 24 m when the temperature is 8◦C. What is the increase in the length of the rail on a hot day when the temperature is 36 ◦C? The linear expansion steel is 11 × 10−6 (◦C)−1. Answer in units of m. 004 (part 2 of 2) 10.0 points Suppose the ends of the rail are rigidly clamped at 8◦C to prevent expansion. Calculate the thermal stress in the rail if its temperature...

  • A segment of steel railroad track has a length of 30.000 m when the temperature is...

    A segment of steel railroad track has a length of 30.000 m when the temperature is 0.0°C. (a) What is its length when the temperature is 40.0°C? SOLUTION Conceptualize Because the rail is relatively long, we expect to obtain a measurable increase in length for a 40°C temperature increase. problem Categorize We will evaluate a length increase using the discussion of this section, so this part of the example is an analysis Use AL aLAT and the value of the...

  • Consider a 40,000 km steel pipe in the shape of a ring that fits snugly all...

    Consider a 40,000 km steel pipe in the shape of a ring that fits snugly all around the circumference of the Earth. We are heating now the ring so its temperature increased by 1 degree C. Now, the pipe will no longer be snug. How high the ring will now stand above ground level? (Make as many simplifications as necessary). Data: Coefficient of linear expansion for steel is 11*10-6 /degree C. This means, for example, that a 1-meter bar of...

  • A railroad track la made of individual rails of steel each 29 feet in length. By...

    A railroad track la made of individual rails of steel each 29 feet in length. By what length would one rail change from a cold winter day when the temperature is -10 degree Cto a hot summer day at 30 degree C? (1 m. 3.281 ).(1km = 1000m) (5280 ft = 1 mile) (1 mile = 1.609 km) TABLE 14.1. Coefficients of linear expansion for selected materials Material a (K 'or C-1) Quartz (fused) 0.04 x 10 Invar (nickel- iron...

  • Older railroad tracks in the U.S. are made of 12-m-long pieces of steel. When the tracks...

    Older railroad tracks in the U.S. are made of 12-m-long pieces of steel. When the tracks are laid, gaps are left between sections to prevent buckling when the steel termally expands. If a track is laid at 16*C, how large should the gaps be if the track is not to buckle when the temperature is as high as 50*C?

  • Older railroad tracks in the U.S. are made of 12-m-long pieces of steel. When the tracks...

    Older railroad tracks in the U.S. are made of 12-m-long pieces of steel. When the tracks are laid, gaps are left between the sections to prevent buckling when the steel thermally expands. Part A If a track is laid at 16∘C, how large should the gaps be if the track is not to buckle when the temperature is as high as 50∘C?

  • er: 2. When the temperature of the steel plate with the hole in it is increased,...

    er: 2. When the temperature of the steel plate with the hole in it is increased, (a) the width W will ? increase ? decrease remain unchanged. (b) the thickness T will ? increase ? decrease ? remain unchanged. (c) the diameter D of the hole will increase decrease remain unchanged (d) the density ? of the plate will € increase ? decrease remain unchanged. + . w 3. On a July day in Wisconsin, the temperature of a length...

  • A building made with a steel structure is 650 m high on a winter day when...

    A building made with a steel structure is 650 m high on a winter day when the temperature is 0° F. How much taller (in cm) is the building when it is 100° F? (The linear expansion coefficient of steel is 11 10-6 (°C)-1.) 36 46 40 65 71

  • The coefficient of linear expansion of steel is 12 × 10-6 K-1. What is the change...

    The coefficient of linear expansion of steel is 12 × 10-6 K-1. What is the change in length of a 25-m steel bridge span when it undergoes a temperature change of 40 K from winter to summer?

  • Part A A rod cf length L is clamped rigidly at both ends. Its temperature increases by an amount AT, and in the ensuing...

    Part A A rod cf length L is clamped rigidly at both ends. Its temperature increases by an amount AT, and in the ensuing expansion it cracka to form two atraight pieces, s shown in the figure (Figure 1). coefficient of linour expansion a Find an expression for the distarioo d shown in the fiqure, in terrns of L0. AT. and AXh Reouest Answen Submit Provide Feedback Figure 1 of 1 Part A A rod cf length L is clamped...
