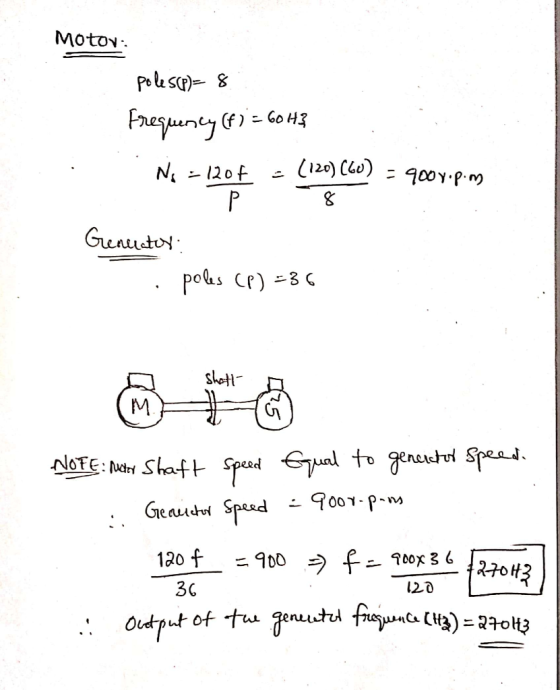

A motor with 8 poles is connected to a 60Hz source. If the output shaft of...
A motor with 8 poles is connected to a 60Hz source. If the output shaft of motor is connected to a 36-pole generator, what is the frequency of the electric output of the generator in Hz?
Homework Answers
Add Answer to:
A motor with 8 poles is connected to a 60Hz source. If the
output shaft of...
1 a Determine the synchronous speed of a motor that has a frequency of 60Hz and...
1 a Determine the synchronous speed of a motor that has a frequency of 60Hz and 12 poles. The synchronous speed of a 3-phase, 4-pole induction motor is 60 rev/s. Determine the frequency of the supply to the stator windings. The synchronous speed of a 3-phase induction motor is 25 rev/s and the frequency of the supply to the stator is 50 Hz. Calculate the equivalent number of pairs of poles of the motor. A 6-pole, 3-phase induction motor is...
3. Poles, speed a.) A motor-generator system can be used to converter power from 50Hz system...
3. Poles, speed a.) A motor-generator system can be used to converter power from 50Hz system to 60Hz system. Suppose a synchronous motor is mechanically connected with a synchronous motor to converter power from 50Hz to 60Hz. What is the relationship of the poles between the motor and generator?(5) b.) If the common shaft of the motor and generator is rotating at speed of 600r/min, what are the number of poles of the synchronous motor and synchronous generator?(10)
A synchronous generator with 4 poles has a rated output frequency of 60Hz. If the generator...
A synchronous generator with 4 poles has a rated output frequency of 60Hz. If the generator was initially producing 7,759 volts, then what will voltage be if speed drops 25% from rated speed while excitation remains unchanged and why?
Need detailed answer, big thanks! 2. A three-phase A-connected, 50 Hz, 400 V, 4 poles, induction...
Need detailed answer, big thanks!
2. A three-phase A-connected, 50 Hz, 400 V, 4 poles, induction motor has the following parameters for the exact equivalent circuit (per phase): R, 0.7 Q; x 1.4 Q; x 1.2 ; xy 50 -1600 ; R 0.54 2. The rotational loss is 300 W at rated current. The motor is supplied by an 8-pole synchronous generator, Y-connected, with a synchronous reactance of x 1.5 (per phase). The motor is operating at rated frequency, rated...
A 120-V (line-neutral) wye-connected 4-pole 60-Hz three-phase induction motor is operating at 100% of its 10-kW...
A 120-V (line-neutral) wye-connected 4-pole 60-Hz three-phase induction motor is operating at 100% of its 10-kW rated output shaft power at 5% slip. What is the frequency of the rotor electrical currents in Hz?
Problem! 13: An 8 Pole, 3 Phase induction motor is designed to operate with a 4...
Problem! 13: An 8 Pole, 3 Phase induction motor is designed to operate with a 4 % slip. Find output frequency of the Variable Frequency Drive that will achieve a motor shaft rotational the speed of 918 RPM. 480 V RMS 3 Phase 60 Hz VFD Output Frequency Induction MMotor A. 41.25 Hz B. 48.75 Hz C. 56.25 Hz D)63.75 Hz E. 71.25 Hz
Problem 3- At a location IMW of power at 50Hz is required, the only source available is at 60Hz. Pick a synchronous motor generator set to make this possible Problem 3- At a location IMW of...
Problem 3- At a location IMW of power at 50Hz is required, the only source available is at 60Hz. Pick a synchronous motor generator set to make this possible
Problem 3- At a location IMW of power at 50Hz is required, the only source available is at 60Hz. Pick a synchronous motor generator set to make this possible
b) A 1MW, 3300 V, 50 Hz, wye-connected, 3-ф, twenty four-pole, synchronous motor has a synchronous...
b) A 1MW, 3300 V, 50 Hz, wye-connected, 3-ф, twenty four-pole, synchronous motor has a synchronous reactance of 3.24 2 per phase. Assume armature resistance is negligible. This machine is connected to an infinite bus-bars at 3300 V. Its field excitation is adjusted to provide P.F-1 at rated load Calculate: 0 the internal generated voltage EA and armature current la at rated conditions (S marks) ii) the maximum power and torqu e that the motor can deliver with its Ir...
A 4 phase, 460 V, 60 Hz, 26.8 hp, 4 pole, Y-connected induction motor draws 25...
A 4 phase, 460 V, 60 Hz, 26.8 hp, 4 pole, Y-connected
induction motor draws 25 A at a power factor of 0.9 lagging. Core
loss is 900 W, stator copper loss is 1100W, friction and winding
losses are 300 W, and stray loss is neglected. The machine shaft
rotates at 1738 rpm. Calculate the air gap power and output load
torque
- [Induction Motor - 15 points) A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor...
S. A three-phase, 4-pole, Y-connected synchronous generator is rated 575V, 200k VA, 60Hz. The generator's synchronous...
S. A three-phase, 4-pole, Y-connected synchronous generator is rated 575V, 200k VA, 60Hz. The generator's synchronous reactance is X-0.Q. Losses are negligible. The generator is comnected to an ideal 575V three- phase 60 Hz bus. Use V, for phase a-to-neutral as the reference angle (a) The generator's input power is 150kW. The generator's field current is adjusted to 10A which caases the generator to operate at unity power factor. What is the generator's phase-a armature current Ia (magnitude and phase)?...
1 a Determine the synchronous speed of a motor that has a frequency of 60Hz and 12 poles. The synchronous speed of a 3-phase, 4-pole induction motor is 60 rev/s. Determine the frequency of the supply to the stator windings. The synchronous speed of a 3-phase induction motor is 25 rev/s and the frequency of the supply to the stator is 50 Hz. Calculate the equivalent number of pairs of poles of the motor. A 6-pole, 3-phase induction motor is...
3. Poles, speed a.) A motor-generator system can be used to converter power from 50Hz system to 60Hz system. Suppose a synchronous motor is mechanically connected with a synchronous motor to converter power from 50Hz to 60Hz. What is the relationship of the poles between the motor and generator?(5) b.) If the common shaft of the motor and generator is rotating at speed of 600r/min, what are the number of poles of the synchronous motor and synchronous generator?(10)
Need detailed answer, big thanks!
2. A three-phase A-connected, 50 Hz, 400 V, 4 poles, induction motor has the following parameters for the exact equivalent circuit (per phase): R, 0.7 Q; x 1.4 Q; x 1.2 ; xy 50 -1600 ; R 0.54 2. The rotational loss is 300 W at rated current. The motor is supplied by an 8-pole synchronous generator, Y-connected, with a synchronous reactance of x 1.5 (per phase). The motor is operating at rated frequency, rated...
Problem! 13: An 8 Pole, 3 Phase induction motor is designed to operate with a 4 % slip. Find output frequency of the Variable Frequency Drive that will achieve a motor shaft rotational the speed of 918 RPM. 480 V RMS 3 Phase 60 Hz VFD Output Frequency Induction MMotor A. 41.25 Hz B. 48.75 Hz C. 56.25 Hz D)63.75 Hz E. 71.25 Hz
Problem 3- At a location IMW of power at 50Hz is required, the only source available is at 60Hz. Pick a synchronous motor generator set to make this possible
Problem 3- At a location IMW of power at 50Hz is required, the only source available is at 60Hz. Pick a synchronous motor generator set to make this possible
b) A 1MW, 3300 V, 50 Hz, wye-connected, 3-ф, twenty four-pole, synchronous motor has a synchronous reactance of 3.24 2 per phase. Assume armature resistance is negligible. This machine is connected to an infinite bus-bars at 3300 V. Its field excitation is adjusted to provide P.F-1 at rated load Calculate: 0 the internal generated voltage EA and armature current la at rated conditions (S marks) ii) the maximum power and torqu e that the motor can deliver with its Ir...
A 4 phase, 460 V, 60 Hz, 26.8 hp, 4 pole, Y-connected
induction motor draws 25 A at a power factor of 0.9 lagging. Core
loss is 900 W, stator copper loss is 1100W, friction and winding
losses are 300 W, and stray loss is neglected. The machine shaft
rotates at 1738 rpm. Calculate the air gap power and output load
torque
- [Induction Motor - 15 points) A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor...
S. A three-phase, 4-pole, Y-connected synchronous generator is rated 575V, 200k VA, 60Hz. The generator's synchronous reactance is X-0.Q. Losses are negligible. The generator is comnected to an ideal 575V three- phase 60 Hz bus. Use V, for phase a-to-neutral as the reference angle (a) The generator's input power is 150kW. The generator's field current is adjusted to 10A which caases the generator to operate at unity power factor. What is the generator's phase-a armature current Ia (magnitude and phase)?...
