A natural gas power plant heat up water into steam to turn a turbine. The steam...
A natural gas power plant heat up water into steam to turn a turbine. The steam stream after the turbine contains 28,000 Btu/kg of energy. Find the mechanical energy of the turbine and the efficiency of the system. Note natural gas has a thermal energy of 48,000 Btu/kg.
Homework Answers

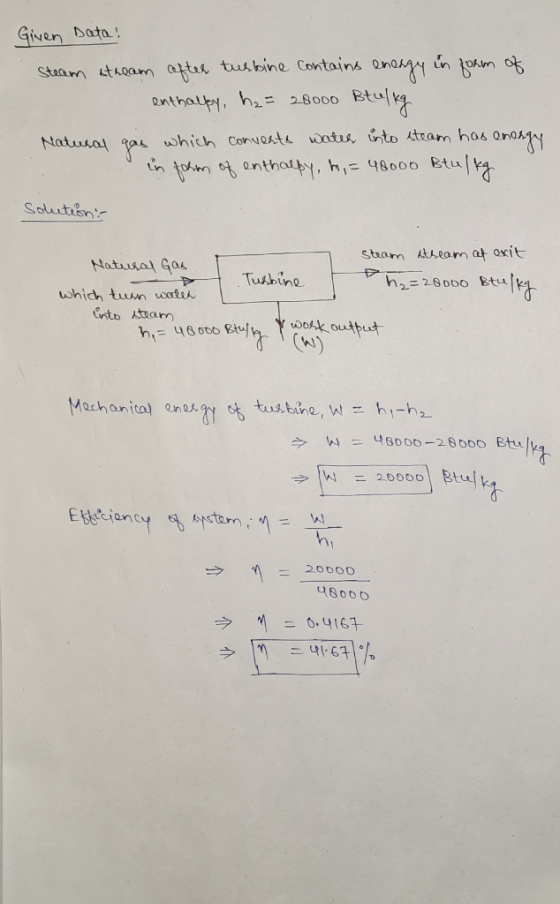

I have solved the problem so
if you are satisfied with the solution then please upvote the
solution.
Thanks.
