I neerd help with this Scilab program yo calculate the derivatives of this function between 0...

I neerd help with this Scilab program yo calculate the derivatives of this function between 0 and 2pi with step size 0,1;

y=sin(e^1.3cos(x))+1

Have to use mprintf(), modulo() and loop to out put in this format

xdata ydata xdata ydata

__________________________________

0.00000 0.00000   0,10000 0.41431

0.20000 0.83788 0.30000 1.26231

0.40000 1.65227 0.500000 1.95030

0.60000 2.09565 0.700000 2.04914

and so on, this is just how partially the program should look like

0 0
Add a comment Improve this question Transcribed image text
Answer #1

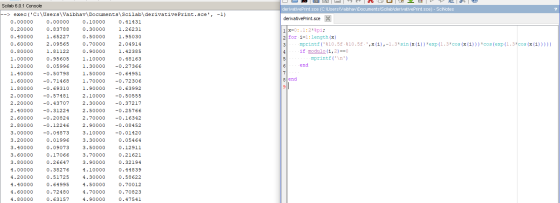

x=0:.1:2*%pi;
for i=1:length(x)
    mprintf('%10.5f %10.5f ',x(i),-1.3*sin(x(i))*exp(1.3*cos(x(i)))*cos(exp(1.3*cos(x(i)))))
    if modulo(i,2)==0
        mprintf('\n')
    end

end
