Use Truth Tables to find the outcomes of the following: 1. x || ! y &

Question

Question

Use Truth Tables to find the outcomes of the following:

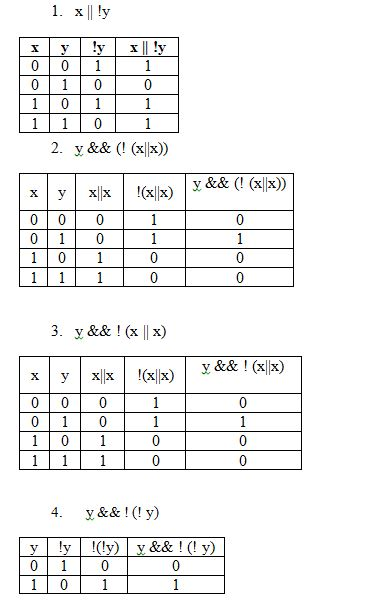

1. x || ! y

2. y && (! (x || x))

3. y && ! (x || x)

4. y && ! (! y)

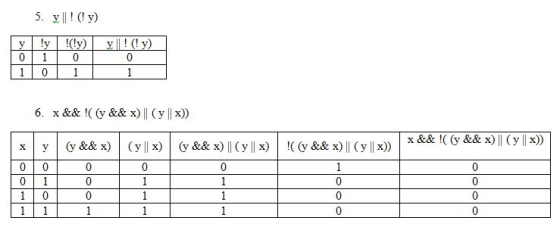

5. y || ! (! y)

6. x && !( (y && x) || ( y || x))

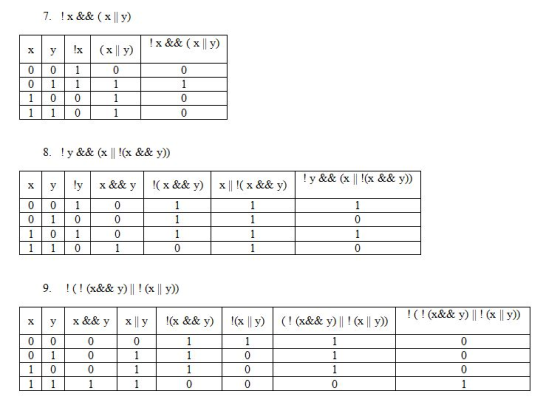

7. ! x && ( x || y)

8. ! y && (x || !(x && y))

9. ! ( ! (x&& y) || ! (x || y))

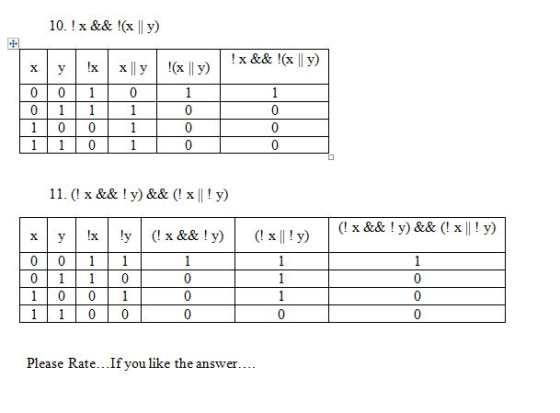

10. ! x && !(x || y)

11. (! x && ! y) && (! x || ! y)

engineering Computer-Science

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

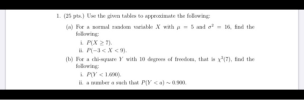

1. (25 pts. Use the given tables to approximate the following: (a) For a normal random...
