A manufacturer’s data sheet lists the material dispersion, Dmat of a GeO2-doped fiber to be 110 ps/(nm.km) at a wavelength of 860 nm.
(i) Calculate the rms pulse broadening per kilometer due to material dispersion if the optical source is an LED that has a spectral width, σλ of 40 nm.
(ii) If the same fiber has a material dispersion Dmat of 15 ps/(nm.km) at the wavelength of 1550 nm, calculate the new rms pulse broadening per kilometer if we use laser source with a spectral width of 0.2 nm.

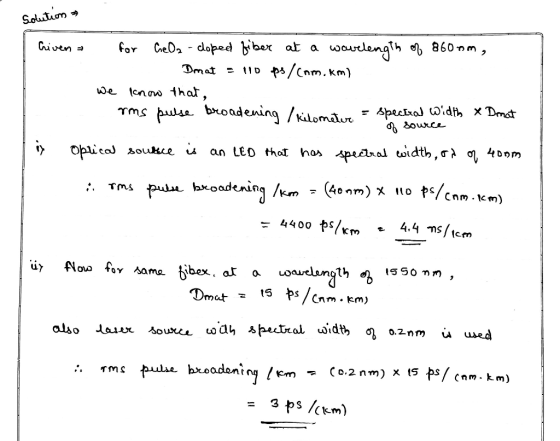

Homework Answers
