In an AUTOTRANSFORMER, what is the significance of voltage ratio and current ratio? Why is the...

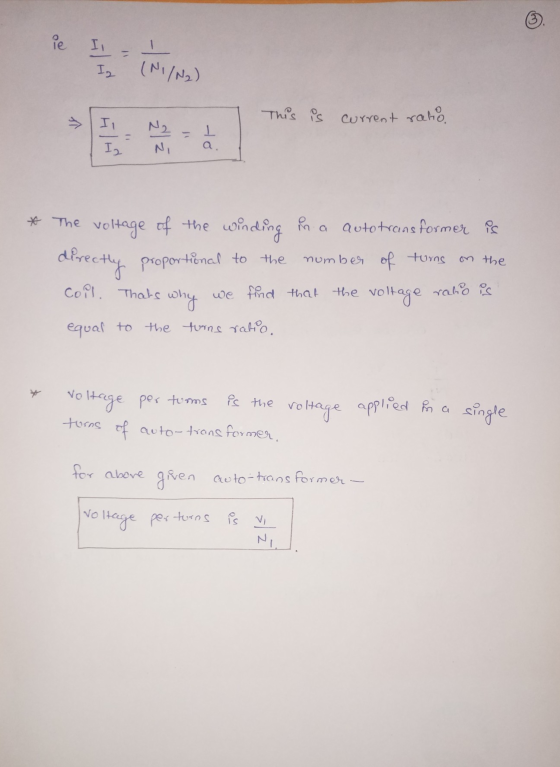

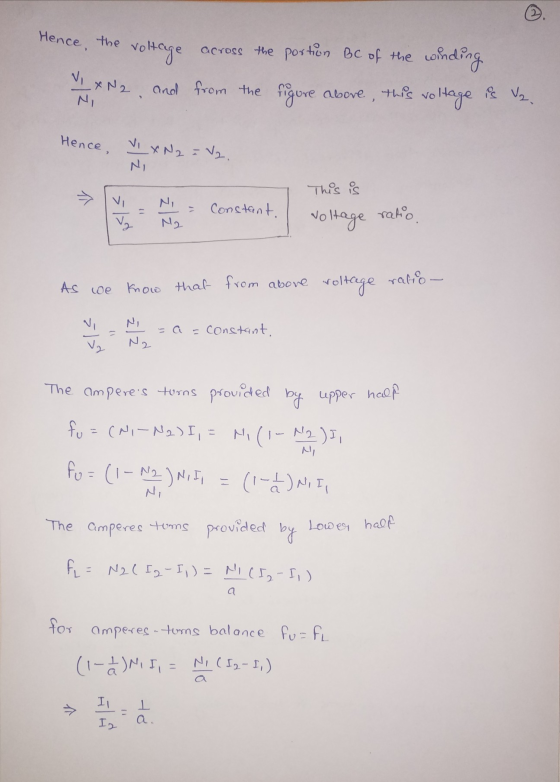

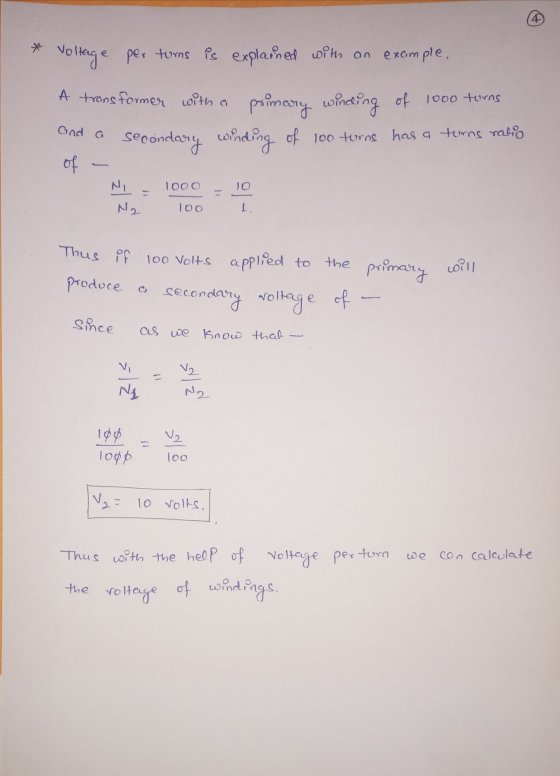

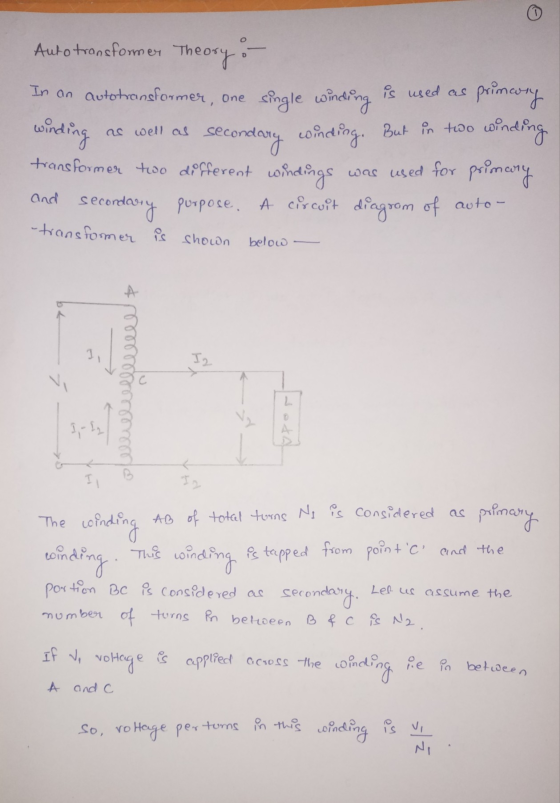

In an AUTOTRANSFORMER, what is the significance of voltage ratio and current ratio? Why is the voltage ratio equal to the turns ratio? Lastly, What is voltage per turn and what is the significance of this in an Autotransformer?
Please provide an answer in a detailed manner and bullet form
Homework Answers
Add Answer to:
In an AUTOTRANSFORMER, what is the significance of voltage ratio
and current ratio? Why is the...
For an ideal transformer, what is the ratio in terms of winding, current, and voltage? Explain...
For an ideal transformer, what is the ratio in terms of winding, current, and voltage? Explain how you derive it and what is Zp = a^2 * Z_L ? Why is it a^2 and not just a?
Explain the loading characteristics of a three-phase alternator in capacitive, resistive and inductive. Please indicate the...
Explain the loading characteristics of a three-phase alternator in capacitive, resistive and inductive. Please indicate the voltage, current and power relationship in each load condition. Lastly, also explain the power factor relationship. Answer in paragraph form or bullet form. Thanks
Please answer all the questions, thank you! It is a important homework for me! I will...
Please answer all the questions, thank you! It is a important
homework for me! I will like you answer if correct!
For the questions on this page, assume that that an induction motor is rated to deliver 10kW (approximately 13.3HP} when operated at 240VRMS 60Hz. The motor has a lagging power factor of 0.8. The building electrical service only supplies 208VRMs, so the motor can not be connected directly to the electric service. An ideal transformer is used to create...
please answer in great detail Question 12 7 pts A neon sign requires a voltage of...
please answer in great detail

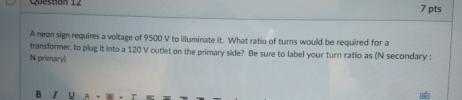

Question 12 7 pts A neon sign requires a voltage of 9500 V to iluminate it. What ratio of turns would be required for a transformer, to plug it into a 120 V outlet on the primary side? Be sure to label your turn ratio as (N secondary : N primary)
Why is the output phase voltage not equal to the internal generated voltage when there is...
Why is the output phase voltage not equal to the internal generated voltage when there is an armature current flowing through the armature? Also why does an alternator’s voltage drop when it is loaded down with a lagging load and rises when loaded with a leading load. Explain in paragraph form.
please provide detailed explanation Sample Questions, continued 5. Shown below is a current transformer with the number of turns between taps. In the space provided, write the calculated voltage f...
please provide detailed explanation
Sample Questions, continued 5. Shown below is a current transformer with the number of turns between taps. In the space provided, write the calculated voltage for taps X1 to X3 when 200 V is applied to the full secondary winding (X1 to X5) X5 X3 X4 X1 40 Tums 30 Tums 20 Tums 10 Tums 200 Volts applied Volts
Sample Questions, continued 5. Shown below is a current transformer with the number of turns between taps....
7) What is the function of the given circuit below, and sketch (with labe) The output velt waveform Assume the irput veltape: 30 Sinwtv 50 Mc and the turns ratio 1.1 ci Q8) What is the voltage acr...
7) What is the function of the given circuit below, and sketch (with labe) The output velt waveform Assume the irput veltape: 30 Sinwtv 50 Mc and the turns ratio 1.1 ci Q8) What is the voltage across the load resistor if the diode is successfully biased? 8, sv Q9) determine and draw the output voltage waveform for the given circuits and name the type of operation diode from slicon and neglect diode resistance? Q10] Why doping is required ?...
Analyze the following ratios. What does the CURRENT RATIO tell about this company? Are the trends...
Analyze the following ratios. What does the CURRENT RATIO tell about this company? Are the trends getting better or worse? Why or why not? Would you recommend purchase of this stock? Why or why not? Please explain your answers. Current 2016 2017 2018 Ratio 1.35 1.23 1.25 What does the QUICK RATIO tell about this company? Are the trends getting better or worse? Why or why not? Would you recommend purchase of this stock? Why or why not? Please explain...
What is the difference between staristical significance and clinical significance ? Explain why statistically significant results...
What is the difference between staristical significance and clinical significance ? Explain why statistically significant results in a study do not always mean that the study is clinically significant . Provide an example .
Please answer this question Q3. The power rating and the voltage ratio of the power transformer...
Please answer this question
Q3. The power rating and the voltage ratio of the power transformer and the CT ratio are show in Fig 3. Determine the transformation turns ratios and the connection of the interposing transformers required in order to set the differential relays, which are provided with taps. Draw the complete three- phase connection schematic diagram and identify the currents in each of the elements. 150/ 5Y 115 Transformer Vector group: Primary secondary: Yd5 Primary.tertiary YO 1151V2SMVA13V SMVA...
Please answer all the questions, thank you! It is a important
homework for me! I will like you answer if correct!
For the questions on this page, assume that that an induction motor is rated to deliver 10kW (approximately 13.3HP} when operated at 240VRMS 60Hz. The motor has a lagging power factor of 0.8. The building electrical service only supplies 208VRMs, so the motor can not be connected directly to the electric service. An ideal transformer is used to create...
please answer in great detail
Question 12 7 pts A neon sign requires a voltage of 9500 V to iluminate it. What ratio of turns would be required for a transformer, to plug it into a 120 V outlet on the primary side? Be sure to label your turn ratio as (N secondary : N primary)
please provide detailed explanation
Sample Questions, continued 5. Shown below is a current transformer with the number of turns between taps. In the space provided, write the calculated voltage for taps X1 to X3 when 200 V is applied to the full secondary winding (X1 to X5) X5 X3 X4 X1 40 Tums 30 Tums 20 Tums 10 Tums 200 Volts applied Volts
Sample Questions, continued 5. Shown below is a current transformer with the number of turns between taps....
7) What is the function of the given circuit below, and sketch (with labe) The output velt waveform Assume the irput veltape: 30 Sinwtv 50 Mc and the turns ratio 1.1 ci Q8) What is the voltage across the load resistor if the diode is successfully biased? 8, sv Q9) determine and draw the output voltage waveform for the given circuits and name the type of operation diode from slicon and neglect diode resistance? Q10] Why doping is required ?...
Please answer this question
Q3. The power rating and the voltage ratio of the power transformer and the CT ratio are show in Fig 3. Determine the transformation turns ratios and the connection of the interposing transformers required in order to set the differential relays, which are provided with taps. Draw the complete three- phase connection schematic diagram and identify the currents in each of the elements. 150/ 5Y 115 Transformer Vector group: Primary secondary: Yd5 Primary.tertiary YO 1151V2SMVA13V SMVA...
