One of the bearings on a flywheel system is lubricated by oil. The bearing has a...

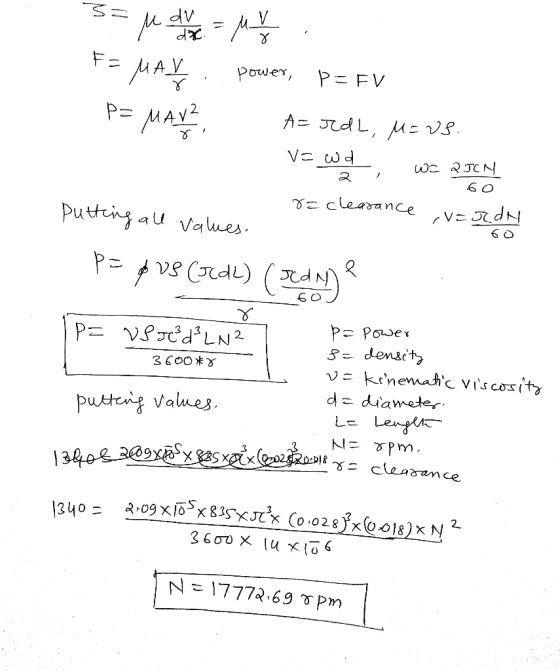

One of the bearings on a flywheel system is lubricated by oil. The bearing has a diameter of 28.0mm and an axial length of 18.0mm, with a radial clearance of 14.0 micrometers. The kinematic viscosity of the lubricating oil is 2.09 x 10^-5m^2s^-1 and the density is 835kg m^-3.
If the power loss from the bearing is 1.34 kW, calculate the speed of rotation (in revolutions per minute) of the bearing. Give your answer to three significant figures and show all of your workings.
Homework Answers
Add Answer to:
One of the bearings on a flywheel system is lubricated by oil.
The bearing has a...
A 25 mm diameter shaft is rotated at 200 rpm in a lubricated cylindrical bearing of...
A 25 mm diameter shaft is rotated at 200 rpm in a lubricated cylindrical bearing of diameter 25.5 mm (the figure below). The lubrication oil (SG = 0.86) that fills the gap between the shaft and bearing has an initial kinematic viscosity of 2200 mm2/s. After 5 minutes of running the temperature of the oil increases and the dynamic viscosity decreases by 90 %. Determine the reduction in shaft torque (T) that occurs from startup to after 5 minutes of...
Q.17. How much power is supplied to two meshed spur gears if the driving gear rotates...
Q.17. How much power is supplied to two meshed spur gears if the driving gear rotates at 2000 rpm, the torque 2.00 and its efficiency is 96%? driven gear is 1.00 kNm, the speed ratio of the drive is on a A. 204 kW B. 210 kW C. 109 kW D. 105 kW E. none of above (3 Marks) Q.18. Two meshed spur gears with a 210 mm centre distance and a module of 3.00 have arc of contact of...
2. A shaft carrying a 10KN load is supported by two identical plain journal bearings. The shaft, which normally rotates at 3000 rev/min has, at the bearing region, a nominal diameter of 50 mm and a l...
2. A shaft carrying a 10KN load is supported by two identical plain journal bearings. The shaft, which normally rotates at 3000 rev/min has, at the bearing region, a nominal diameter of 50 mm and a length of 16 mm. Starting with a radial clearance ratio of 0.0015 and neglecting thermal effects a) Calculate the temperature of the lubricant which will produce an eccentricity ratio of 0.7 if the oil used is SAE10 b) Comment of the necessity to supply...
A journal bearing 4 inches in diameter and 4 inches long has a radial clearance of...
A journal bearing 4 inches in diameter and 4 inches long has a
radial clearance of 0.002 inches. It rotates at 2000 rpm and is
lubricated is SAE 10 oil at 200F. In the following, use an applied
load of 225 lbs and neglect temperature rise.
a. Estimate the power loss and the friction torque using the
Petrov equation. Calculate the coefficient of friction.
b. Calculate the minimum clearance, the power loss, friction torque
and the coefficient of friction using...
Q.17. How much power is supplied to two meshed spur gears if the driving gear rotates at 2000 rpm, the torque 2.00 and its efficiency is 96%? driven gear is 1.00 kNm, the speed ratio of the drive is on a A. 204 kW B. 210 kW C. 109 kW D. 105 kW E. none of above (3 Marks) Q.18. Two meshed spur gears with a 210 mm centre distance and a module of 3.00 have arc of contact of...
2. A shaft carrying a 10KN load is supported by two identical plain journal bearings. The shaft, which normally rotates at 3000 rev/min has, at the bearing region, a nominal diameter of 50 mm and a length of 16 mm. Starting with a radial clearance ratio of 0.0015 and neglecting thermal effects a) Calculate the temperature of the lubricant which will produce an eccentricity ratio of 0.7 if the oil used is SAE10 b) Comment of the necessity to supply...
A journal bearing 4 inches in diameter and 4 inches long has a
radial clearance of 0.002 inches. It rotates at 2000 rpm and is
lubricated is SAE 10 oil at 200F. In the following, use an applied
load of 225 lbs and neglect temperature rise.
a. Estimate the power loss and the friction torque using the
Petrov equation. Calculate the coefficient of friction.
b. Calculate the minimum clearance, the power loss, friction torque
and the coefficient of friction using...
Most questions answered within 3 hours.
-
