An airplane is traveling at 225m/s at 45.0 south of west. The plane then encounters a...
An airplane is traveling at 225m/s at 45.0 south of west. The plane then encounters a strong wind blowing at 50.0 m/s at 20.0 east of north.
a.) What is the resultant velocity?

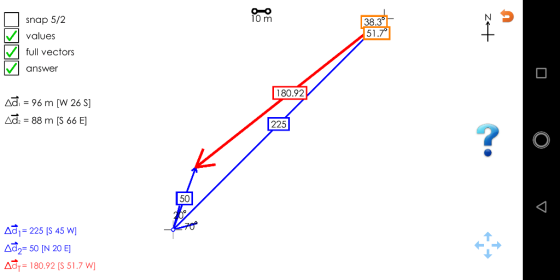

b.) Estimate the answer using graphical addition of vectors.

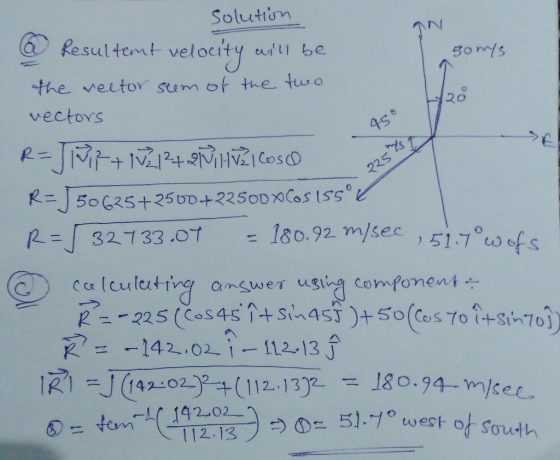

c.) Calculate the answer using component addiction of vectors.
