Can't use a Power Supply Design Project:Voltage Limiter Circuit Design Objective Design and demonstrate a Voltage...

Can't use a Power Supply

Design Project:Voltage Limiter Circuit

Design Objective

Design and demonstrate a Voltage Limiter Circuit that will restrict the voltage across a load resistor to the range of about -9.4 to +2.4 V. Use only 1N4148 diodes. Design your circuit , sketch a schematic, and build your circuit on a breadboard. Measure your circuit using the previous limiter testing circuit and demonstrate the circuit to your instructor. Verify your design by LTspice simulation.

Design Project Report

You should complete the Design Project. A typed Design Project should be handed in on no more than one sheet of paper. The 1-page Design Project should include four short sections labelled Design Objectives and Specs, Circuit Design Outline (include a simple hand-drawn or LTspice schematic), Data Results & Measurements, and Conclusions.

0 0
Add a comment Improve this question Transcribed image text
Answer #1

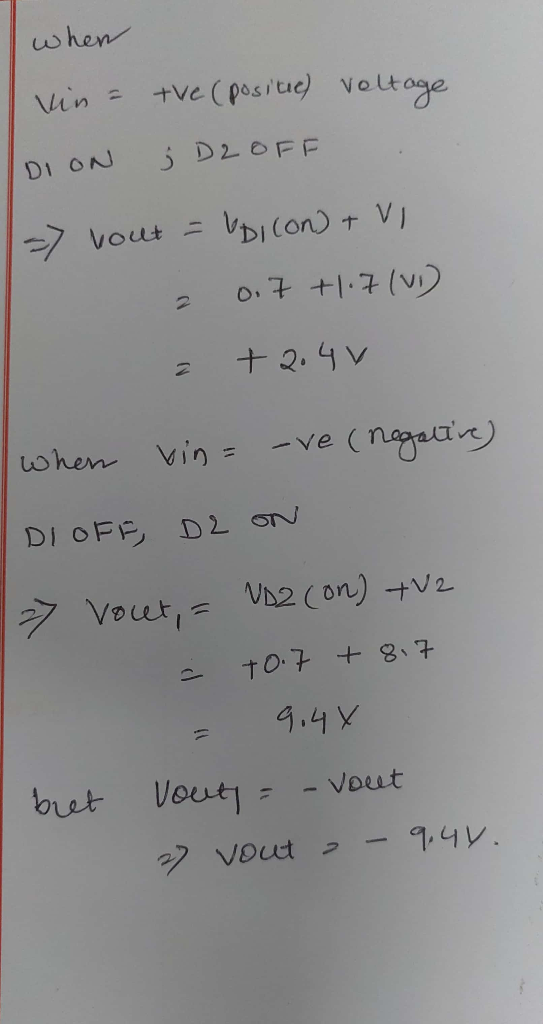

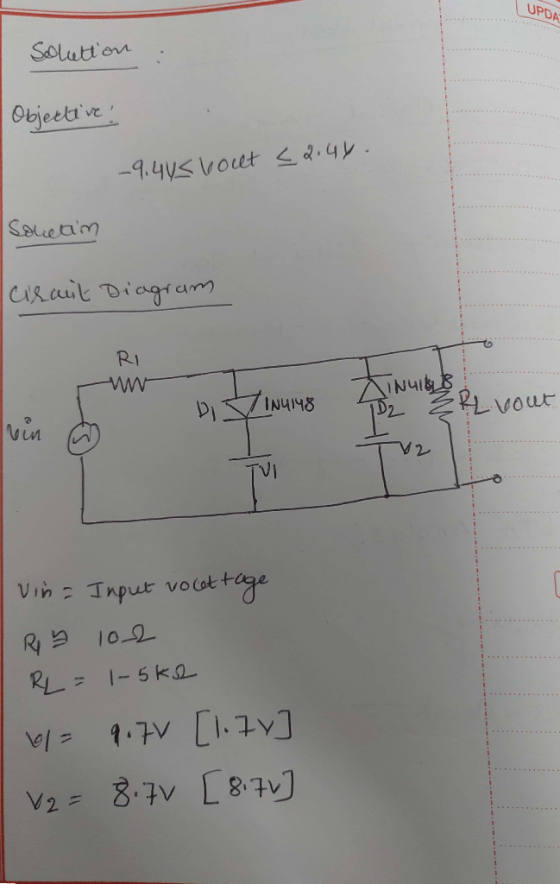

Please see the attached results
