An object is 0.5m away from a converging lens with f = 0.4m which is in...

An object is 0.5m away from a converging lens with f = 0.4m which is in turn 0.6m away from a diverging lens with f = −0.6m. How far should the conversing lens be from the object if we want an image with magnification 2.0 assuming that the distance from the converging to diverging lens is fixed?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

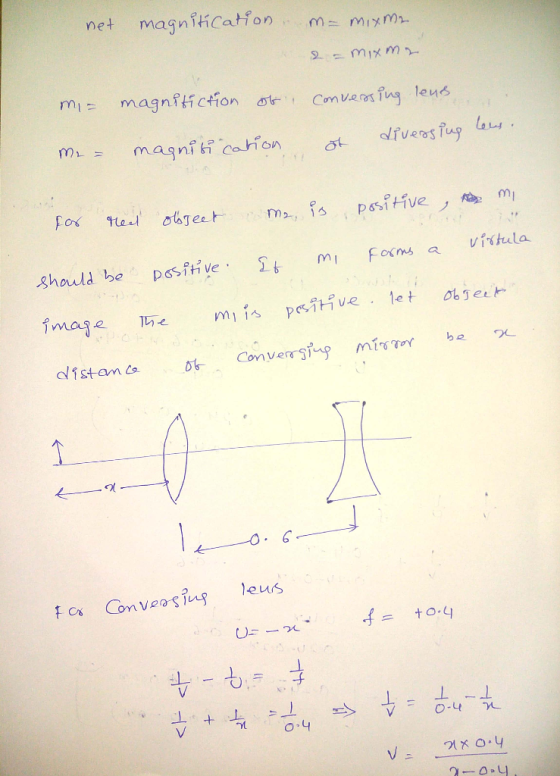

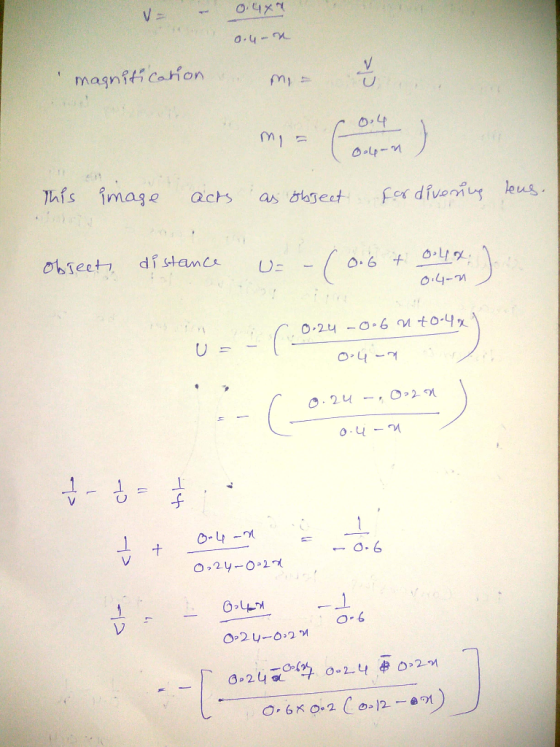

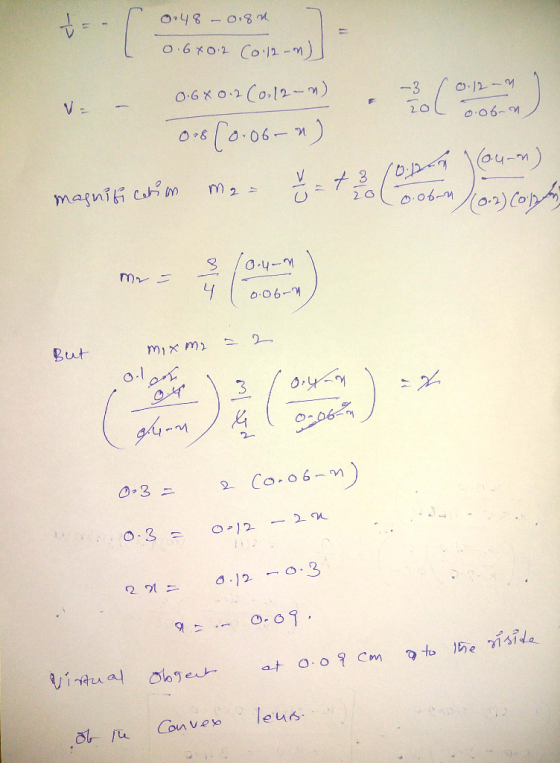

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
An object is 0.5m away from a converging lens with f = 0.4m which is in...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • An object is located at a distance of 6 cm from a thin converging lens with...

    An object is located at a distance of 6 cm from a thin converging lens with focal length of 2 cm. A diverging lens is located 4 cm from the converging lens and 10 cm from the object. The diverging lens has a focal length of -3 cm. Note: To handle a multiple lens system, we treat them independently. We first find the image created by the first lens. We then use the image from the first lens to act...

  • 2. A camera has a single converging lens with a fixed focal length f. (a) How...

    2. A camera has a single converging lens with a fixed focal length f. (a) How far should the lens be from the film in order to focus an object that is infinitely far away (namely the incoming light rays are parallel with the principal axis of the system) (b) How far should the lens be from the film to focus an object at a distance of 2f in front of the lens? (c) What is the magnification of the...

  • An object is placed 18 cm from the center of a converging lens of focal length...

    An object is placed 18 cm from the center of a converging lens of focal length 6 cm. 1) What will be the distance of the image from the lens? (cm) 2) What is the magnification of the image? 3) The object is moved. The image is now 10 cm away from the lens. How far is the object from the lens? (cm)

  • An object is 150mm to the left of a converging lens with a focal length f=...

    An object is 150mm to the left of a converging lens with a focal length f= 200mm. How far is the image from the lens? Answer: mm Which side of the lens is the image (right or left)? Answer: Is the image real or virtual? Answer: What is the magnification? Answer: Is the image upright or inverted? Answer:

  • A small object is 10 cm to the left of a converging lens (f = +5...

    A small object is 10 cm to the left of a converging lens (f = +5 cm), and a second diverging lens (f = -3.4 cm) is 5.6 cm to the right or the first. Find the position and magnification of the final image by calculation. position magnification Find the postion and magnification of the final image by the graphical method. (Do this on paper. Your instructor may ask you to turn in this work.) An object 4.0 mm high...

  • An object is 72 mm away from a converging lens with a focal length of 250mm....

    An object is 72 mm away from a converging lens with a focal length of 250mm. Another converging lens with a focal length of 200mm is placed 161mm to the right of the first. Draw the ray diagram to scale. Note: Magnification of final image should be 2.

  • A 20 cm tall object is located 70 cm away from a diverging lens that has...

    A 20 cm tall object is located 70 cm away from a diverging lens that has a focal length of 20 cm. Use a scaled ray tracing to answer parts a-d. a. Is the image real or virtual? b. Is the image upright or inverted? c. How far from the lens is the image? d. What is the height of the image? e. Now use the thin lens equation to calculate the image distance and the magnification equation to determine...

  • A 4.0 cm tall object is 5.0 cm in front of a diverging lens with a focal length of -6.0 cm. A converging lens with a fo...

    A 4.0 cm tall object is 5.0 cm in front of a diverging lens with a focal length of -6.0 cm. A converging lens with a focal length of 6.0 cm is located 8.0 cm behind the diverging lens. (As viewed from the side, from left to right, the sequence is object - diverging lens - converging lens - observer. Rays then travel from left to right through the system.) (a) Use ray tracing to draw image 1 and image...

  • 2) A diverging lens is placed 20. cm away from an object, 80. cm from the...

    2) A diverging lens is placed 20. cm away from an object, 80. cm from the diverging lens is a converging lens whose focal length is 25 cm. 35. cm from the converging lens is a screen showing an image of the object. a) What is the focal length of the diverging lens? f = 25. cm o *20. cm → 80. cm + 35 cm → b) What type of image is it? Circle one Real or Virtual c)...

  • An object is on the left side of a thin converging lens. The object is located...

    An object is on the left side of a thin converging lens. The object is located at a distance of 6 cm away from a thin converging lens with focal length of 2 cm. Use the thin lens equation (1/f = 1/s' + 1/s) to predict the following: (a) Location of the image? (b) Magnification of the image (including inverted versus non-inverted)? (c) Real or virtual? Draw diagram please!
