A. Construct a heap for the list ( 2, 5, 6, 4, 3, 1, 8, 7...

Question

Question

A. Construct a heap for the list ( 2, 5, 6, 4, 3, 1, 8, 7 ) by the bottom-up algorithm

B. Construct a heap for the list ( 2, 5, 6, 4, 3, 1, 8, 7 ) by successive key imsertions (top-down algorithm)

C. Is is true that the bottom-up and top-dowj alogorthms yield the same heap for the same input?

engineering Computer-Science

Answer 1

Answer #1

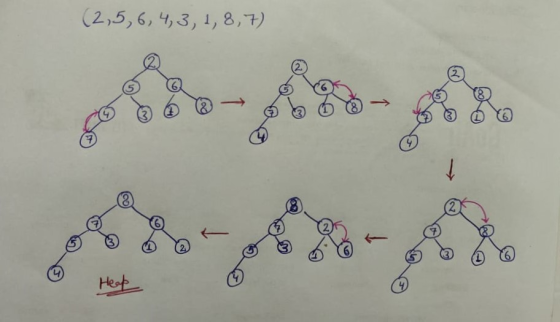

A.

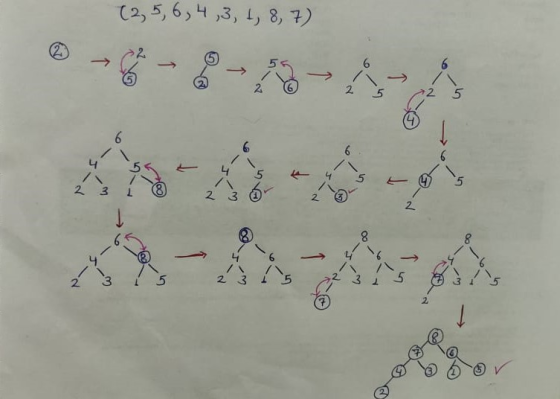

B.

C. As can be seen from the above example bottom-up and top-down algorithms do not yield the same heaps for same inputs.

Answer 2
