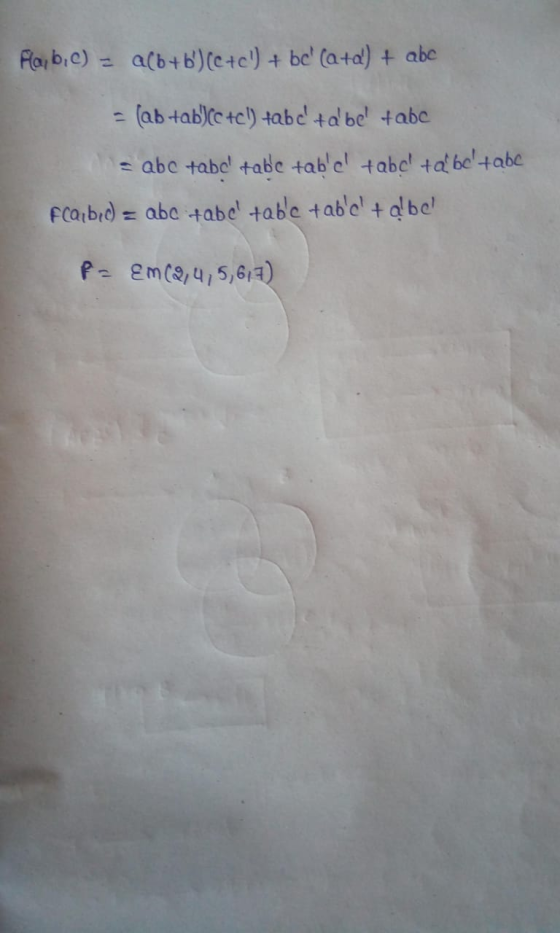

Express the function F as a minterm expansion. F(a, b, c) = a+bc’+abc

Question

Question

F(a, b, c) = a+bc’+abc

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

5. Given f(X,Y,Z)- XZ(XY+XY'), a) Express f as a minterm expansion b) Express f as a...

5. Given f(X,Y,Z)- XZ(XY+XY'), a) Express f as a minterm expansion b) Express f as a minterm expansion c) Express f as a max term expansion d) Express f as a max term expansion. Use m/M notation.
using a 16x1 multiplexer 3. Implement the function F using a multiplexer. F(A, B, C, D)=BC...

using a 16x1 multiplexer 3. Implement the function F using a multiplexer. F(A, B, C, D)=BC + BD + ABC
Consider the following Boolean function F and express the function as indicated. F=AC+AB+BC 5pt (a) With...

Consider the following Boolean function F and express the function as indicated. F=AC+AB+BC 5pt (a) With only OR and Complement operation. 5pt (b) With only AND and Complement operation.

Problem 3: (a) Plot the following function on a Karnaugh map. (Do not expand to minterm...

Problem 3: (a) Plot the following function on a Karnaugh map. (Do not expand to minterm form before plotting.) F (A,B,C,D) = BD' + BCD + ABC + ABC"D + BD' (b) Find the minimum sum of products. (c) Find the minimum product of sums. Problem 4: Find a minimum sum-of-products and a minimum product-of-sums expression for each function: (a) f(A,B,C,D):1M(0,2,10,11 , 12,14,15)·nD(57) (b) f(w.x.yz) m(0.3 ,5,7,8,9,10,12,13)+2d(1,6,1 1,14)
Minimize the following multi level function, F = ABC + [A + D][A' + C'] a)...

Minimize the following multi level function, F = ABC + [A + D][A' + C'] a) F=(AD)'+AB'C b) F=AD'+A(BC)' c) F=(AD)'+(AB)' d) F=AD+(AB)'C
15. Convert the following function back to its canonical form: F(abc) = b'c + bc)

15. Convert the following function back to its canonical form: F(abc) = b'c + bc)

what is the function F that is implemented? VDD GND . f-a+b'c f-a'+ bc f-a (b+c)...

what is the function F that is implemented? VDD GND . f-a+b'c f-a'+ bc f-a (b+c) f = a (b+c)
digital logic design 1. (15 points) Minimize the following function using the K-map. f(A,B,C,D) = m(0,1,2,5,12,13,14,15)...

digital logic design 1. (15 points) Minimize the following function using the K-map. f(A,B,C,D) = m(0,1,2,5,12,13,14,15) 2. (15 Points) Plot the following function on the K-map and determine the minterm list. f(A,B,C,D) = BCD + ABC + ACD + BCD + ABC
Factor the expression A’B’ + (CD’ + E) to obtain a product of sums Given: F(a,...

Factor the expression A’B’ + (CD’ + E) to obtain a product of sums Given: F(a, b, c, d) = (a + b + d)(a’ + c)(a’ + b’ + c’)(a + b + c’ + d’) Express F as a minterm expansion (Use m-notation): F = ∑ Express F as a maxterm expansion (Use M-notation): F = ∏ Express F’ as a minterm expansion (Use m-notation): F’ = ∑ Express F’ as a maxterm expansion (Use M-notation): F’ =...

Question 17 5 pts a+bc 20 DCO ab+c 110 abc 300 a+b+c 65 abc+ 60 a+b+c+...

Question 17 5 pts a+bc 20 DCO ab+c 110 abc 300 a+b+c 65 abc+ 60 a+b+c+ 320 a+bc+ 110 ab+c+ 15 DCO Total 1000 What are Non Cross-over (NCO) genotypes? (Hint: Look for the parental genotypes) abc, a+b+c+ a+b+c, abc+ a+bc, ab+c+ ab+c, a+bc+
