A negative charge -2e orbits a positive charge Q circularly, a distance R from the center...

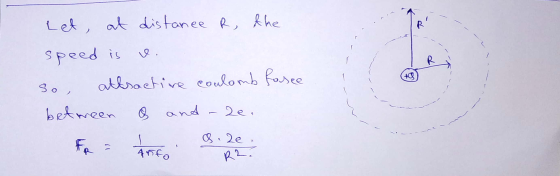

A negative charge -2e orbits a positive charge Q circularly, a
distance R from the center of the positive charge at a constant
speed. All answers are to be in terms of bolded given quantities e,
Q, R and physical constants.
c) Calculate the kinetic energy of the -2e charge.
d) Calculate the energy E' required to remove the -2e charge,
bringing it to infinity where it has half its present value of
Kinetic Energy.
Homework Answers
Add Answer to:
A negative charge -2e orbits a positive charge Q circularly, a
distance R from the center...
Positive charge Q is distributed uniformly along the z-axis from x = 0 to x = a.
.1.Positive charge Q is distributed uniformly along the z-axis from x = 0 to x = a. A positive point charge q is located on he positive z-axis at a distance d to the right of the origin.(a) Calculate the electric potential produced by the charge distribution Q at x = d. (b) Develop an expression for the potential energy that would be added to the system by bringing a charge q from infinity to x = d. (c) Assuming the charges...
A negative point charge is fixed at the origin. A positive charge q is placed at...
A negative point charge is fixed at the origin. A positive charge q is placed at point P, initially at rest. After it is released and allowed to move freely, it passes through point R. Which of the following is true about the charge q: A. Its kinetic energy is larger at R than at P, and its potential energy is also larger at R than at P B. Its kinetic energy is larger at R than at P, but...
A positive point charge q of mass m is released from rest from the positive plate...
A positive point charge q of mass m is released from rest from the positive plate of a capacitor. Determine the following as a function of the electric field E: a) x (distance from the + plate) b) Vf (velocity before hitting the negative plate a distance d away) c) the kinetic energy of the charge just before hitting the negative plate.
Constants A conducting spherical shell with inner radius a and outer radius b has a positive point charge Q located at its center.
Constants A conducting spherical shell with inner radius a and outer radius b has a positive point charge Q located at its center. The total charge on the shell is -3Q, and it is insulated from its surroundings.Part A Derive the expression for the electric field magnitude in terms of the distance r from the center for the region r < a.
A point charge q is located a distance r from the center of a conducting shell...
A point charge q is located a distance r from the center of a
conducting shell with inner radius R1 and outer radius R2.
What is the electric potential at the center of the shell, assuming
r <R1?
Question 7 A point charge q is located a distance r from the center of a conducting shell with inner radius R1 and outer radius R2. What is the electric potential at the center of the shell, assuming r< R1? Select the...
A point charge q is placed at a distance h from the center of a conducting...
A point charge q is placed at a distance h from the center of a conducting sphere of radius R. An induced charge will be created on the sphere. We need to locate the image charge q' within the sphere. We need to find out how much is q. What is r, = ? in terms of h, R, and e; use the law of cosines What is r = ? in terms of h, R, and e; use the...
Consider a positive source charge Q, that is being held in place. A nearby negative test...
Consider a positive source charge Q, that is being held in
place. A nearby negative test charge q moves from point A to point
B.
a) What is the direction of the electric force that the source
charge exerts on the test charge?
b) As the negative test charge moves from point A to point B,
does the electric force cause it to speed up, slow down, or move at
a constant velocity?
c) As the negative test charge moves...
A positive charge, +q, of mass m is moving at speed vo toward a second positive...
A positive charge, +q, of mass m is moving at speed vo toward a second positive charge, +Q, when it is at an initial distance, R, away. The second charge, +Q, is assumed to be fixed in position. Also assume that any changes in gravitational potential energy are negligible. Derive an expression for the closest distance (call this r) charge +q gets to + before it changes position Enter your answer in terms of R, vo. Q. q, m and...
Positive charge Q is distributed uniformly on the left quarter and negative charge -Q is distributed
2. Positive charge Q is distributed uniformly on the left quarter and negative charge -Q is distributed on the right quarter of the semicircle of radius a, in Figure on the right. (i) Calculate x and y component of the electric field at the center of the semicircle. (ii) Find the Coulomb force acting on a negative charge placed at the center of the semicircle.
An electric dipole consists of a negative charge- located at (0,-) and a positive charge +q...
An electric dipole consists of a negative charge- located at (0,-) and a positive charge +q located at (0, +3). The dipole moment p is defined as a vector of magnitude qs directed from the negative charge of the dipole to the positive charge of the dipole. (a) Show that the net force exerted by the dipole on a charge +Q located on the r-axis at a distance r from the dipole is given by: s 2 -3/2 F- r"...
A point charge q is located a distance r from the center of a
conducting shell with inner radius R1 and outer radius R2.
What is the electric potential at the center of the shell, assuming
r <R1?
Question 7 A point charge q is located a distance r from the center of a conducting shell with inner radius R1 and outer radius R2. What is the electric potential at the center of the shell, assuming r< R1? Select the...
A point charge q is placed at a distance h from the center of a conducting sphere of radius R. An induced charge will be created on the sphere. We need to locate the image charge q' within the sphere. We need to find out how much is q. What is r, = ? in terms of h, R, and e; use the law of cosines What is r = ? in terms of h, R, and e; use the...
Consider a positive source charge Q, that is being held in
place. A nearby negative test charge q moves from point A to point
B.
a) What is the direction of the electric force that the source
charge exerts on the test charge?
b) As the negative test charge moves from point A to point B,
does the electric force cause it to speed up, slow down, or move at
a constant velocity?
c) As the negative test charge moves...
A positive charge, +q, of mass m is moving at speed vo toward a second positive charge, +Q, when it is at an initial distance, R, away. The second charge, +Q, is assumed to be fixed in position. Also assume that any changes in gravitational potential energy are negligible. Derive an expression for the closest distance (call this r) charge +q gets to + before it changes position Enter your answer in terms of R, vo. Q. q, m and...
An electric dipole consists of a negative charge- located at (0,-) and a positive charge +q located at (0, +3). The dipole moment p is defined as a vector of magnitude qs directed from the negative charge of the dipole to the positive charge of the dipole. (a) Show that the net force exerted by the dipole on a charge +Q located on the r-axis at a distance r from the dipole is given by: s 2 -3/2 F- r"...
