The force on a wire is a maximum of 5.86 N when placed between the pole...

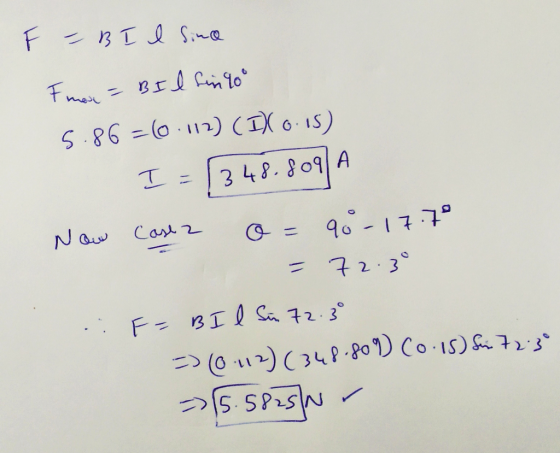

The force on a wire is a maximum of 5.86 N when placed between the pole faces of a magnet. The current flows horizontally to the right and the magnetic field is vertical. The wire is observed to "jump" toward the observer when the current is turned on. If the pole faces have a diameter of 15.0 cm, estimate the current in the wire if the field is 0.112 T.
If the wire is tipped so that it now makes an angle of 17.7° with the horizontal, what force will it now feel?
Homework Answers
Please ask your doubts or queries in the comment section below.
Please kindly upvote if you are satisfied with the solution.
Thank you.
Add Answer to:
The force on a wire is a maximum of 5.86 N when placed between
the pole...
The force on a wire is a maximum of 5.20 N when placed between the pole...
The force on a wire is a maximum of 5.20 N when placed between the pole faces of a magnet. The current flows horizontally to the right and the magnetic field is vertical. The wire is observed to "jump" toward the observer when the current is turned on. If the pole faces have a diameter of 14.0 cm, estimate the current in the wire if the field is 0.112 T. If the wire is tipped so that it now makes...
The force on a wire is a maximum of 3.50x10^-2 N when placed between the pole...
The force on a wire is a maximum of 3.50x10^-2 N when placed between the pole faces of a magnet. The current flows horizontally to the right and the magnetic field is vertical. The wire is observed to "jump" toward the observer when the current is turned on. If the pole faces have a diameter of 10.0 cm, estimate the current in the wire if the field is 0.22 T. Answer in A If the wire is tipped so that...
The force on a wire is a maximum of 4.50×10−2 N when placed between the pole...
The force on a wire is a maximum of 4.50×10−2 N when placed between the pole faces of a magnet. The current flows horizontally to the right and the magnetic field is vertical. The wire is observed to "jump" toward the observer when the current is turned on. Part B If the pole faces have a diameter of 19.0 cm , estimate the current in the wire if the field is 0.140 T . Express your answer to three significant...
The force on a wire is a maximum of 4.50×10−2 N when placed between the pole faces of a magnet. The current flows horizontally to the?
The force on a wire is a maximum of 4.50×10−2 N when placed between the pole faces of a magnet. The current flows horizontally to the right and the magnetic field is vertical. The wire is observed to "jump" toward the observer when the current is turned on.A) If the pole faces have a diameter of 14.0 cm , estimate the current in the wire if the field is 0.460 T .B) If the wire is tipped so that it...
a) The force on a wire is a maximum of 8.50×10−2 N when placed between the...
a) The force on a wire is a maximum of 8.50×10−2 N when placed between the pole faces of a magnet. The current flows horizontally to the right and the magnetic field is vertical. The wire is observed to "jump" toward the observer when the current is turned on. If the pole faces have a diameter of 19.0 cm , estimate the current in the wire if the field is 0.460 T . If the wire is tipped so that...
The force on a wire is a maximum of6.71 10-2 N when placed between the pole...
The force on a wire is a maximum of6.71
10-2 N when placed between the pole faces of a
magnet.The current flows horizontally to the right and the magnetic
fieldis vertical. The wire is observed to "jump" toward the
observerwhen the current is turned on.
(a) What type of magnetic pole is the top pole face?
Northpole
Southpole
(b) If the pole faces have a diameter of 15.0 cm, estimate the
current in the wire if thefield is 0.16 T....
The force on a wire is a maximum of 4.50×10−2 N when placed between the pole faces of a magnet. The current flows horizontally to the right and the magnetic field is vertical. The wire is observed to "jump" toward the observer when the current is turned o
No referring, thanks.The force on a wire is a maximum of 4.50×10−2 N when placed between the pole faces of a magnet. The current flows horizontally to the right and the magnetic field is vertical. The wire is observed to "jump" toward the observer when the current is turned on.A) What type of magnetic pole is the top pole face? 1. South pole 2. North poleB) If the pole faces have a diameter of 14.0 cm , estimate the current...
Need help with this problem, its not fcostheta The force on a wire is a maximum...
Need help with this problem, its not fcostheta
The force on a wire is a maximum of 4.32 N when placed between the pole faces of a magnet. The current flows horizontally to the right and the magnetic field is vertical. The wire is observed to "jump" toward the observer when the current is turned on. If the pole faces have a diameter of 11.5 cm, estimate the current in the wire if the field is 0.140 T. 2.68x102 A...
The force on a wire carrying 7.75A is a maximum of1.83N when placed between the pole...
The force on a wire carrying 7.75A is a maximum of1.83N when placed between the pole faces of a magnet. Part A If the pole faces are 66.5cm in diameter, what is the approximate strength of the magnetic field? Express your answer to three significant figures and include the appropriate units.
The force on a wire carrying 8.45 A is a maximum of 1.78 N when placed...
The force on a wire carrying 8.45 A is a maximum of 1.78 N when placed between the pole faces of a magnet. If the pole faces are 51.5 cm in diameter, what is the approximate strength of the magnetic field?
The force on a wire is a maximum of6.71
10-2 N when placed between the pole faces of a
magnet.The current flows horizontally to the right and the magnetic
fieldis vertical. The wire is observed to "jump" toward the
observerwhen the current is turned on.
(a) What type of magnetic pole is the top pole face?
Northpole
Southpole
(b) If the pole faces have a diameter of 15.0 cm, estimate the
current in the wire if thefield is 0.16 T....
Need help with this problem, its not fcostheta
The force on a wire is a maximum of 4.32 N when placed between the pole faces of a magnet. The current flows horizontally to the right and the magnetic field is vertical. The wire is observed to "jump" toward the observer when the current is turned on. If the pole faces have a diameter of 11.5 cm, estimate the current in the wire if the field is 0.140 T. 2.68x102 A...
