An electron has a speed v0 = 1.41 × 106 m/s in the +z-direction. Find (a)...

An electron has a speed v0 = 1.41 × 106 m/s in the +z-direction. Find (a) the magnitude and direction of the magnetic field that will cause the electron to follow the semicircular path of 10.0-cm diameter clockwise in the yz-plane, and (b) the time required for the electron to traverse one complete circle

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

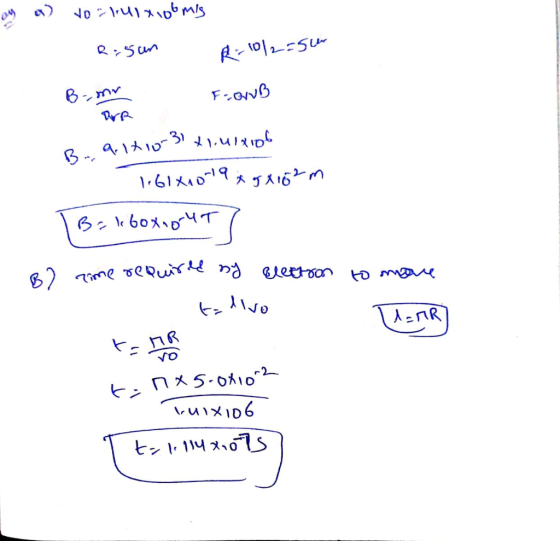

Answer #1


0 0
Add a comment
Know the answer?
Add Answer to:
An electron has a speed v0 = 1.41 × 106 m/s in the +z-direction. Find (a)...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • An electron at point A has a speed v0 of 1.41 x 106 ​m/s...

    An electron at point A has a speed v0 of 1.41 x 106 m/s. FindA. The magnitude and direction of the magnetic field that will cause the lectron to follow the semicircular path from A to B, and;B. The time required for the electron to move from A to B.

  • An electron at point A in the figure shown has a speed of vo = 1.41 x 106 m/s.

    An electron at point A in the figure shown has a speed of vo = 1.41 x 106 m/s. a) Find the magnitude (15 pts) and direction (5 pts) of the magnetic field that will cause the electron to follow the path shown from A to B. b) What is the time required for the electron to move from A to B?

  • An electron at point A in the figure shown has a speed of vo = 1.41...

    An electron at point A in the figure shown has a speed of vo = 1.41 x 106m/s. a) Find the magnitude (15 pts) and direction (5 pts) of the magnetic field that will cause the electron to follow the path shown from A to B. b) What is the time required for the electron to move from A to B? (5pts) Vo А B 10.0 cm HTML Editora BIVA - A - IX E F 3 1 1 xx,...

  • Use the following figure for both questions. Uo 10.0 cm 1. An electron at point A...

    Use the following figure for both questions. Uo 10.0 cm 1. An electron at point A has a speed vo 1.41 x 106 m/s. Find the magnitude and direction of the magnetic field that will cause the electron to follow the semi-circular path from A to B, and the time required for the electron to move from A to B. 2. An proton at point A has a speed vo 1.41 x 106 m/s. Find the magnitude and direction of...

  • Constants An electron at point A in the figure (Figure 1) has a speed vo of...

    Constants An electron at point A in the figure (Figure 1) has a speed vo of 1.20x10 m/s. Part A Find the magnitude of the magnetic field that will cause the electron to follow the semicircular path from A to B. VO AEVO 2 ? B = Figure < 1 of 1 > Submit Request Answer Part B Find the direction of the magnetic field that will cause the electron to follow the semicircular path from A to B. out...

  • An electron at point A in the figure has a speed v_g of 1.10 times 10...

    An electron at point A in the figure has a speed v_g of 1.10 times 10 m/s. Find the magnitude of the magnetic field that will cause the electron to flow the semicircular path from A to B. Find the direction of the magnetic field that will cause the electron to flow the semicircular path from A to B. into the page out of the page Find the time required for the electron to move from A to B.

  • An electron is projected vertically upward with a speed of 1.50×106 m/s into a uniform magnetic...

    An electron is projected vertically upward with a speed of 1.50×106 m/s into a uniform magnetic field of 0.590 T that is directed horizontally away from the observer. Part A Describe the electron's path in this field. Describe the electron's path in this field. The electron will move in a straight line with acceleration. The electron will move in a clockwise circular path if viewed in the direction of the magnetic field. The electron will move in a straight line...

  • An electron moves in a circular path with a speed of 1.41 x 10 m/s in...

    An electron moves in a circular path with a speed of 1.41 x 10 m/s in the presence of a uniform magnetic field with a magnitude of 2.04 mT. The electron's path is perpendicular to the field. How long (in sec) does it take for the electron to complete ten revolutions? 2.05x10-7 1.75*10- 2.05*10* 1.75*107

  • An electron moves at speed 5.6 x 106 m/s toward the velocity selector shown in (Figure 1)

     An electron moves at speed 5.6 x 106 m/s toward the velocity selector shown in (Figure 1). A 0.12-T magnetic field points into the paper. Part A Determine the magnitude of the magnetic force that the magnetic field exerts on the electron. Part B Determine the direction of the magnetic force that the magnetic field exerts on the electron. upward downward Part C What E field magnitude is required so that the electric force exerted on the electron is equal in magnitude and opposite in direction to the...

  • 3. An electron at point A has a speed of 5x106 m/s. Find the value and...

    3. An electron at point A has a speed of 5x106 m/s. Find the value and direction of the flux density of the field that will cause the electron to follow the semi-circular path from A to B . The distance from A to B is 40 cm. Please explain.
