A 1.0 kg object is attached to one end of a 1.25 m long string. The...

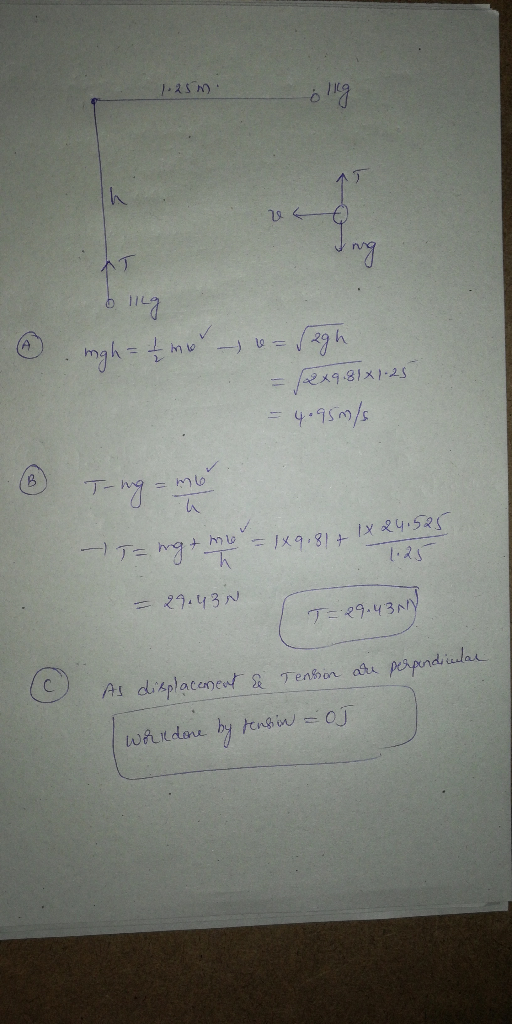

A 1.0 kg object is attached to one end of a 1.25 m long string. The other end of the string is fixed. The object is released from rest when the string is horizontal falls to a vertical 90-degree angle.
- What is the speed of the object as the lowest point along the path (when the string is vertical)?
- What is the value of the tension in the string at the lowest point?
- What is the work done by the tension on the object as the string goes from the horizontal position to the vertical position?
Homework Answers
Add Answer to:
A 1.0 kg object is attached to one end of a 1.25 m long string.
The...
A 0.60-kg object is suspended from the ceiling at the end of a 2.0-m string. When...
A 0.60-kg object is suspended from the ceiling at the end of a 2.0-m string. When pulled to the side and released, it has a speed of 4.0 m/s at the lowest point of its path. What maximum angle does the string make with the vertical as the object swings up? 47 degree 54 degree 61 degree 69 degree 77 degree
A pendulum consists of a 2.2-kg bob attached to a light 2.0-m-long string. While hanging at...
A pendulum consists of a 2.2-kg bob attached to a light 2.0-m-long string. While hanging at rest with the string vertical, the bob is struck a sharp horizontal blow, giving it a horizontal velocity of 4.5 m/s. At the instant the string makes an angle of 27 degree with the vertical, calculate the following: (a) the speed m/s (b) the gravitational potential energy (relative to its value is at the lowest point) J (c) the tension in the string? N...
3.0 m 7. A 3.0-kg is attached to the end of a 3.0-m long string. It...
3.0 m 7. A 3.0-kg is attached to the end of a 3.0-m long string. It is held in the horizontal position (as shown) and released. a) What is the speed of the mass as it passes through the lowest position? b) What is the tension in the string as it passes through the lowest position?
Q1: An object is attached to a pendulum whose string length is 4 meters. If the...
Q1: An object is attached to a pendulum whose string length is 4 meters. If the ideal pendulum (neglect the mass of the string and the shape of the object) is displaced by an angle of 20 degree with respect to the vertical, and released from rest, what is its speed at its lowest location?
A pendulum consists of a 1.7-kg bob attached to a light 2.6-m-long string. While hanging at...
A pendulum consists of a 1.7-kg bob attached to a light 2.6-m-long string. While hanging at rest with the string vertical, the bob is struck a sharp horizontal blow, giving it a horizontal velocity of 5.0 m/s. At the instant the string makes an angle of 28° with the vertical, calculate the following (a) the speed m/s (b) the gravitational potential energy (relative to its value is at the lowest point) (c) the tension in the string? (d) What is...
A pendulum consists of a 2.5-kg bob attached to a light 1.2 m-long string. While hanging...
A pendulum consists of a 2.5-kg bob attached to a light 1.2 m-long string. While hanging at rest with the string vertical, the bob is struck a sharp horizontal blow, giving it a horizontal velocity of 3m/s. At the instant the string makes an angle of 38 degree with the vertical, what is The speed, The tension in the string? What is the angle of the string with the vertical when the bob reaches its greatest
One end of a cord is fixed and a 0.5 kg object is attached to the...
One end of a cord is fixed and a 0.5 kg object is attached to the other end, where it swings in a vertical circular motion of radius 2 m. When the angle is 20 degree, the speed of the object is 8 m/s. At this instant find the tension in the string, and the radial acceleration.
A mass m = 4 kg hangs on the end of a massless rope L =...
A mass m = 4 kg hangs on the end of a massless rope L = 1.91 m
long. The pendulum is held horizontal and released from rest.
1)
How fast is the mass moving at the bottom of its path?
m/s
2)
What is the magnitude of the tension in the string at the bottom
of the path?
N
3)
If the maximum tension the string can take without breaking is
Tmax = 337 N, what is the maximum...
A 1.9-kg ball is attached to the end of a 2.6-m string to form a pendulum....
A 1.9-kg ball is attached to the end of a 2.6-m string to form a pendulum. This pendulum is released from rest with a string horizontal. At the lowest point in its swing when it is moving horizontally, the ball collides elastically with a 2.5-kg block initially at rest on a horizontal frictionless surface. What is the speed of the block just after the collision? Show all the important physics steps.
A 1 kg solid ball is attached to the end of a 3 m string to...
A 1 kg solid ball is attached to the end of a 3 m string to form a pendulum. This pendulum is released from rest from a horizontal position. At the lowest point in it's swing the ball collides with a cylinder of radius 20 cm and 2 kg mass that is at rest on a horizontal surface. (a) (20 points) What is the linear velocity of the cylinder right after the collision with the pendulum. (b) (10 points) Considering...
A 0.60-kg object is suspended from the ceiling at the end of a 2.0-m string. When pulled to the side and released, it has a speed of 4.0 m/s at the lowest point of its path. What maximum angle does the string make with the vertical as the object swings up? 47 degree 54 degree 61 degree 69 degree 77 degree
A pendulum consists of a 2.2-kg bob attached to a light 2.0-m-long string. While hanging at rest with the string vertical, the bob is struck a sharp horizontal blow, giving it a horizontal velocity of 4.5 m/s. At the instant the string makes an angle of 27 degree with the vertical, calculate the following: (a) the speed m/s (b) the gravitational potential energy (relative to its value is at the lowest point) J (c) the tension in the string? N...
3.0 m 7. A 3.0-kg is attached to the end of a 3.0-m long string. It is held in the horizontal position (as shown) and released. a) What is the speed of the mass as it passes through the lowest position? b) What is the tension in the string as it passes through the lowest position?
A pendulum consists of a 1.7-kg bob attached to a light 2.6-m-long string. While hanging at rest with the string vertical, the bob is struck a sharp horizontal blow, giving it a horizontal velocity of 5.0 m/s. At the instant the string makes an angle of 28° with the vertical, calculate the following (a) the speed m/s (b) the gravitational potential energy (relative to its value is at the lowest point) (c) the tension in the string? (d) What is...
A pendulum consists of a 2.5-kg bob attached to a light 1.2 m-long string. While hanging at rest with the string vertical, the bob is struck a sharp horizontal blow, giving it a horizontal velocity of 3m/s. At the instant the string makes an angle of 38 degree with the vertical, what is The speed, The tension in the string? What is the angle of the string with the vertical when the bob reaches its greatest
One end of a cord is fixed and a 0.5 kg object is attached to the other end, where it swings in a vertical circular motion of radius 2 m. When the angle is 20 degree, the speed of the object is 8 m/s. At this instant find the tension in the string, and the radial acceleration.
A 1.9-kg ball is attached to the end of a 2.6-m string to form a pendulum. This pendulum is released from rest with a string horizontal. At the lowest point in its swing when it is moving horizontally, the ball collides elastically with a 2.5-kg block initially at rest on a horizontal frictionless surface. What is the speed of the block just after the collision? Show all the important physics steps.
A 1 kg solid ball is attached to the end of a 3 m string to form a pendulum. This pendulum is released from rest from a horizontal position. At the lowest point in it's swing the ball collides with a cylinder of radius 20 cm and 2 kg mass that is at rest on a horizontal surface. (a) (20 points) What is the linear velocity of the cylinder right after the collision with the pendulum. (b) (10 points) Considering...
