Question

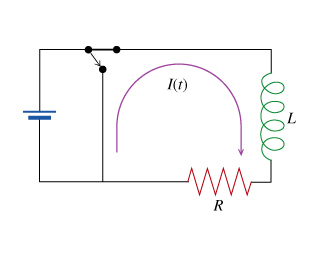

Decay of Current in an L-R Circuit

a) After t=0, what happens to the voltage V(t) across the inductor and the current I(t) through the inductor relative to their values prior tot=0?
V changes slowly and Ichanges abruptly.
I changes slowly and Vchanges abruptly.
Both changeslowly.
Both changeabruptly.
b) What is the differential equation satisfied by the currentI(t) after time t=0?Express frac{dI(t)}{dt} in terms ofI(t), R,and L.c) What is the expression forI(t) obtained by solvingthe differential equation thatI(t) satisfies aftert=0?d) What is the time constanttau of this circuit?
0 0
Add a comment Improve this question Transcribed image text
✔ Recommended Answer
Answer #1

This video explains it https://youtu.be/WzXWQ0khsMk !!

answered by: Super Cool School
Add a comment
