A thin spherical shell made of plastic and Two large thin disks made of glass
A thin spherical shell made of plastic carries a uniformly distributed negative charge-7e-10coulombs (indicated as-Q1in the diagram). Two large thin disks made of glass carry uniformly distributed positive and negativecharges1.7e-05coulombs and -1.7e-05coulombs (indicated as +Q2and-Q2in the figure). The radiusR1of the plasticspherical shell is7mm, and the radiusR2of the glass disksis4meters. The distancedfrom the center of the spherical shell to the positive diskis18mm.

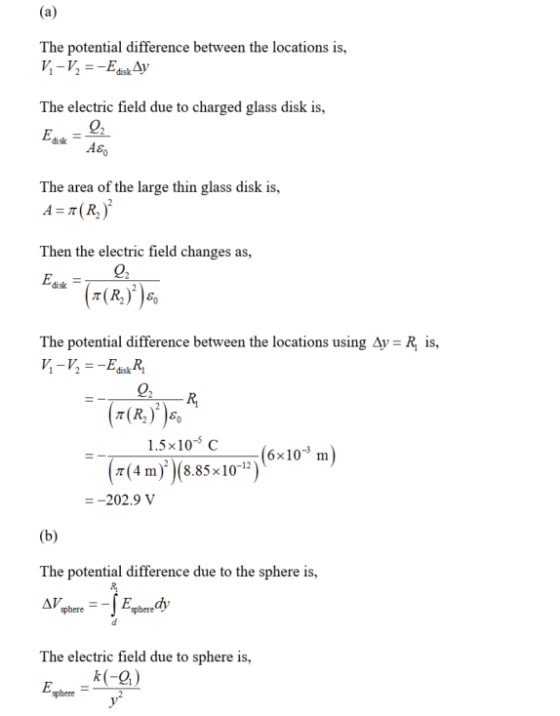

(a) Find the potential differenceV1-V2. Point 1 is at the center of the plastic sphere, and point 2 is just outside thesphere.
____volts

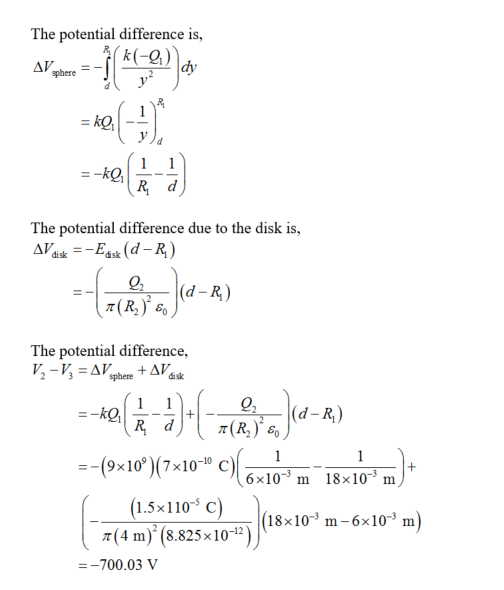

(b) Find the potential differenceV2-V3. Point 2 is just below the sphere, and point 3 is right beside the positive glassdisk.
____ volts
Remember that the sign of the potential difference is important.
Homework Answers
Add Answer to:
A thin spherical shell made of plastic and Two large thin disks made of glass
-02 R1 << R2 R2 (not to scale) A thin spherical shell made of plastic carries...
-02 R1 << R2 R2 (not to scale) A thin spherical shell made of plastic carries a uniformly distributed negative charge -6e-10 coulombs (indicated as -Q1 in the diagram). Two large thin disks made of glass carry uniformly distributed positive and negative charges 1.1e-05 coulombs and -1.1e-05 coulombs (indicated as +Q2 and -Q2 in the figure). The radius R1 of the plastic spherical shell is 7 mm, and the radius R2 of the glass disks is 4 meters. The distance...
A thin spherical shell has radius 25 cm and a charge 8 nC distributed uniformly over...
A thin spherical shell has radius 25 cm and a charge 8 nC distributed uniformly over its surface. What is the potential at the center of the sphere?
A thin spherical shell with radius R1 = 4.00 cm is concentric with a larger thin...
A thin spherical shell with radius R1 = 4.00 cm is concentric with a larger thin spherical shell with radius R2 = 7.00 cm . Both shells are made of insulating material. The smaller shell has charge q1=+6.00nC distributed uniformly over its surface, and the larger shell has charge q2=−9.00nC distributed uniformly over its surface. Take the electric potential to be zero at an infinite distance from both shells. What is the magnitude of the potential difference between the surfaces...
A thin spherical shell with radius R1 = 4.00 cm is concentric with a larger thin...
A thin spherical shell with radius R1 = 4.00 cm is concentric with a larger thin spherical shell with radius 6.00 cm . Both shells are made of insulating material. The smaller shell has charge q1=+6.00nC distributed uniformly over its surface, and the larger shell has charge q2=−9.00nC distributed uniformly over its surface. Take the electric potential to be zero at an infinite distance from both shells. a)What is the electric potential due to the two shells at the following...
An isolated thin spherical conducting shell of radius R has charge Q uniformly distributed on its...
An isolated thin spherical conducting shell of radius R has charge Q uniformly distributed on its surface. Write the results in terms of k, Q and R. (a) Find the electric field at a distance, r = 2R from the center of the sphere. (b) What is the electric field at the center of the conducting sphere? What is the electric field inside the conducting sphere? Please explain the steps and formuals. Mandatory !!!
A thin metallic spherical shell of radius 40.6 cm has a total charge of 5.35 mu...
A thin metallic spherical shell of radius 40.6 cm has a total charge of 5.35 mu C uniformly distributed on it. At the center of the shell is placed a point charge of 3.83 mu C. What is the electric field at a distance of 16.4 cm from the center of the spherical shell?
A thin metallic spherical shell of radius 43.1 cm has a total charge of 5.65 μC uniformly distributed on it. At the cen...
A thin metallic spherical shell of radius 43.1 cm has a total charge of 5.65 μC uniformly distributed on it. At the center of the shell is placed a point charge of 1.73 μC. What is the electric field at a distance of 23.9 cm from the center of the spherical shell?
A thin metallic spherical shell of radius 46.6 cm has a total charge of 9.05 C...
A thin metallic spherical shell of radius 46.6 cm has a total charge of 9.05 C uniformly distributed on it. At the center of the shell is placed a point charge of 5.03 uC. What is the magnitude of the electric field at a distance of 19.4 cm from the center of the spherical shell? What is the direction of the electric field? N/C O outward inward directionless O
-02 R1 << R2 R2 (not to scale) A thin spherical shell made of plastic carries a uniformly distributed negative charge -6e-10 coulombs (indicated as -Q1 in the diagram). Two large thin disks made of glass carry uniformly distributed positive and negative charges 1.1e-05 coulombs and -1.1e-05 coulombs (indicated as +Q2 and -Q2 in the figure). The radius R1 of the plastic spherical shell is 7 mm, and the radius R2 of the glass disks is 4 meters. The distance...
A thin metallic spherical shell of radius 40.6 cm has a total charge of 5.35 mu C uniformly distributed on it. At the center of the shell is placed a point charge of 3.83 mu C. What is the electric field at a distance of 16.4 cm from the center of the spherical shell?
A thin metallic spherical shell of radius 46.6 cm has a total charge of 9.05 C uniformly distributed on it. At the center of the shell is placed a point charge of 5.03 uC. What is the magnitude of the electric field at a distance of 19.4 cm from the center of the spherical shell? What is the direction of the electric field? N/C O outward inward directionless O
