An EDM instrument has a purported accuracy capability of ±(3.0 mm + 0.5 ppm). (Assume that the in...

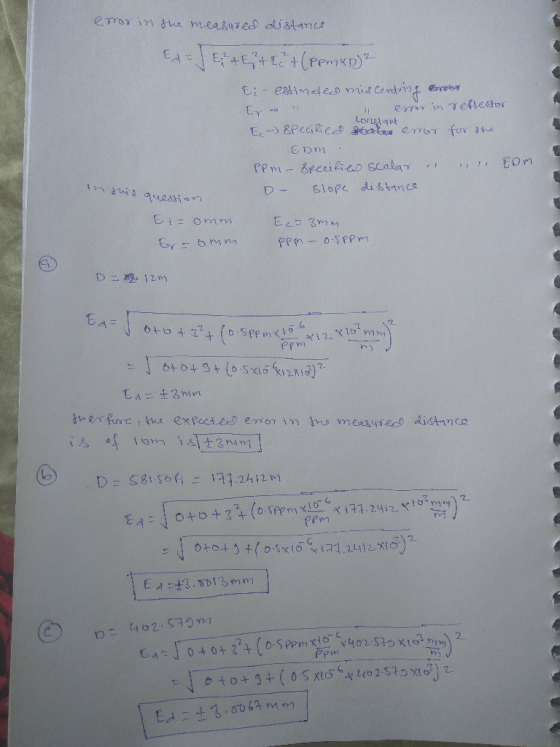

An EDM instrument has a purported accuracy capability of ±(3.0 mm + 0.5 ppm). (Assume that the instrument and target miscentering errors are equal to zero.)
A.
What error can be expected in a measured distance of 12 m?
Express your answer to three significant figures and include the appropriate units.
b. What error can be expected in a measured distance of 581.50 ft?
c.What error can be expected in a measured distance of 402.579 m?
