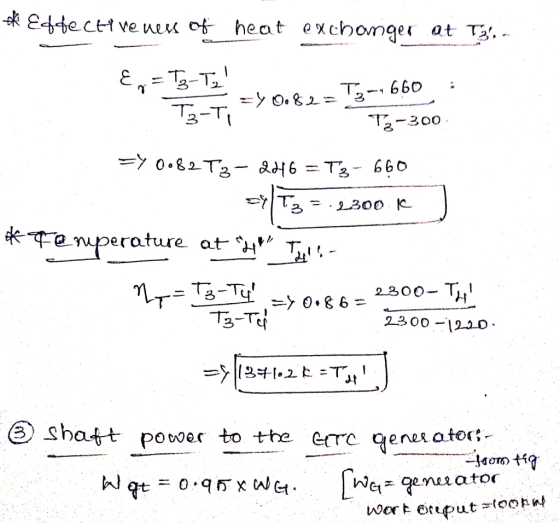

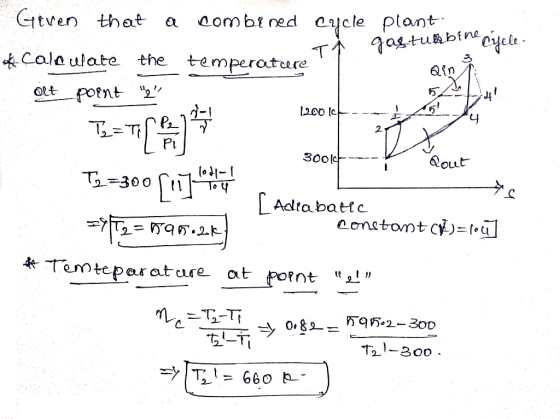

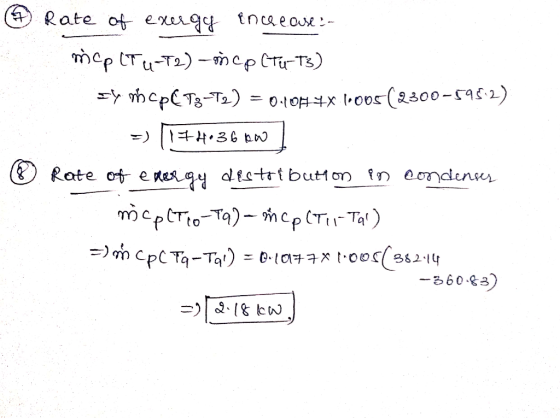

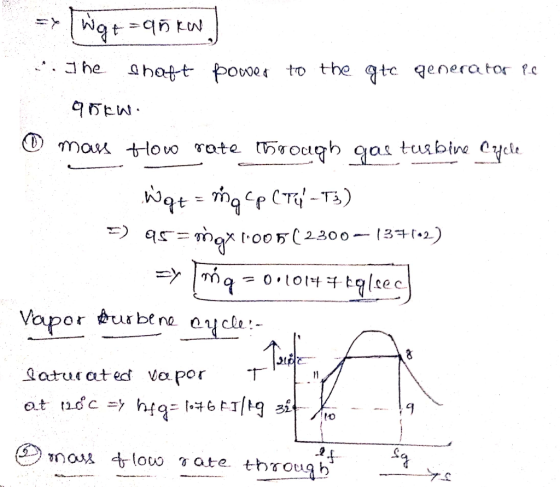

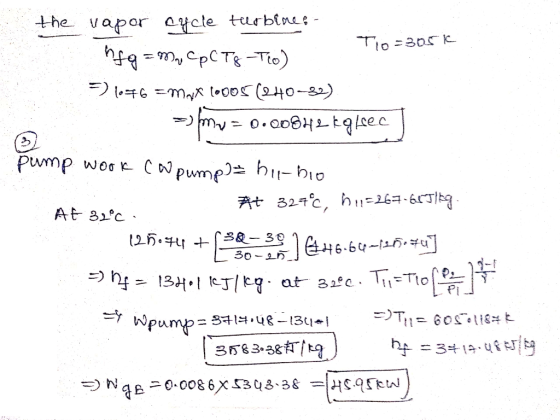

WGTC η.cn = 95% Gas turbine cycle (GTc) e,I = 100 kW Compressor Turbine Generator 께,- Combustor ...
1. (10 points) A combined gas turbine-vapor power plant has a net power output of 45 MW. Air enters the compressor of the gas turbine at 100 kPa, 300 K, and is compressed to 1200 kPa. The isentropic efficiency of the compressor is 84%. The condition at the inlet to the turbine is 1200 kPa, 1400 K. Air expands through the turbine, which has an isentropic efficiency of 88%, to a pressure of 100 kPa. The air then passes through...
please solve the problem, it is thermo-design problem,
please do in details, thank you
Combustor Gas turbine :Compressor- Turbine Air inlet- 7 Heat-recovery steam generator Turbine Vapor cycle W) Pump Condenser Cooling water Figure 1: Combined gas turbine-vapor power plant Consider Figure 1 above. The following information is given a. p- 14.7 psia, T 540 °R b. P/p1 12.0 С. Т,-2500,"R d, P,-14.7 psia, Ts-700. "R (Rankine) e. P 1000. psia f. P 1.00 psia, x>0.85 or superheated The isentropic...
1. A combined gas-steam power cycle uses a single gas turbine
cycle for the air cycle and a simple Rankine cycle for the water
vapor cycle. Atmospheric air enters the compressor at a rate of
88.2 lbm / s, at 14.7 psia and 59 ° F, and the maximum gas cycle
temperature is 1,742 ° F. The pressure ratio in the compressor is
7. The isentropic efficiency of both the compressor and the turbine
is 80%. Gas exits the heat...
A combined cycle gas turbine/vapor power plant uses the turbine exhaust as the energy source for the boiler. Each power system uses a single turbine. The gas power system is modeled as an ideal air-standard Brayton cycle. The vapor power system is modeled as an ideal Rankine cycle. Given specific operating conditions determine the temperature and pressure at each state, the rate of heat transfer in the boiler, the power output of each turbine, and the overall efficiency. --Given Values--...
The gas turbine cycle of a gas-steam combined cycle power plant has a pressure ratio of 12. The air enters the compressor at 310 K and 100 kPa (1) and the turbine at 1400 K (3). The combustion gases leaving the gas turbine (4) are used to heat the steam to 12.5 MPa up to 500 °C (6) in a heat exchanger. The flue gas exits the heat exchanger (5) at 247 °C. The steam is expanded in a high...
A combined cycle gas turbine / vapor power plant uses the turbine exhaust as the energy source for the boiler. Each power system uses a single turbine. The gas power system is modeled as an ideal air-standard Brayton cycle. The vapor power system is modeled as an ideal Rankine cycle. Given specific operating conditions determine the temperature and pressure at each state, the rate of heat transfer in the boiler, the power output of each turbine, and the overall efficiency....
A combined gas turbine-vapor power plant has a net power output of 100 MW. Air enters the compressor of the gas turbine at 100kPa, 300K, and is compressed to 1200kPa. The isentropic efficiency of the compressor is 84%. The conditions at the inlet to the turbine are 1200kPa and 1400 K. Air expands through the turbine, which has an isentropic efficiency of 88%, to a pressure of 100kPa. The air then passes through the interconnecting heat exchanger, and is finally...
A combined cycle power plant has a net power output of 272 MW. Air enters the compressor of the Brayton cycle at 100 kPa and 17oC. The pressure ratio is 19, the turbine inlet temperature is 1660 K and the gases leaving the turbine are used to heat the steam of the Rankine cycle to 600oC and 5 MPa. The combustion gas leaves the heat exchanger (HRSG) at 390 K and the condenser pressure is 20 kPa. The isentropic efficiency...
Thermodynamics
1. Saturated liquid H20 at 16 MPa is fed into the boiler of a variant of a Carnot cycle (but simplified Rankin cycle) where the working fluid is not an ideal gas. Saturated H20 vapor is fed into the turbine of the same turbine. The condenser of this turbine is operated at 8 kPa. The mass flowrate of the H20 in this cycle is 7.2x103 kg/min. Draw the path of this process on T-s diagram. Estimate the thermal efficiency...
2. (10 points) An ideal vapor-compression refrigeration cycle is modified to include a counter- flow heat exchanger, as shown below. Ammonia leaves the evaporator as saturated vapor at 1.0 bar and is heated at constant pressure to 5 "C before entering the compressor. Following isentropic compression to 18 bar, the refrigerant passes through the condenser, exiting at 40 C, 18 bar. The liquid then passes through the heat exchanger, entering the expansion valve at 18 bar. If the mass flow...
