The car travels at a constant speed on a circular banked track. The maximum possible speed of the...

Question

Question

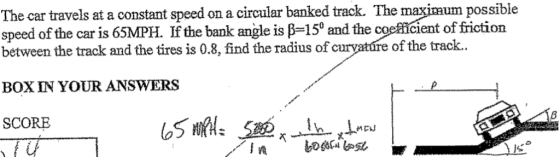

The car travels at a constant speed on a circular banked track. The maximum possible speed of the car is 65MPH. If the bank a

engineering Mechanical-Engineering

Answer 1

Answer #1

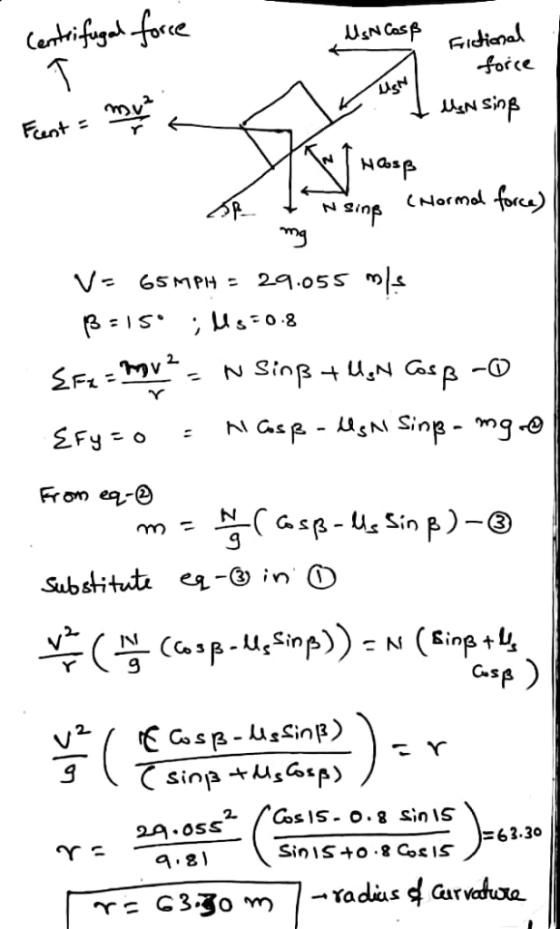

-force Hd.s Fron ea-e Substitut eg-o in INI 2. 29.OSS 63.30

Answer 2

Similar Homework Help Questions

A car travels around flat, un-banked, circular track with a maximum speed of 20 m/s. If...

A car travels around flat, un-banked, circular track with a maximum speed of 20 m/s. If the coefficient of friction between the car tires and the track is 1.0, and the normal force between the car and the track is due to the weight of the car (no aerodynamic effects), what is the radius of the track?
3. A racecar drives along a circular track of radius 55m at a constant speed. The...

3. A racecar drives along a circular track of radius 55m at a constant speed. The curve is banked 30 and the coefficient of static friction between the car and the tires is . ° μ .7 s = 0 a. Without knowing the speed of the car, is it possible to know what the direction of friction is? Explain your reasoning. b. What is the maximum speed the car can go without skidding?
A car travels at 24m/s around a banked circular track having an angle of 53 degrees....

A car travels at 24m/s around a banked circular track having an angle of 53 degrees. If you ignore friction. What is the radius of the circular track

Derive the maximum possible speed of a car at NASCAR track. Mass of the car is...

Derive the maximum possible speed of a car at NASCAR track. Mass of the car is m, the tilt angle of the track is θ, coefficient of static friction is µs. Radius of the track is R
A test driver attempts to drive a car with constant speed around a horizontal circular track...

A test driver attempts to drive a car with constant speed around a horizontal circular track of radius R = 200 m. The coefficient of static friction of the tires perpendicular to the direction in which the car is traveling is µs = 0.05. Give the shortest possible lap time the driver can achieve.
A car travels at a constant speed of 32.5 mi/h (14.5 m/s) on a level circular...

A car travels at a constant speed of 32.5 mi/h (14.5 m/s) on a level circular turn of radius 49.0 m, as shown in the bird's-eye view in figure a. What minimum coefficient of static friction, μs, between the tires and the roadway will allow the car to make the circular turn without sliding? 1 ) make the circular turn without sliding? 2 ) At what maximum speed can a car negotiate a turn on a wet road with coefficient...

P6 A car travels around a circular track at constant speed, as shown. It is observed...

P6 A car travels around a circular track at constant speed, as shown. It is observed that the car takes 15.71 seconds to go from point A to point B along the track (exactly a quarter circle). An accelerometer mounted on the car shows that its acceleration has a constant magnitude of 7.0 m/s2. Please answer each of the following questions. For answers that require vectors, refer to the instant shown in the figure. a) What is the radius of...
P6 A car travels around a circular track at constant speed, as shown. It is observed...

P6 A car travels around a circular track at constant speed, as shown. It is observed that the car takes 15.71 seconds to go from point A to point B along the track (exactly a quarter circle). An accelerometer mounted on the car shows that its acceleration has a constant magnitude of 7.0 m/s2. Please answer each of the following questions. For answers that require vectors, refer to the instant shown in the figure. a) What is the radius of...
An 800. kg racecar travels on a flat circular track of radius 250 m. Assuming the...

An 800. kg racecar travels on a flat circular track of radius 250 m. Assuming the car moves with a constant speed of 45.0 m/s, find (a) its angular speed, (b) the magnitude and direction of its acceleration, and (c) the minimum static coefficient of friction, between the tires and the road, that keeps the car from slipping.

A car is travelling at a flat circular track of radius 25 m and tries to...

A car is travelling at a flat circular track of radius 25 m and tries to go around at 40 m/sec. a) What should the coefficient of static friction be so the car won’t skid? b) Assume the same car is now travelling at a banked circular track at angle 25o , r=25 m and with same speed. What’s the value of the coefficient of static friction in order for the car not to slide down? c) What would the...
